SKU: IMP-SCA-SCA-OS2-DX-01M-P

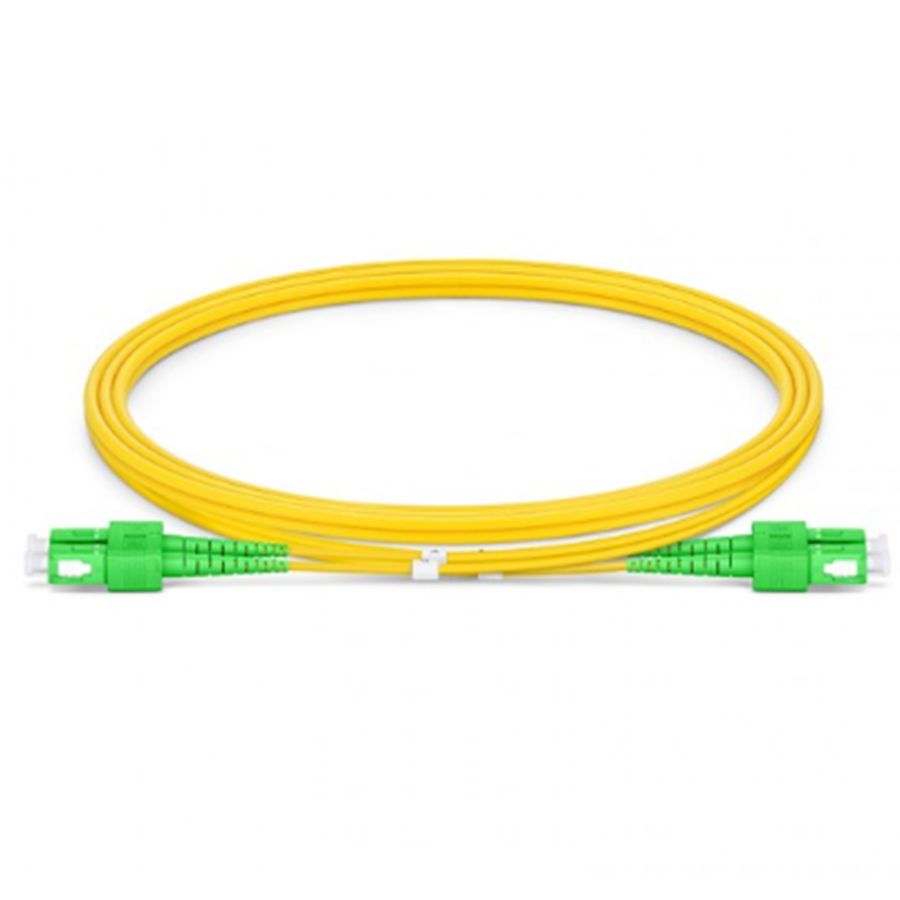

OS2 SC APC to SC APC 2.00mm Singlemode Duplex Fiber Optic Cable 1 Meter (3ft) Yellow
OS2 SC-SC APC Singlemode Fiber Optic Patch Cables - Yellow
IMP-SCA-SCA-OS2-DX-01M-P
Per unit · USD
Volume pricing
| Quantity | Unit price | Savings |
|---|---|---|
| 1–99 | $6.46 | List price |
| 100–249 | $5.81 | Save 10% |
| 250–499 | $5.17 | Save 20% |
| 500+ | $4.52 | Save 30% |
Need a different length, gauge, or connector?Build a custom cord →
Currently out of stock
Get notified the moment OS2 SC APC to SC APC 2.00mm Singlemode Duplex Fiber Optic Cable 1 Meter (3ft) Yellow is back.
One email when restocked. No marketing — unsubscribe link included.
B2B & OEM services
✓Volume pricing & NET terms — breaks start at 10 units
✓BOM partner for OEMs — we work from your spec sheet
✓Approvals expert — UL, CSA, CE, RoHS support available
Hi-pot tested
Every cord we build is hi-pot and continuity tested.
Engineering-led
In-house engineering and compliance set the procedures.
Ships same day
In-stock orders out of East Windsor, CT before 3pm ET.
30-day returns
Plus lifetime workmanship warranty.
| Length | 3 Feet |
| Color | Yellow |
Length
| 3 Feet | 3 Feet |
Cable End 1
| SC APC Fiber Optic Male | SC APC Fiber Optic Male |
Cable End 2
| SC APC Fiber Optic Male | SC APC Fiber Optic Male |
Fiber Type
| Bend Insensitive Single Mode | Bend Insensitive Single Mode |
Polish
| APC to APC | APC to APC |
Insertion Loss
| ≤0.3dB | ≤0.3dB |
Return Loss
| ≥50dB | ≥50dB |
Minimum Bend Radius
| 30mm | 30mm |
Jacket Outer Diameter
| 2.0mm | 2.0mm |
Fiber Count
| Duplex | Duplex |
Jacket Color
| Yellow | Yellow |
Jacket Material
| PVC | PVC |
Attenuation at 1310 nm
| 0.36 dB/dm | 0.36 dB/dm |
Attenuation at 1550 nm
| 0.222 dB/dm | 0.222 dB/dm |
Polarity
| A(Tx) to B(Rx) | A(Tx) to B(Rx) |
Color
| Yellow | Yellow |
Physical
| weight lbs | 0.04 |
- Download PDF
Spec sheet (PDF)
Generated specification sheet for this part number
