Anderson Power SAF-D-GRID Power Cords - SDG 400 AC/DC

15–25 Amps250–600 voltsSaf-D-Grid 400V (Connector)ULRoHSREACHCCC

Reference guide:Saf-D-Grid power connector guide →

29

configurations

Not sure which cord you need?

Answer a few quick questions and we’ll narrow it down for you.

Match by picture

About Anderson Power SAF-D-GRID Power Cords - SDG 400 AC/DC

Saf-D-Grid power cords are rated for both AC and DC use and are primarily used in Data Centers to power Cisco, Arista, and other switching devices.


  • Meets International safety requirements for hazardous, low voltage applications including UL 950 and IEC 60950
  • Allows for greater density of power by letting up to 600V DC and 40A or AC in the same space of IEC 320 C13/14 systems that have limits of 10A to 250 VAC
  • Saf-D-Grid® 400V targets DC applications but is also rated for AC current with a single keying configuration
  • Saf-D-Grid® 300V targets AC applications and is rated for DC with multiple mechanical keys
Related collectionsExtension cords 120IEC 60309 634Pin & Sleeve Devices 267IEC 60320 452IEC320 Adapters 21IEC 60320 Power Cords 1,092

The plugs and connectors in this collection

What each end is, what it mates with, and where to find every cord built on it.

  • Saf-D-Grid 400V (Connector) connector

    Connector

    Saf-D-Grid 400V (Connector)

    • 16 Amps
    • 400V

    On 29 of the cords here

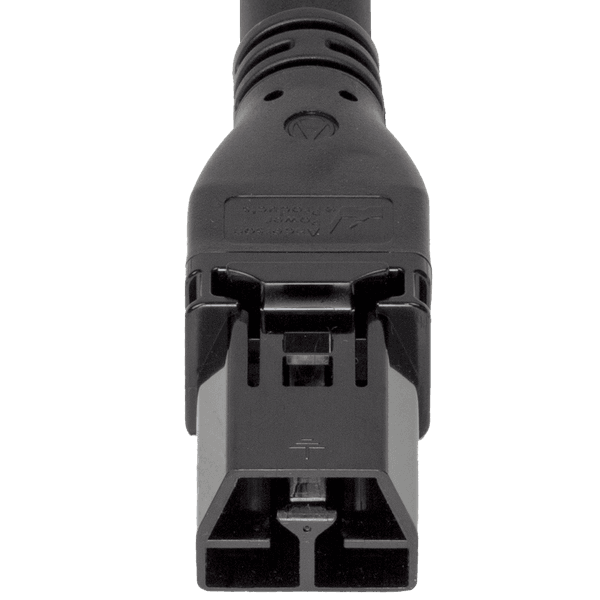

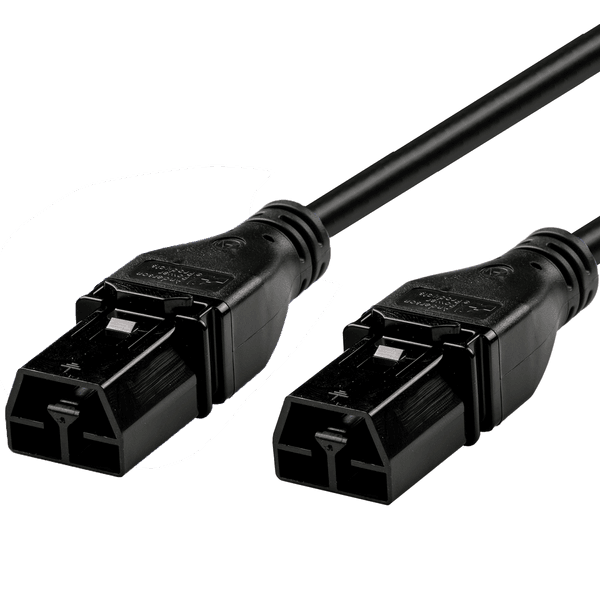

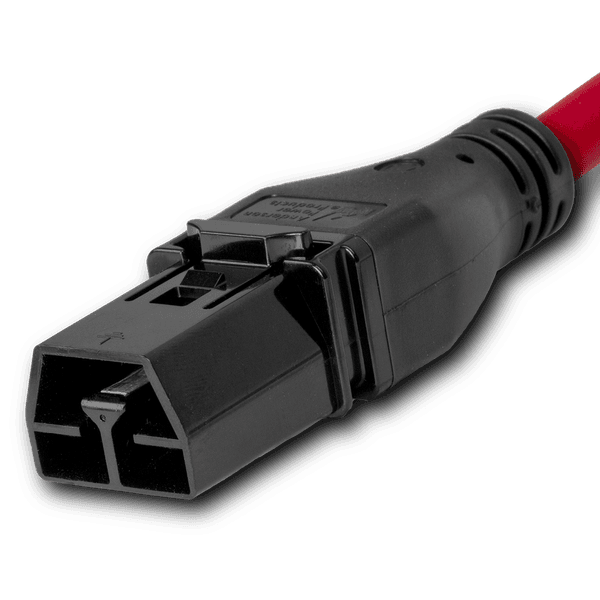

    The Saf-D-Grid 400V Connector is rated for 400VAC and 16 Amps of power. It mates with the matching Saf-D-Grid 400V Inlet located on various data center equipment. This is the highest power rated connector for the footprint of an IEC 60320 connector.

    Mates with Saf-D-Grid 400V Inlet

    You are on the Saf-D-Grid 400V (Connector) family page.

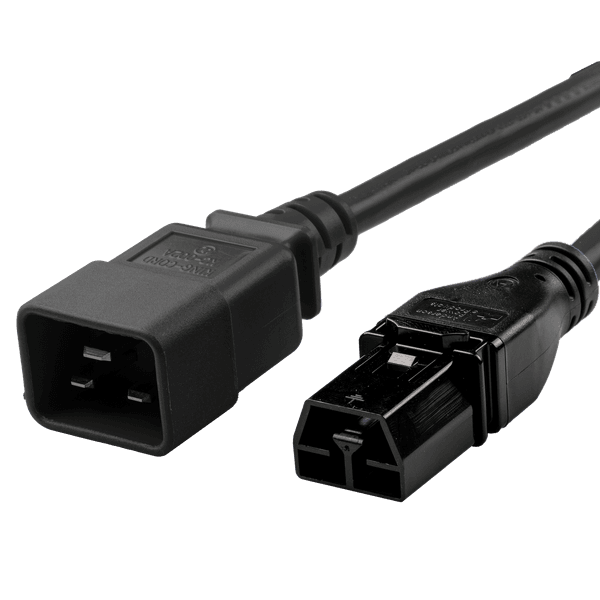

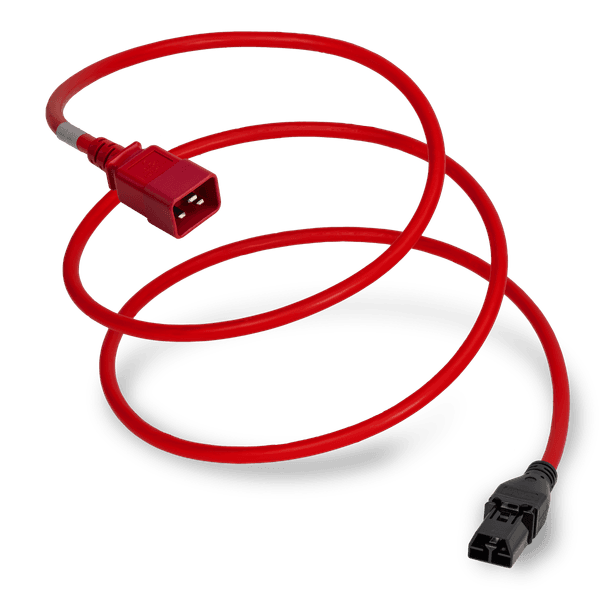

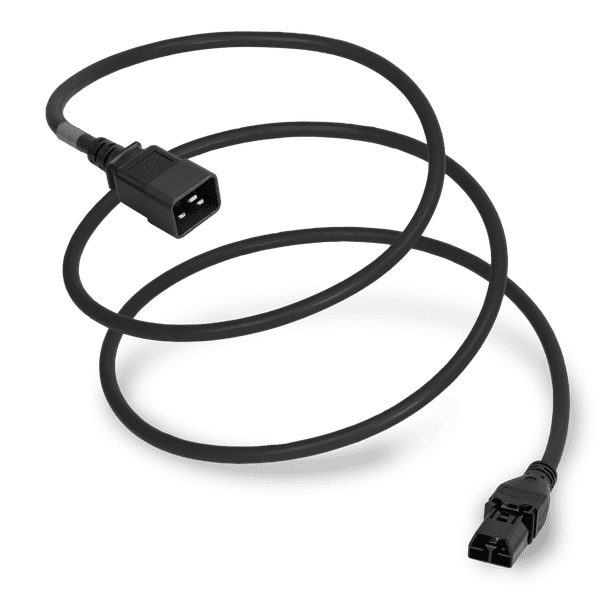

  • IEC 60320 C20 plug

    Plug · IEC 60320

    IEC 60320 C20

    • 20 Amps
    • 250 volts

    On 21 of the cords here (72%)

    The IEC 60320 C20 is a grounded 3 Wire Plug rated up to 250V and 20 Amps. The C20 mates with a C19 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C20 is in a jumper cable scenario, providing power from a PDU to a blade server chassis, high powered server, large network router, or similar device.

    Mates with IEC 60320 C19 Outlet

    Shop all IEC 60320 C20 C19 Power Cords →

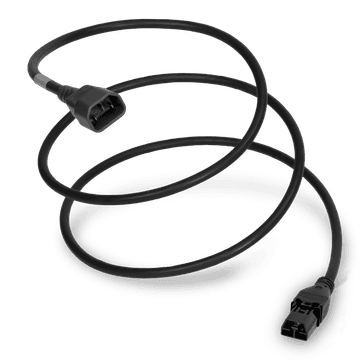

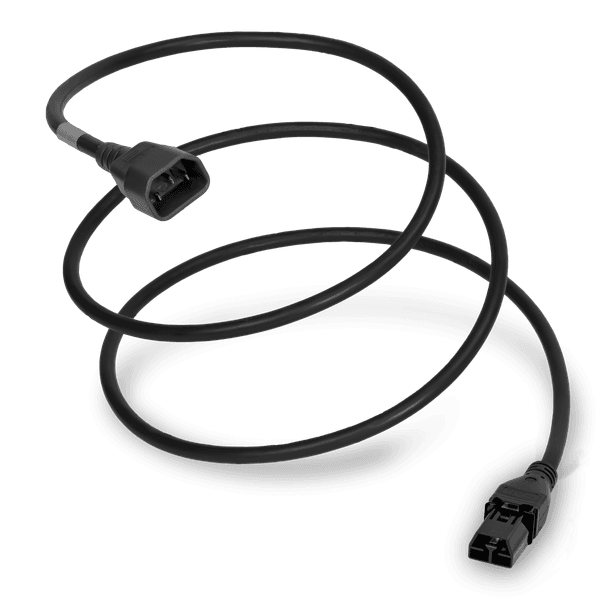

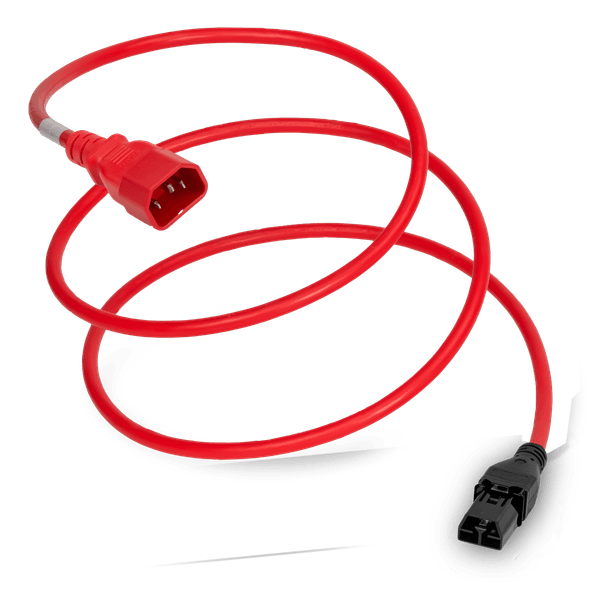

  • IEC 60320 C14 plug

    Plug · IEC 60320

    IEC 60320 C14

    • 15 Amps
    • 250 volts

    On 7 of the cords here (24%)

    The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 mates with a C13 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C14 is in a jumper cable scenario, providing power from a PDU to IT Equipment.

    Mates with IEC 60320 C13 Outlet

    Shop all IEC 60320 C14 C13 Power Cords →

About Anderson Power SAF-D-GRID Power Cords - SDG 400 AC/DC

World Cord Sets supplies anderson power saf-d-grid power cords - sdg 400 ac/dc from our East Windsor, Connecticut headquarters, with manufacturing across US and overseas facilities. Cords are tested and certified to spec before shipment. We stock 29+ configurations and build custom cords to order — hand-terminated builds from in-stock components typically ship in 3–4 business days. In-stock orders placed by 2:30 PM ET ship the same day from our Connecticut warehouse.

Current rating

15–25 Amps

Voltage rating

250–600 volts

Connector (female end)

Saf-D-Grid 400V (Connector)

Certifications & compliance

  • UL
  • RoHS
  • REACH
  • CCC
  • Every cord we build is hi-pot tested
  • Same-day shipping by 2:30 PM ET
  • NET 30/60/90 for approved accounts
  • In-house engineering and compliance support

Frequently asked questions

What is the difference between the two types of Anderson Saf-D-Grid connectors?
There are two primary types of Saf-D-Grid Connectors, the 300VAC and the 400V options. The Saf-D-Grid 400V is often used in the capacity of power cables. Each type has its own respective design that cannot be cross-connected to access power from the other type. This superior design allows for the connection points to be concealed to prevent any arching or electrical shorts, while also preventing any male-to-male short circuit connections from occurring.
What are common applications for the Anderson Saf D Grid 400 Cables?
There are many different applications for this robust and powerful connection type, from Telecommunications to Photovoltaic to Data Centers. Our Area of expertise is based in the Data Center space, so here are some of the common products that our customers use these cables with. Cisco NCS 5000 Routers: Routers like the NCS-5001, and others in the 5000 series have a 400V inlet for these cables. Power Supply Units: Various Nexus PSUs like NXA-PHV-1100W use the 400V Inlet to supply power to this machine. Nexus 9000 Switches: High Powered switches like the N9K-C9232C-ZZ-PE utilize the superior power delivery of the Anderson product line.
