Locking Data Center Power Cables
552
configurations
Locking power cables for data center power distribution
Throughout the years, as the Internet grew in popularity along with society's dependency on it, solutions were invented to reduce the possibility of having down times or malfunctions in the hardware that facilitates the internet. One of these innovations was locking mechanisms for the power supply cables that power each individual piece of hardware in data centers. Many different solutions exist for both proprietary specific and universal locking solutions.
Data center design for power distribution to data center hardware
The primary function of power cables in the data center space, is connecting power from the rack mounted PDU to the rack-mounted hardware such as servers and switches. With all of the expensive precautions taken elsewhere in the design to eliminate possible error, the few added dollars per cable is easily justified to eliminate a weak chain link in the operation of the Data Center. Considering most Data Centers use thousands of these power connection points, the probability of one of them unplugging accidentally warrants the added technology.
Choosing the right locking IEC power cable & locking power connector
If you are still considering which power cables will be utilized in your stack you have come to the right place, we offer thousands of Locking Configurations with the most competitive pricing in the industry. The locking solution you choose will depend on the Power Distribution Unit in the stack, as the majority of Locking Solutions are designed to function with specific brands. To learn more about the brands that we stock and partner with, refer to our Browse Tab.
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
In stock (25)Color — Black
Length — 2 Feet
In stock (170)Color — Black
Length — 1 Foot
In stock (156)Color — Blue
Length — 1.5 Feet
- In stock (836)
Color — Black
Length — 1.5 Feet
Made to orderColor — Black
Length — 1.5 Feet
In stock (227)Color — Black
Length — 2 Feet
In stock (399)Color — Black
Length — 3 Feet
In stock (302)Color — Red
Length — 1 Foot
Made to orderColor — Black
Length — 1 Foot
C14 → S-Lock C15
Made to orderColor — Black
Length — 2 Feet
In stock (240)Color — Black
Length — 2 Feet
- Made to order
Color — Black
Length — 1 Foot
In stock (67)Color — Black
Length — 0.6 meter
In stock (74)Color — Black
Length — 1.5 Feet
Made to orderColor — White
Length — 3 Feet
In stock (360)Color — Black
Length — 3 Feet
Made to orderColor — Black
Length — 2 Feet
Made to orderColor — Red
Length — 0.6 meter
In stock (4)Color — Blue
Length — 0.6 meter
In stock (2)Color — Black
Length — 6 Feet
Made to orderColor — Black
Length — 6 Feet
- Made to order
Color — Red
Length — 0.6 meter
In stock (12)Color — Black
Length — 2 Feet
Made to orderColor — Black
Length — 6 Feet
Made to orderColor — Black
Length — 1 Foot
In stock (308)Color — Red
Length — 0.6 meter
C20 → C19 S-Lock (Universal Locking)
Made to orderColor — Black
Length — 2 Feet
In stock (101)Color — Black
Length — 0.6 meter
In stock (129)12 AWG20 Amps250 voltsULcULRoHSColor — Red
Length — 2 Feet
Made to orderColor — Black
Length — 3 Feet
In stock (152)Color — Red
Length — 0.6 meter
Made to orderColor — Black
Length — 6 Feet
C14 → C13 S-Lock (Universal Locking)
Made to orderColor — Black
Length — 1 Foot
Made to orderColor — Black
Length — 1 Foot
Made to orderColor — White
Length — 3 Feet
Made to orderColor — White
Length — 6 Feet
Made to orderColor — Black
Length — 6 Feet
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Plug · IEC 60320

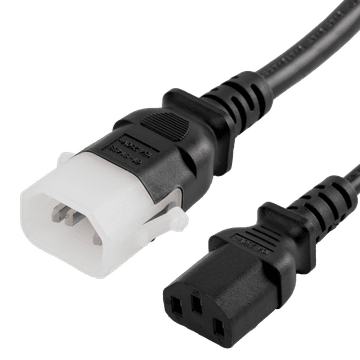

IEC 60320 C14 Locking (P-Lock)
- 15 Amps
- 125/250V
On 214 of the cords here (39%)
The IEC 60320 C14 P-Lock Plug is designed for use with ServerTech and Raritan data center PDUs. The locking tabs on each side prevent the plug head from nuisance unplugging by hooking into the PDU unit. The plug can easily be removed by pressing down on the tabs located on each side.
Mates with IEC 60320 C13 P-Lock Compatible PDU Outlet
Connector · IEC 60320
IEC 60320 C13
- 15 Amps
- 125/250V
On 146 of the cords here (26%)
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.
Mates with IEC 60320 C14 Inlet
Plug · IEC 60320
IEC 60320 C20 Locking (P-Lock)
- 20 Amps
- 125/250V
On 114 of the cords here (21%)
The IEC 60320 C20 P-Lock is rated for 20A and 250V and is specially made for connecting to ServerTech and Raritan Locking PDUs. The Plug locks into place by hooking into the plug outlet with the two tabs on each side of the Plug. The plug can easily be removed by pushing down on both tabs of the plug.
Mates with IEC 60320 C19 P-Lock Compatible PDU Outlet
Connector
IEC 60320 C13 S-Lock (Universal Locking)
- 15 Amps
- 125/250V
On 88 of the cords here (16%)
The IEC 60320 C13 S-Lock Connector is rated for 250VAC and 15Amps, and is designed to mate with the matching IEC 60320 C14 Inlet and Plug type. The S-Lock is a revolutionary rotary lock that can internally pinch the pins of the inlet by twisting the locking mechanism on the connector body. This is a universal locking mechanism, meaning that it will mate with any standard matching inlet.
Mates with IEC 60320 C14 Inlet
Plug · IEC 60320
IEC 60320 C14
- 15 Amps
- 250 volts
On 79 of the cords here (14%)
The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 mates with a C13 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C14 is in a jumper cable scenario, providing power from a PDU to IT Equipment.
Mates with IEC 60320 C13 Outlet
Connector · IEC 60320
IEC 60320 C19
- 20 Amps
- 125/250V
On 69 of the cords here (12%)
The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
Mates with IEC 60320 C20 Inlet
Related reading
How to reduce cost, standardize installations, and start creating value faster in your Data Center Installations
There are hundreds of companies out there that offer data center installation services, however, most of these companies come with a hefty p...
Data & Networking · 4 min read
How cabling your data center correctly can decrease cost, increase airflow, reduce energy consumption, and contribute to a highly available data center..
Cabling in data centers is a critical part of your overall infrastructure, without cables to connect each piece of equipment, your data cent...
Data & Networking · 4 min read
About Locking Data Center Power Cables
World Cord Sets supplies locking data center power cables from our East Windsor, Connecticut headquarters, with manufacturing across US and overseas facilities. Cords are tested and certified to spec before shipment. We stock 552+ configurations and build custom cords to order — hand-terminated builds from in-stock components typically ship in 3–4 business days. In-stock orders placed by 2:30 PM ET ship the same day from our Connecticut warehouse.
Current rating
10–20 Amps
Voltage rating
125–250 volts
Certifications & compliance
- UL
- cUL
- RoHS
- REACH
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What are the benefits of a locking cord?
- Assurance. With locking power cables, you have an additional layer of protection from your equipment seizing to function to help you lower chances of downtime. Consider every piece of equipment in a data center, each item will require a connection to the unit and to the power distribution unit ( not including redundant power supplies). Each of these connection points has the potential to loosen over time from equipment vibration, maintenance to nearby racks, and other circumstances. Locking power cables provide assurance against these innumerable connection points from disconnecting accidentally.
- What does the P-Lock Plug into?
- The P-Lock plug type was designed in partnership with Power Distribution Unit manufacturers to latch into outlets with a specific style. This is why the plug will only function as a locking plug with specific branded PDUs. These include PDUs made by Emerson Vertiv, GELU, Server Technology and Raritan.

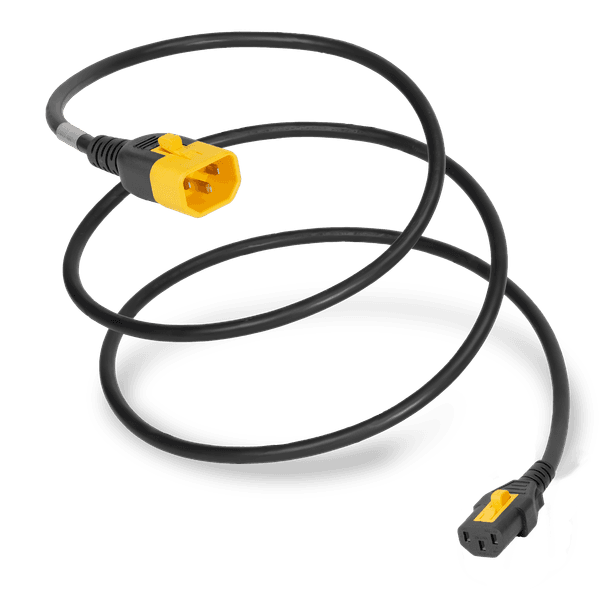

- What does the V-Lock Plug into?
- The V-Lock is designed to mate specifically with the APC AP8000 PDU series of Rack Mounted Power Distribution Units.
- Are locking cables available in all of the same colors that standard cords are offered in?
- Yes. We provide the broadest selection of locking power cables, this includes a wide variety of colors, wire gauges and plug to connector configurations.
- Are these able to be produced in custom lengths?
- Yes. We stock as many lengths as possible generally in 1 Foot increments, however upon request we can provide quotes for specific lengths. These will generally have MOQs associated to the quote for our factory to produce custom lengths.
