World Cord Sets

Extension Cords

NEMA, twist-lock, GFCI and international extension cords — same connector family on both ends, rated for the full amperage of the plug.

2.5–30 Amps125–250 voltsRoHSULcULIMQ

Reference guide:NEMA connector guide →

101

configurations

Not sure which cord you need?

Answer a few quick questions and we’ll narrow it down for you.

Match by picture
All 101 part numbers in Extension Cords — every color and length, one link each

About Extension Cords

An extension cord carries the same connector family on both ends — a NEMA 5-15P plug to a NEMA 5-15R receptacle, an L6-20P to an L6-20R, a Schuko plug to a Schuko connector — so it extends a circuit without changing it. Every cord here is rated for the full amperage and voltage of its plug: 15 A on 14 AWG, 20 A on 12 AWG, 30 A twist-lock on 10 AWG. Straight-blade cords for offices and shops, L-series twist-lock cords for equipment that must not unplug, GFCI cords for wet or outdoor work, and the international families for export builds.

Related collectionsSaf-D-Grid 29IEC 60309 634Pin & Sleeve Devices 267IEC 60320 452IEC320 Adapters 21IEC 60320 Power Cords 1,092

The plugs and connectors in this collection

What each end is, what it mates with, and where to find every cord built on it.

  • NEMA 5-15P plug

    Plug · NEMA

    NEMA 5-15P

    • 15 Amps
    • 125 volts

    On 27 of the cords here (27%)

    The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations.

    Mates with NEMA 5-15R Outlet

    Shop all 15A 125V NEMA 5-15P Power Cords →
  • NEMA 5-15R connector

    Connector

    NEMA 5-15R

    • 15 Amps
    • 125 volts

    On 23 of the cords here (23%)

    The NEMA 5-1R connector mates with a NEMA 5-15P plug (the standard plug used in residential homes in North America. Rated at 125V and 15amps. The NEMA 5-15R connector is typically used in an extension cord or a cable adapter.

    Mates with NEMA 5-15P Inlet

    Shop all NEMA 5-15 Extension Cord →
  • NEMA 5-20P plug

    Plug · NEMA

    NEMA 5-20P

    • 20 Amps
    • 125 volts

    On 8 of the cords here (8%)

    The NEMA 5-20P is a 3 Wire grounded plug featuring two blades and one ground pin rated up to 125V AC and 20 Amps. The NEMA 5-20P is used in applications that require higher power draw such as large refrigerators, space heaters,large kitchen mixers, etc. The 5-20R T-SLot receptacle allows you to plug in either a 5-20P or a 5-15P plug, allowing greater flexibility. In modern home installations, 5-20R T-Slot receptacles are often used when 20A circuits are installed due to flexibility of being downward compatable with the 5-15P.

    Mates with NEMA 5-20R Outlet

    Shop all NEMA 5-20P Power Cords →

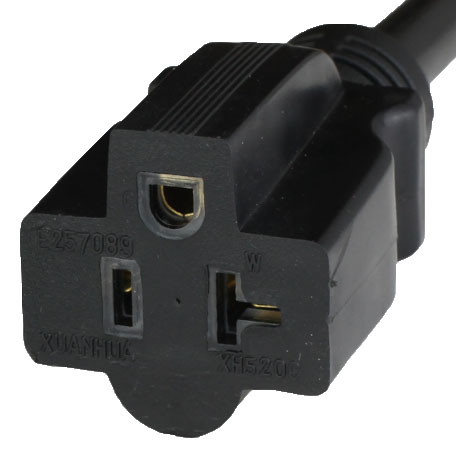

  • NEMA 5-20R connector

    Connector

    NEMA 5-20R

    • 20 Amps
    • 125 volts

    On 8 of the cords here (8%)

    The NEMA 5-20R connector is used to mate

    Mates with NEMA 5-20P Inlet

    Shop all OPEN to NEMA 5-20R (Female) Power Cords →
  • Brazil NBR14136 3PIN 10A 250V connector

    Connector

    Brazil NBR14136 3PIN 10A 250V

    • 10 Amps
    • 250 volts

    On 6 of the cords here (6%)

    The NBR14136 3 Pin Connector (Female) type is rated for 250VAC and 10 Amp in Brazil. It is the lower power version of the 20A NBR14136 Connector type.

    Mates with NBR14136 3p 10A Inlet/Plug

    Shop all Black Brazil Extension Cable NBR14136 to NBR14136 10A 250V →
  • Argentina IRAM 2073 Connector (F) 10A 250V connector

    Connector

    Argentina IRAM 2073 Connector (F) 10A 250V

    • 10 Amps
    • 250 volts

    On 6 of the cords here (6%)

    The IRAM 2073 Connector (Female) is rated for 250VAC and 10Amps in Argentina. It is the standard connector type in this region for a grounded power supply.

    Mates with IRAM 2073 10A Inlet/Plug

    Shop all Black Argentina Extension Cable IRAM 2073 to IRAM 2073 16A 250V →

About Extension Cords

Choosing an extension cord

Match the plug to the receptacle you have and the connector to the equipment you are powering — the designation is the same at both ends (a 5-20R accepts both 5-15P and 5-20P plugs, but a 5-20P plug needs a 5-20R receptacle). Pick the gauge for the load and the run: 14 AWG carries 15 A, 12 AWG carries 20 A, and longer runs at higher current want the heavier gauge to keep voltage drop down. Twist-lock (NEMA L5 / L6) cords lock into their receptacle so a bumped cord cannot cut power to a rack, a pump or a machine.

Extension cord or adapter?

If the two ends are different designations — 5-15P to 5-20R, L6-30P to L6-20R — the cord adapts one configuration to another and belongs with our plug adapters. Everything in this collection extends a circuit as-is.

Custom lengths and colors

Every family here is stocked in standard lengths; other lengths and colors are hand-terminated in our Connecticut shop from in-stock components.

Current rating

2.5–30 Amps

Voltage rating

125–250 volts

Certifications & compliance

  • RoHS
  • UL
  • cUL
  • IMQ
  • Every cord we build is hi-pot tested
  • Same-day shipping by 2:30 PM ET
  • NET 30/60/90 for approved accounts
  • In-house engineering and compliance support

Frequently asked questions

What certifications do these power cords carry?
UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
Do you require a minimum order quantity?
No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
Can I get a custom length or color?
Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
How fast does this ship?
In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
