World Cord Sets

15A 125V NEMA 5-15P Power Cords

10–15 Amps125 voltsNEMA 5-15PULcULRoHSREACH

Reference guide:NEMA connector guide →

273

configurations

Not sure which cord you need?

Answer a few quick questions and we’ll narrow it down for you.

Match by picture

About 15A 125V NEMA 5-15P Power Cords

The C13 to NEMA 5-15P power cord is used for all types of electrical devices in North America. To meet all our customers' needs for the wide range of devices this encompasses, we stock hundreds of styles of this cable configuration. For light-duty SJT (18awg), we stock colors in Black, Red, Blue, Green and white. We even offer the slim jacket SVT for applications where the cable doesn’t have much space. Our biggest selection is in the standard-duty 14awg “H” Series.

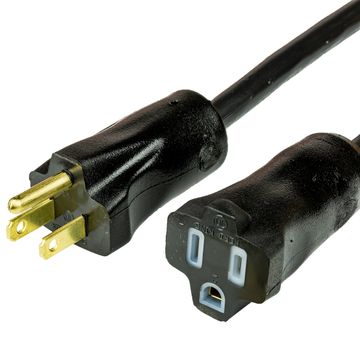

Intended uses for the 5-15p to 5-15r extension cords.

The NEMA 5-15P/R Extension cable is used to extend power from a wall outlet in North America to a specific location, generally to plug in a smaller cable connected to an electrical device to tool. Depending on what you're using the extension cable for, and where will determine the different specifications, you'll need to choose. We do not stock “Heavy Duty” Extension cables rated for outdoor use, if you are looking for those cables be sure to get SJTW cable jacket type. We do however stock many options for indoor use like 14awg, 18awg, and 16awg SJT Cable.

What are c13 to 5-15P splitter cables used for?

These splitter cables we offer in this series are perfect for powering two low power devices from a single power source. This can help reduce cable clutter in your home or provide sufficient power if you're running out of available outlets.

Related collections1-15P 55-20P 406-15P 426-20P 42

The plugs and connectors in this collection

What each end is, what it mates with, and where to find every cord built on it.

  • NEMA 5-15P plug

    Plug · NEMA

    NEMA 5-15P

    • 15 Amps
    • 125 volts

    On 276 of the cords here

    The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations.

    Mates with NEMA 5-15R Outlet

    You are on the NEMA 5-15P family page.

  • IEC 60320 C13 connector

    Connector · IEC 60320

    IEC 60320 C13

    • 15 Amps
    • 125/250V

    On 161 of the cords here (58%)

    The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.

    Mates with IEC 60320 C14 Inlet

    Shop all IEC 60320 C14 C13 Power Cords →
  • IEC 60320 C15 connector

    Connector · IEC 60320

    IEC 60320 C15

    • 15 Amps
    • 125/250V

    On 39 of the cords here (14%)

    The IEC 320 C15 Power cable is used to power electrical devices that emit so much heat (intentionally or unintentionally) that they require a power connection that can withstand more than the 70 °C (158 °F) temperature rating of the standard C13. In combination with the C14 plug type, the use cases of this high-temperature cable are almost exclusively data center environments. This cable would most likely be found supplying a High-Powered Switch power from a rack-mounted PDU power supply source. If your equipment has a IEC320 C16 Inlet it should only be mated with the matching C15-Power Connector.

    Mates with IEC 60320 C16 Inlet

    Shop all IEC 60320 C14 C15 Power Cords →
  • NEMA 5-15R connector

    Connector

    NEMA 5-15R

    • 15 Amps
    • 125 volts

    On 23 of the cords here (8%)

    The NEMA 5-1R connector mates with a NEMA 5-15P plug (the standard plug used in residential homes in North America. Rated at 125V and 15amps. The NEMA 5-15R connector is typically used in an extension cord or a cable adapter.

    Mates with NEMA 5-15P Inlet

    Shop all NEMA 5-15 Extension Cord →

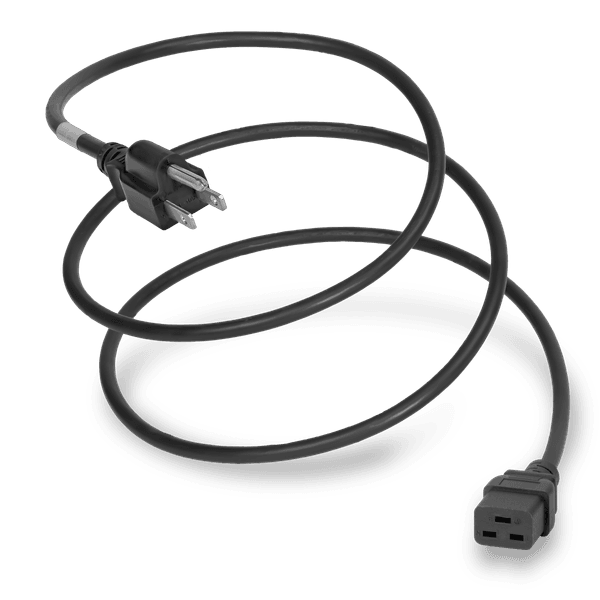

  • IEC 60320 C19 connector

    Connector · IEC 60320

    IEC 60320 C19

    • 20 Amps
    • 125/250V

    On 16 of the cords here (6%)

    The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.

    Mates with IEC 60320 C20 Inlet

    Shop all IEC 60320 C20 C19 Power Cords →

About 15A 125V NEMA 5-15P Power Cords

The NEMA 5-15P Plug is used very frequently around North America to supply electrical devices with power. It connects to the NEMA 5-15R and NEMA 5-20R Outlets that are located in every home, office, warehouse and building with 4 wall and a roof in the United States. The power source supplies up to 125 Volts and 15 Amperes of power, and offers a Ground pin or “Earthing Conductor” as a safety measure. Its fair to say that this power cable is a big deal; and we have an extensive selection to back that up. Browse for your next project or power cable replacement.

General Information

The NEMA 5-15P is a 3 pin power plug consisting of a hot, neutral and ground pin. It is one of the most common plug types in North America and is the basis for the International Electrotechnical Commision (IEC) standard in household and similar purposes (IEC 60906-2). The NEMA 5-15 and 5-20 are both standard options for 125V line, neutral and ground connections. To best decide which option fits your needs, refer to the name plate/ face plate for your devices specifications.

Choosing the Right NEMA 5-15P Cord for Your Application

Match the Connector to Your Equipment Inlet

The plug end is always a NEMA 5-15P — the variable is the device-side connector. The 276 cords in this collection cover the most common data-center and commercial pairings:

  • → IEC 60320 C13 (161 SKUs) — PDU-to-server jumpers, desktop computers, switches
  • → IEC 60320 C15 (39 SKUs) — high-temperature applications; mates with C16 inlets on hot-running switches
  • → IEC 60320 C19 (16 SKUs) — high-draw blade servers and large routers requiring a 20A connector
  • → NEMA 5-15R (23 SKUs) — extension cords and outlet-to-outlet adapters
  • → Locking connectors (L5-15R, L5-20R, L5-30R) — secure connections where accidental disconnection is unacceptable

Filter by What Matters to Your Project

Use the left-rail filters to narrow by current rating (10A, 13A, or 15A), wire gauge (12–18 AWG), color (nine options for circuit identification), and length (1 ft to 100 ft). All in-stock cords ship same day when ordered by 2:30 PM ET. Need a non-standard length or a private-label build? Use the Power Cord Configurator or request an instant quote.

Related

Current rating

10–15 Amps

Voltage rating

125 volts

Plug (male end)

NEMA 5-15P

Certifications & compliance

  • UL
  • cUL
  • RoHS
  • REACH
  • Every cord we build is hi-pot tested
  • Same-day shipping by 2:30 PM ET
  • NET 30/60/90 for approved accounts
  • In-house engineering and compliance support

Frequently asked questions

What is a NEMA 5-15P plug and what does it connect to?
The NEMA 5-15P is the standard 3-prong grounded plug used throughout North America, rated at 125V / 15A. It features two flat blades and one round ground pin. It mates natively with a NEMA 5-15R outlet and is also compatible with NEMA 5-20R T-slot outlets found in newer installations. On the device end, the most common pairing is a C13 connector for powering desktop computers, servers, and IT equipment via a PDU.
What is the difference between a C13 and a C15 connector on a 5-15P cord?
Both connectors fit a C14 inlet, but they serve different environments:IEC 60320 C13 — rated to 70 °C; the standard choice for desktop computers, servers, switches, and most IT equipment.IEC 60320 C15 — rated to 120 °C; required when the device generates enough heat to exceed the C13 temperature limit, such as high-powered data-center switches with a C16 inlet.If your equipment has a C16 inlet, use a C15 connector — a C13 will not mate correctly.
What wire gauges are available, and how do I choose the right one?
Cords in this collection are available in 12, 14, 16, and 18 AWG. A lower AWG number means a heavier, higher-capacity conductor:18 AWG — suited for lighter loads up to 10A (e.g., laptops, small peripherals).16 AWG — common for 13A applications such as standard extension cords.14 AWG — the most popular choice for 15A IT and data-center cords.12 AWG — heavy-duty runs and adapter cords stepping up to a 20A outlet.Use the on-page filters or the Wire Gauge Selection Guide to match gauge to your load and run length.
Can I get NEMA 5-15P cords with same-day shipping?
Yes. In-stock NEMA 5-15P cords ship the same day when ordered by 2:30 PM ET. Use the In stock only filter on this page to see immediately available SKUs. Made-to-order configurations are also available for custom lengths, colors, and connector combinations — lead times vary by build.
