Power Cord Types Chart

The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations.

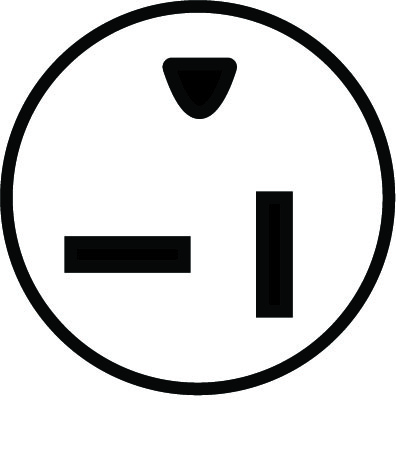

The NEMA 5-20P is a 3 Wire grounded plug featuring two blades and one ground pin rated up to 125V AC and 20 Amps. The NEMA 5-20P is used in applications that require higher power draw such as large refrigerators, space heaters,large kitchen mixers, etc. The 5-20R T-SLot receptacle allows you to plug in either a 5-20P or a 5-15P plug, allowing greater flexibility. In modern home installations, 5-20R T-Slot receptacles are often used when 20A circuits are installed due to flexibility of being downward compatable with the 5-15P.

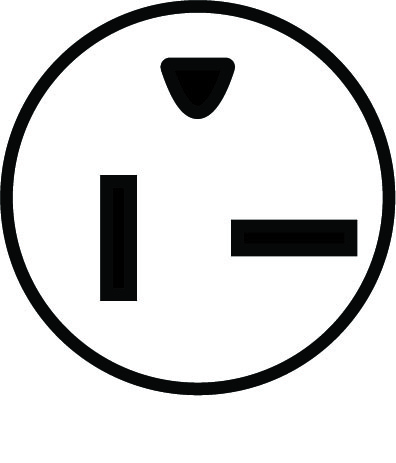

The NEMA 6-20P is a 3 Wire grounded plug featuring two blades and one ground pin rated up to 250V AC and 20 Amps. The NEMA 6-20P has one horizontal blade and one vertical blade and mates with a 6-20R Outlet.

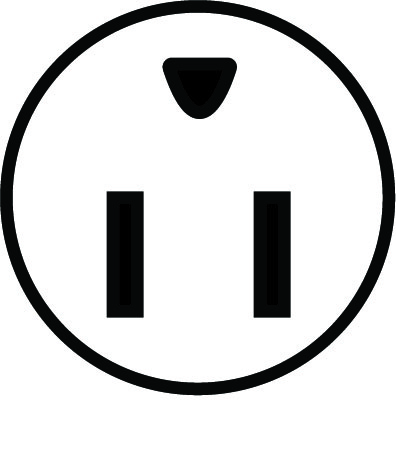

The NEMA 5-1R connector mates with a NEMA 5-15P plug (the standard plug used in residential homes in North America. Rated at 125V and 15amps. The NEMA 5-15R connector is typically used in an extension cord or a cable adapter.

The NEMA 5-20R connector is used to mate

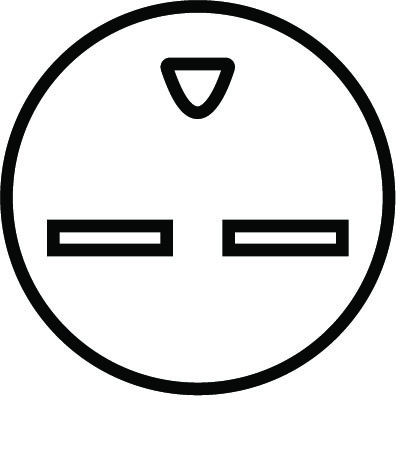

The NEMA 6-15R Connector (Female) is rated for 250VAC and 15 Amperes, and is used in North America under the NEMA set of standards. The connector type is commonly used in commercial and industrial settings to supply power to smaller electrical motors and equipment.

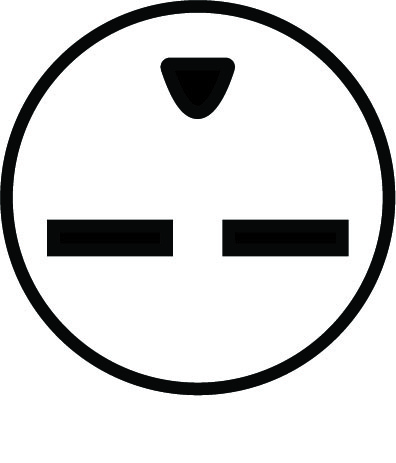

The NEMA 6-15P is a 3 Wire grounded plug featuring two blades and a ground pin, rated up to 250V AC and 15 Amps. The NEMA 6-15P has two, horizontal blades on the top of the plug spaced 23⁄32" center to center and a ground pin spaced between the two on the bottom of the plug.

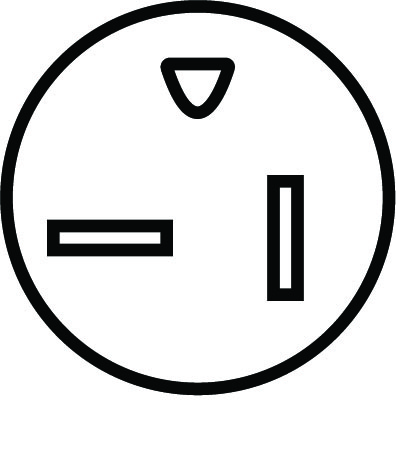

The NEMA 6-20R Connector (Female) is rated for 250VAC and 20 Amperes, and is used in North America under the NEMA set of standards. It can mate with the matching NEMA 6-20P Plug type.The connector type is commonly used in commercial and industrial settings to supply power to smaller electrical motors and equipment.

Hospital Grade NEMA 5-15P Power Cords are rated up to 125V and 15A. It is required that “patient care equipment” used in the “patient vicinity” use hospital-grade attachment plugs. These plugs will have a green dot displayed on the Plug Head.

The NEMA 5-20P is a 3 Wire grounded plug featuring two blades and one ground pin rated up to 125V AC and 20 Amps. The NEMA 5-20P is used in applications that require higher power draw such as large refrigerators, space heaters, large kitchen mixers, etc. The cord feeds into the plug head in the direction of the ground pin, giving this a low profile when connecting to a wall outlet. This product is commonly used in applications with small space requirements.

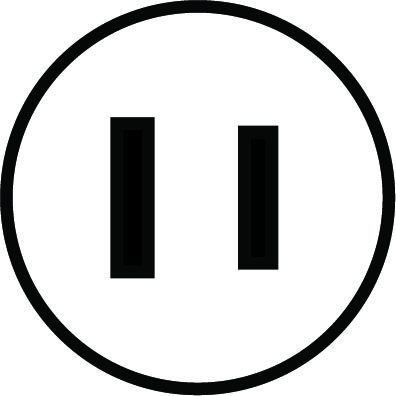

The NEMA 1-15P is a 2 Wire 2 Blade ungrounded plug rated at 125V and 15 Amps in North America. The use of NEMA 1-15R (the receptacle matching the 1-15P) is discontinued in new home installations in the U.S (since 1962). NEMA 1-15P are compatible with the NEMA 5-15R outlet.

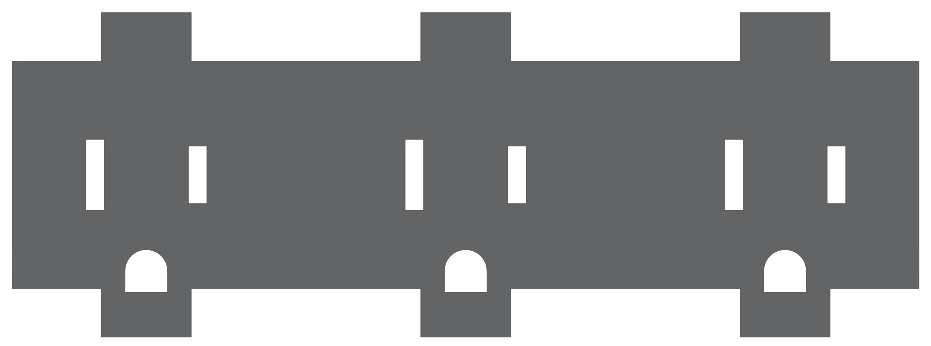

The NEMA 5-15R 3x splitter is a 1 to 3 adapter that will allow you to expand one power source into 3 NEMA 5-15R receptacles to plug more devices in. The set is collectively rated for 125VAC and 15 Amps.

The NEMA 1-15P is a non-grounded plug type rated for 125VAC and 15 Amps in North America. The standard configuration is commonly used to power small devices and power supplies for voltage adapters.

The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations. The cord feeds into plug head from the direction of the ground pin, making this plug style useful in tight applications where a standard plug cannot fit.

THE NEMA L6-20P is a 3 Wire 3 Blade grounded device with hot-hot-ground wiring and is rated up to 250V AC and 20 Amps.

The NEMA L5-20P is a 3 Wire 3 Blade grounded plug featuring three blades arranged in a circular pattern, rated up to 125V AC and 20 Amps. The NEMA L5-20P's blades are further separated than the NEMA L5-15P and is used in applications that require high amperage such as industrial/professional appliances. The locking feature prevents the plug from accidental disconnecting from the outlet, preventing power loss.

The NEMA L6-30P is a 3 Wire 3 Blade grounded device with hot-hot-ground wiring and is rated up to 250V AC and 30 Amps. The NEMA Locking Plugs are designed for high traffic areas in industrial and commercial settings where unplugging is a possibility. This plug connects to NEMA L6-30R Receptacle/Connector.

The NEMA L6-20 Connector is rated for 250V and 20A. It is wired as HOT-HOT-GROUND, meaning this connector does not have a neutral conductor. L6-20 and L6-30 connectors are commonly found on in-rack power distribution units in applications where the main supply voltage is greater than 120 V. The locking capability and high power output also makes these connectors common in industrial settings for powering large equipment.

The NEMA L5-15P is a 3 Wire 3 Blade grounded plug featuring 3 Blades arranged in a tight circular pattern rated up to 125V AC and 15 Amps.. The plug locks to the connector by twisting into place. Locking cords are typically used in industrial applications to ensure that accidental power loss does not occur due to a loose connection.

The NEMA L6-30R (female) is a 3 Wire 3 Blade grounded device with hot-hot-ground wiring and is rated up to 250V AC and 30 Amps. This is a twist-lock device, insert the plug into the connector and turn. Locking cords are typically used in industrial applications to ensure that accidental power loss does not occur due to a loose connection.

The NEMA L5-20R is a twist-locking NEMA connector that is rated for 125VAC and 20 Amps of power in North America. The Twist Lock configuration can lock into place by twisting the plug and connector after mating. This is an effective solution for high-traffic areas and powering equipment like electrical motors that should not be unplugged under load.

The NEMA L6-15P is a 3 Wire 3 Blade grounded wiring device rated up to 250V AC and 15 Amps.

The NEMA L6-15R (female receptacle) is a 3 Wire 3 Blade grounded wiring device rated up to 250V AC and 15 Amps. Intended for two-pole, three wire hot-hot-ground circuits with a nominal supply voltage of 240 or 208 V, depending on phase configuration.The locking feature prevents the plug from accidental disconnecting from the outlet, preventing power loss.

The NEMA L5-30R is a twist-locking NEMA connector that is rated for 125VAC and 30 Amps of power in North America. It is designed to mate with the matching NEMA L5-30P Plug type. The Twist Lock configuration can lock into place by twisting the plug and connector after mating. This is an effective solution for high-traffic areas and powering equipment like electrical motors that should not be unplugged under load.

The NEMA L5-15R is a twist-locking NEMA connector that is rated for 125VAC and 15 Amps of power in North America. The Twist Lock configuration can lock into place by twisting the plug and connector after mating. This is an effective solution for high-traffic areas and powering equipment like electrical motors that should not be unplugged under load.

The NEMA L21-20P is a locking plug (male) configuration rate for 3PY120/208VAC and 20 Amps in North America. The plug is designed to lock into place with the matching NEMA L21-20R which is useful in various industrial settings.

The NEMA L14-30R is a twist lock configuration rated for 125/250VAC and 30 Amps of power in North America. It utilizes the Twist Locking NEMA technology that will effectively lock the power connection by twisting it after insertion. This is beneficial for high-volume traffic areas and when powering electrical motors.

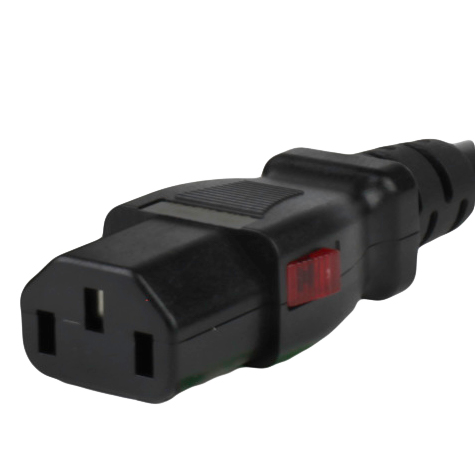

The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.

The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 mates with a C13 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C14 is in a jumper cable scenario, providing power from a PDU to IT Equipment.

The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.

The IEC 60320 C20 is a grounded 3 Wire Plug rated up to 250V and 20 Amps. The C20 mates with a C19 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C20 is in a jumper cable scenario, providing power from a PDU to a blade server chassis, high powered server, large network router, or similar device.

The IEC 320 C15 Power cable is used to power electrical devices that emit so much heat (intentionally or unintentionally) that they require a power connection that can withstand more than the 70 °C (158 °F) temperature rating of the standard C13. In combination with the C14 plug type, the use cases of this high-temperature cable are almost exclusively data center environments. This cable would most likely be found supplying a High-Powered Switch power from a rack-mounted PDU power supply source. If your equipment has a IEC320 C16 Inlet it should only be mated with the matching C15-Power Connector.

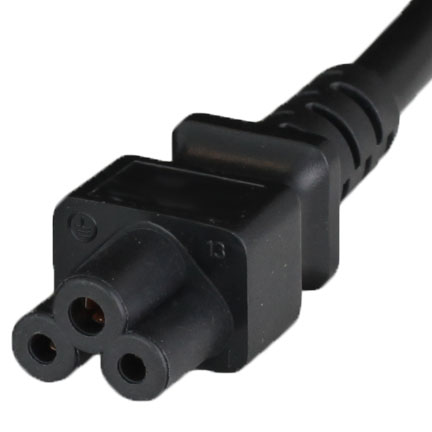

The IEC 60320 C5 is a grounded 3 Wire connector rated up to 250V and 2.5 Amps Internationally or 125V and 10 Amps in North America. The C5 mates with a C6 inlet, and is commonly used for laptop power supplies, projectors, and some televisions. Being slightly smaller in size than the C13, the C5 can be a good choice for smaller appliances. This connector is sometimes referred to as a "Mickey Mouse" connector due to the shape of the connector looking similar to the kids television show character.

The IEC 60320 C21 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C21 mates with a C22 or C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C21 is a HIGH TEMPERATURE version of the C19 connector, with a maximum pin temperature of 155°C instead of the standard 65°C ofa C19, and is typically used in high powered blade servers, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.

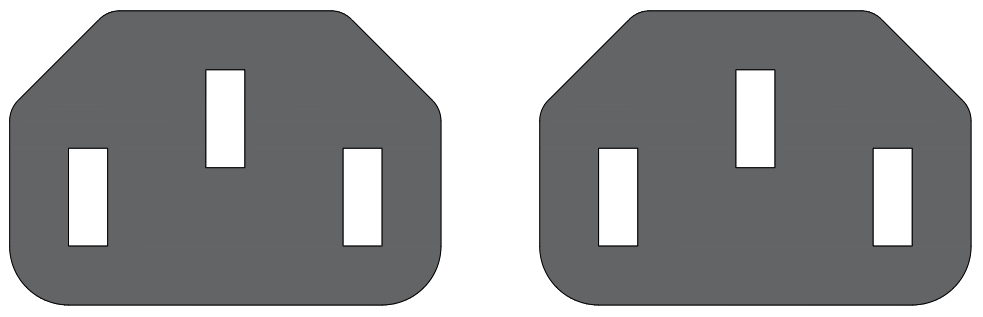

The IEC 60320 C13 2x Splitter is a 1 to 2 power tap that allows you to plug in 2 devices into 1 power source. They are rated for 250VAC and 15Amps collectively and convert 1 power source into 2 IEC 60320 C13 Connectors.

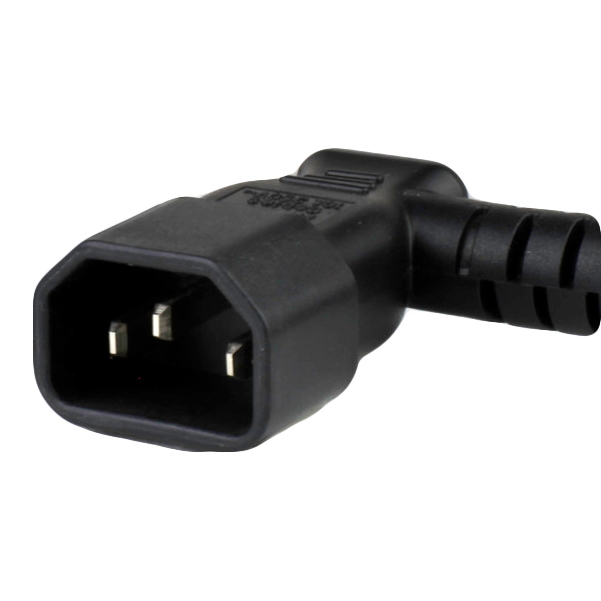

The LEFT ANGLE refers to the cord orientation relative to the plug face, refer to the diagram. When looking at the back of the connector (as if plugged in) the cord will exit left. The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 mates with a C13 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C14 is in a jumper cable scenario, providing power from a PDU to IT Equipment.

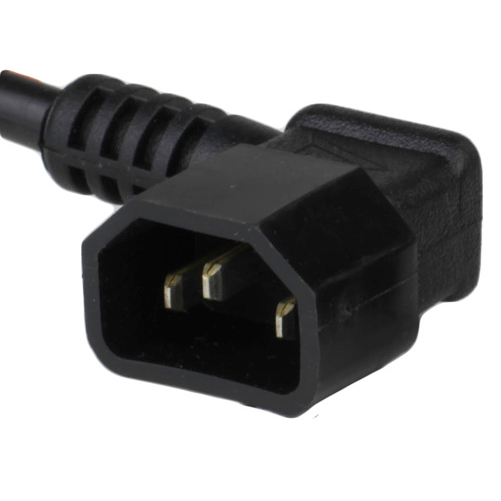

The RIGHT ANGLE refers to the cord orientation relative to the plug face, refer to the diagram. When looking at the back of the connector (as if plugged in) the cord will exit right. The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 mates with a C13 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C14 is in a jumper cable scenario, providing power from a PDU to IT Equipment.

The IEC 60320 C7 is an ungrounded 2 Wire connector rated up to 250V and 2.5 Amps Internationally or 125V and 10 Amps in North America. The C7 mates with a C8 inlet, and is commonly used for laptop power supplies, video game consoles, televisions, and other double-insulated small appliances. This connector is sometimes referred to as a "Figure-8" or "Shotgun" connector due to it's shape. A variation of the C7 exists, sometimes referred to as a C7P or C7 Polarized, although it is not documented in the IEC 60320 standard. The C7P has one square side and one circular side so the connector only mates with the inlet using the correct pin configuration.

The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. With the ground at 12:00 and looking at the back of the C13 (when plugged in), the cord exits at 3:00 (to the right).

The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. With the ground at 12:00 and looking at the back of the C13 (when plugged in), the cord exits at 9:00 (to the left).

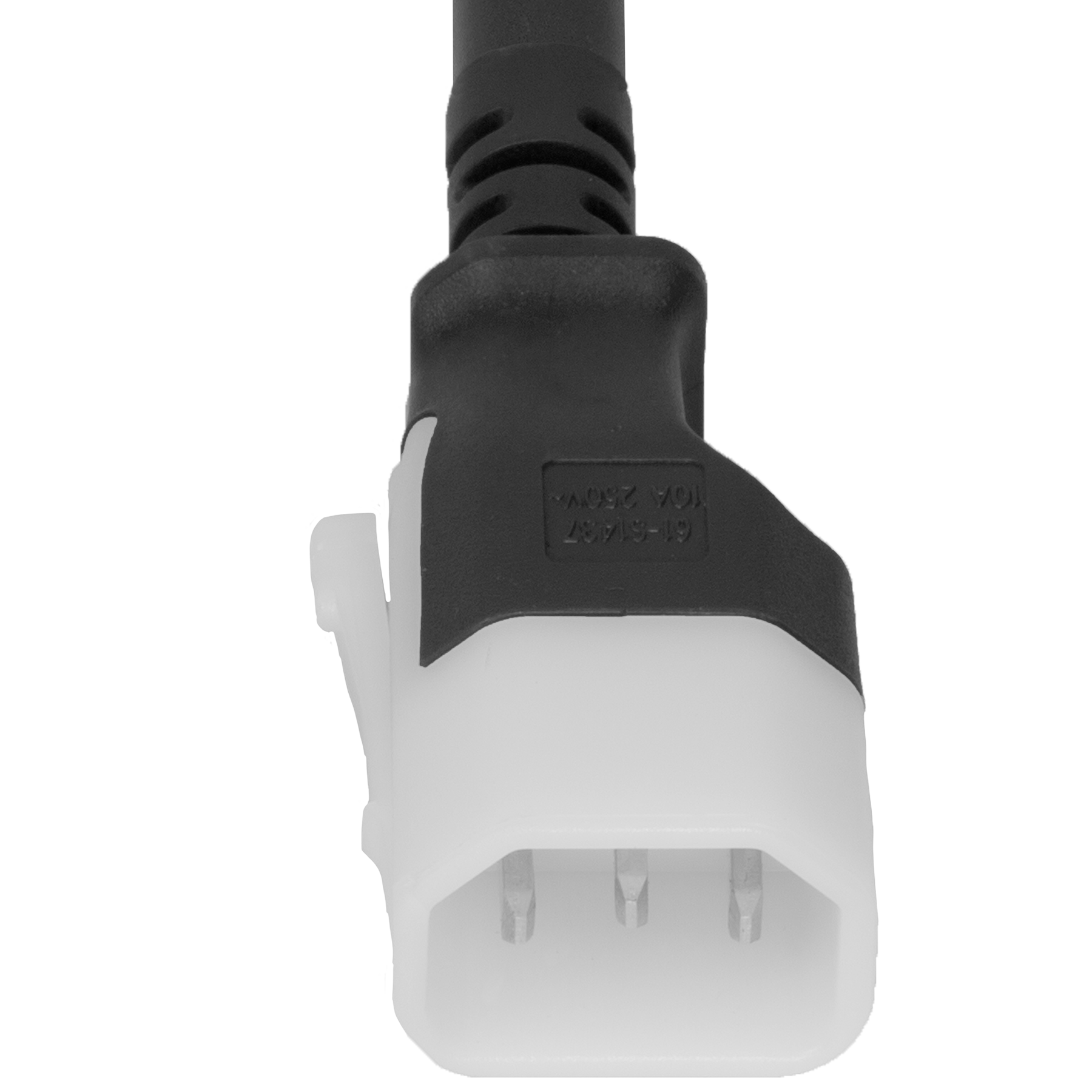

The IEC 60320 C14 is rated for 250VAC and 15 Amps. The P-Lite locking mechanism is an ergonomic advance of the standard P-Lock plug type, designed with high-density pdus in mind. It has a recessed plug head that allows space for fingers to easily install and un install the plugs. It can mate with various proprietary PDUs like Server Tech and Raritan.

The LEFT ANGLE refers to the cord orientation relative to the connector face, refer to the diagram. When looking at the back of the connector (as if plugged in) the cord will exit left. The IEC 60320 C15 (female) is a grounded 3 Wire connector rated up to 250V & 10 Amps Internationally and 125V/250V & 15 Amps in North America. The C15 mates with a C16 inlet as well as a C14 Inlet and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C15 is a HIGH TEMPERATURE connector rated up to 120°C, unlike the 70°C rating of the C13. The C15 is commonly used in in electric kettles and other household appliances that involve higher temperatures than a normal C13 is made to withstand.

The RIGHT ANGLE refers to the cord orientation relative to the connector face, refer to the diagram. When looking at the back of the connector (as if plugged in) the cord will exit right. The IEC 60320 C15 (female) is a grounded 3 Wire connector rated up to 250V & 10 Amps Internationally and 125V/250V & 15 Amps in North America. The C15 mates with a C16 inlet as well as a C14 Inlet and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C15 is a HIGH TEMPERATURE connector rated up to 120°C, unlike the 70°C rating of the C13. The C15 is commonly used in in electric kettles and other household appliances that involve higher temperatures than a normal C13 is made to withstand.

The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate. With the ground at 12:00 and looking at the back of the C19 (when plugged in), the cord exits at 9:00 (to the left)

The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate. With the ground at 12:00 and looking at the back of the C19 (when plugged in), the cord exits at 3:00 (to the right)

The IEC 60320 C15 2x splitter configuration is a 1 to 2 adapter that converts 1 power source into 2 IEC320 C15 connectors to plug in multiple devices. The set is collectively rated for 250VAC and 15 Amps.

The IEC 60320 C19 2x splitter configuration is a 1 to 2 adapter that converts 1 power source into 2 IEC320 C19 connectors to plug in multiple devices. The set is collectively rated for 250VAC and 20 Amps.

The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. With the ground at 12:00 and looking at the back of the C13 (when plugged in), the cord exits at 12:00 (upward).

The DOWN ANGLE refers to the cord orientation relative to the plug face, refer to the diagram. When looking at the back of the connector (as if plugged in) the cord will exit down. The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 mates with a C13 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C14 is in a jumper cable scenario, providing power from a PDU to IT Equipment.

The IEC 60320 C7 Polarized is rated for 250VAC and 2.5 Amps. It is the "polarized" version of the C7, meaning the configuration was slightly modified to prevent mating with an inlet in either direction. This is required for products that are not internally wired to accept the line/load in either direction. The reason for this distinction is added ease of use for the customer, although some manufacturers do not take the extra step in order to keep their costs down.

The IEC 60320 C14 P-Lock Plug is designed for use with ServerTech and Raritan data center PDUs. The locking tabs on each side prevent the plug head from nuisance unplugging by hooking into the PDU unit. The plug can easily be removed by pressing down on the tabs located on each side.

The IEC 60320 C20 P-Lock is rated for 20A and 250V and is specially made for connecting to ServerTech and Raritan Locking PDUs. The Plug locks into place by hooking into the plug outlet with the two tabs on each side of the Plug. The plug can easily be removed by pushing down on both tabs of the plug.

The IEC 60320 C13 S-Lock Connector is rated for 250VAC and 15Amps, and is designed to mate with the matching IEC 60320 C14 Inlet and Plug type. The S-Lock is a revolutionary rotary lock that can internally pinch the pins of the inlet by twisting the locking mechanism on the connector body. This is a universal locking mechanism, meaning that it will mate with any standard matching inlet.

The IEC 60320 C15 S-Lock Connector is rated for 250VAC and 15Amps, and is designed to mate with the matching IEC 60320 C16 Inlet and Plug type. The C15 is a high temperature connector, and is rated for operating under temperatures up to 120C. The S-Lock is a revolutionary rotary lock that can internally pinch the pins of the inlet by twisting the locking mechanism on the connector body. This is a universal locking mechanism, meaning that it will mate with any standard matching inlet.

The IEC 60320 C19 S-Lock Connector is rated for 250VAC and 20Amps, and is designed to mate with the matching IEC 60320 C20 Inlet and Plug type. The S-Lock is a revolutionary rotary lock that can internally pinch the pins of the inlet by twisting the locking mechanism on the connector body. This is a universal locking mechanism, meaning that it will mate with any standard matching inlet.

The IEC 60320 C14 is a Plug (Male) configuration rated for 250VAC and 15 Amps. The Z-Lock is a universal locking plug type, designed to lock into place by expanding the size of the plug head after insertion by spinning the rotary lock on the plug head.

The IEC 60320 C19 Locking Connector is rated for 20 Amps and 250VAC. It is a grounded connector type, with the A-Lock feature for latching the connector in place once it is mated. The A-Lock is a universal locking mechanism that internally pinches the pins of the male/inlet that it connects with. This effectively holds the connector in place until the user pinches and pulls back the two red tabs located on either side of the connector body.

The Saf-D-Grid 400V Connector is rated for 400VAC and 16 Amps of power. It mates with the matching Saf-D-Grid 400V Inlet located on various data center equipment. This is the highest power rated connector for the footprint of an IEC 60320 connector.

The IEC 60320 C13 V-Lock compatible connector is designed to mate with proprietary IEC 60320 C14 Inlets located generally on rack mount equipment. The C13 is rated for 15 Amps and 250VAC, and is the most commonly found connector type around the world. The V-Lock mating system will latch into the inlet housing on equipment and can be disconnected by pressing in the yellow tab on the top down so that the recessed inlet flange is no longer latched.

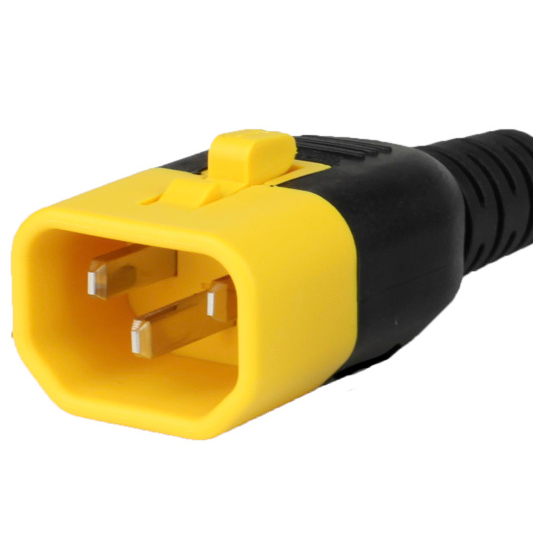

The IEC 60320 C14 is rated for 250VAC and 15 Amps. The V-Lock locking mechanism can mate with the APC8000 PDU series by latching onto the recessed PDU face plate. To disengage, simply press down on the yellow tab on the top of the plug head.

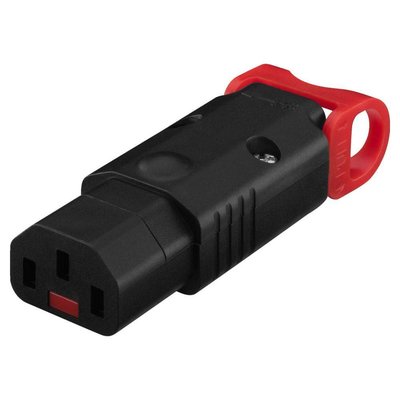

The IEC 60320 C13 IEC-Lock connector type is rated for 250VAC and 15Amps. It features the universal IEC Lock mechanism that can be mated with any standard IEC 60320 C14 Plug or Inlet. It engages the lock when inserted by pinching the pins, and can be dis-engaged by pulling back on the red tabs.

The IEC 60320 C19 V-Lock compatible connector is designed to mate with proprietary IEC 60320 C20 Inlets located generally on rack mount equipment. The C19 is rated for 20 Amps and 250VAC, and is the most commonly found connector type around the world. The V-Lock mating system will latch into the inlet housing on equipment and can be disconnected by pressing in the yellow tab on the top down so that the recessed inlet flange is no longer latched.

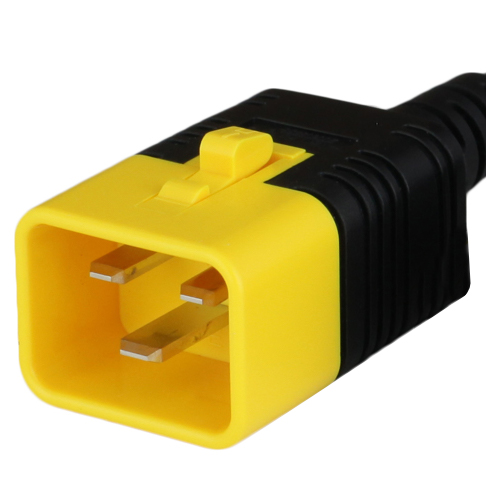

The IEC 60320 C20 is rated for 250VAC and 20 Amps. The V-Lock locking mechanism can mate with the APC8000 PDU series by latching onto the recessed PDU face plate. To disengage, simply press down on the yellow tab on the top of the plug head.

The Saf-D-Grid 400V Plug connector is rated for 400VAC and 16 Amps. The configuration can be connected with the matching Inlet type, and is the highest rated connector body in the footprint of IEC 60320.

The IEC 60309 420P7W is a 4 wire plug body rated for 480-500VAC and 20 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 530C5W is a 5 wire connector body rated for 347/600-400/690VAC and 30 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 530P5W is a 5 wire plug body rated for 347/600-400/690VAC and 30 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 560P5W is a 5 wire plug body rated for 347/600-400/690VAC and 60 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 4100C7W is a 4 wire connector body rated for 480-500VAC and 100 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 4100C9W is a 4 wire connector body rated for 208-250VAC and 100 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 4100P7W is a 4 wire plug body rated for 480-500VAC and 100 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 4100P9W is a 4 wire plug body rated for 208-250VAC and 100 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 420C12W industrial connector type is rated for 125/250VAC and 20 Amps of power. It is colored yellow for easy identification and is IP67 rated or "water-proof".

The IEC 60309 420C5W is a waterproof industrial connector body rated for 600-690VAC and 20 Amps. The connector body is black for identification and has 4 wires and is grounded.

The IEC 60309 420C7W is a waterproof industrial connector body rated for 480-500VAC and 20 Amps. The connector body is black for identification and has 4 wires.

The IEC 60309 WC420C9W industrial connector is rated for 3 Phase 250VAC and 20 Amperes of power. It is colored blue for easy identification of the configuration, and has an IP67 rating also known as "water-proof".

The IEC 60309 420P12W industrial plug type is rated for 125/250VAC and 20 Amps. It is colored orange for easy identification of the configuration and is IP67 rated or "water-proof".

The IEC 60309 420P5W is a 4 wire plug body rated for 600-690VAC and 20 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 420P9W is a 4 wire plug body rated for 208-250VAC and 20 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 430C5W is a 3 wire connector body rated for 600-690VAC and 30 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 430C9W is a 4 wire connector body rated for 208-250VAC and 30 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 430P5W is a 4 wire plug body rated for 600-690VAC and 30 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 430P7W is a 4 wire plug body rated for 480-500VAC and 30 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 430P9W is a 4 wire plug body rated for 208-250VAC and 30 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 460C5W is a 4 wire connector body rated for 600-690VAC and 60 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 460C7W is a 4 wire connector body rated for 480-500VAC and 60 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 460C9W is a 4 wire connector body rated for 208-250VAC and 60 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 460P5W is a 4 wire plug body rated for 600-690VAC and 60 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 460P7W is a 4 wire plug body rated for 480-500VAC and 60 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 460P9W is a 4 wire plug body rated for 208-250VAC and 60 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 5100C5W is a 5 wire connector body rated for 347/600-400/690VAC and 100 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 5100C7W is a 5 wire connector body rated for 277/400-288/500VAC and 100 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 5100C9W is a 5 wire connector body rated for 120/208-144/250VAC and 100 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 5100P5W is a 5 wire plug body rated for 347/600-400/690VAC and 100 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 5100P7W is a 5 wire plug body rated for 277/400-288/500VAC and 100 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 5100P9W is a 5 wire plug body rated for 120/208-144/250VAC and 100 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 520C5W is a waterproof industrial connector boy rated for 347/600-400/690VAC and 20 Amps. The connector is black for identification and has 5 wires with a ground conductor.

The IEC 60309 520C7W is a 5 wire connector body rated for 277/400-288/500VAC and 20 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 520C9W is a 5 wire connector body rated for 120/208-144/250VAC and 20 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 520P5W is a 5 wire plug body rated for 347/600-400/690VAC and 20 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 520P7W is a 5 wire plug body rated for 277/400-288/500VAC and 20 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 520P9W is a 5 wire plug body rated for 120/208-144/250VAC and 20 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 530C7W is a 5 wire connector body rated for 277/400-288/500VAC and 30 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 530C9W is a 5 wire connector body rated for 120/208-144/250VAC and 30 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 530P7W is a 5 wire plug body rated for 277/400-288/500VAC and 30 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 530P9W is a 5 wire plug body rated for 120/208-144/250VAC and 30 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 560C5W is a 5 wire connector body rated for 347/600-400/690VAC and 60 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 560C7W is a 5 wire connector body rated for 277/400-288/500VAC and 60 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 560C9W is a 5 wire connector body rated for 120/208-144/250VAC and 60 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 560P7W is a 5 wire plug body rated for 277/400-288/500VAC and 60 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 560P9W is a 5 wire plug body rated for 120/208-144/250VAC and 60 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 430C7W is a 4 wire connector body rated for 480-500VAC and 30 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

IEC 60309 316C6 IP44

The IEC 60309 316P6S is an industrial plug type rated for 250VAC and 16 Amperes of power. It is colored blue for easy identification of the configuration and is IP44 rated or "splash-proof".

The IEC 60309 416C6S is a 4 wire connector body rated for 380-415VAC and 16 Amps. The connector body is red for easy identification and is a splash proof industrial power connector.

The IEC 60309 320C4W is a waterproof industrial connector body rated for 100-130VAC and 20 Amps. The connector body is yellow for identification and has 3 wires and is grounded.

The IEC 60309 320C6W is a waterproof industrial connector boy rated for 200-250VAC and 20 Amps. The connector is blue for identification and has 3 wires with a ground conductor.

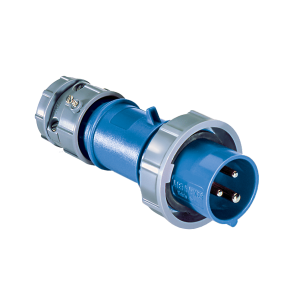

The IEC 60309 320P6W is a 3 wire plug body rated for 200-250VAC and 20 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 330C6W is a 3 wire connector body rated for 200-250VAC and 30 Amps. The connector body is red for easy identification and is a waterproof industrial power connector.

The IEC 60309 330P6W is a 3 wire plug body rated for 200-250VAC and 30 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 4100P5W is a 4 wire plug body rated for 600-690VAC and 100 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 332P6W is a 3 wire Plug body rated for 200-250VAC and 32 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 516C6S is a 5 wire connector body rated for 200/346-240/415VAC and 16 Amps. The connector body is red for easy identification and is a splash proof industrial power connector.

The IEC 60309 3100C4W is a 3 wire connector body rated for 100-130VAC and 100 Amps. The connector body is yellow for easy identification and is a waterproof industrial power connector.

The IEC 60309 3100C6W is a 3 wire connector body rated for 200-250VAC and 100 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 3100C7W is a 3 wire connector body rated for 480-500VAC and 100 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 3100P4W is a 3 wire plug body rated for 100-130VAC and 100 Amps. The connector body is yellow for easy identification and is a waterproof industrial power connector.

The IEC 60309 3100P6W is a 3 wire plug body rated for 200-250VAC and 100 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 3100P7W is a 5 wire plug body rated for 480-500VAC and 100 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 316C4W is a 3 wire connector body rated for 100-130VAC and 16 Amps. The connector body is yellow for easy identification and is a waterproof industrial power connector.

The IEC 60309 320C7W is a waterproof industrial connector boy rated for 400-500VAC and 20 Amps. The connector is black for identification and has 3 wires.

The IEC 60309 320P4W is a 3 wire plug body rated for 100-130VAC and 20 Amps. The connector body is yellow for easy identification and is a waterproof industrial power connector.

The IEC 60309 320P7W is a 3 wire plug body rated for 480-500VAC and 20 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 330C4W is a 3 wire connector body rated for 100-130VAC and 30 Amps. The connector body is yellow for easy identification and is a waterproof industrial power connector.

The IEC 60309 330C7W is a 3 wire connector body rated for 480-500VAC and 30 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 330P4W is a 3 wire plug body rated for 100-130VAC and 30 Amps. The connector body is yellow for easy identification and is a waterproof industrial power connector.

The IEC 60309 330P7W is a 3 wire plug body rated for 480-500VAC and 30 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 360C4W is a 3 wire connector body rated for 100-130VAC and 60 Amps. The connector body is yellow for easy identification and is a waterproof industrial power connector.

The IEC 60309 360C6W is a 3 wire connector body rated for 200-250VAC and 60 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 360C7W is a 3 wire connector body rated for 480-500VAC and 60 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 360P4W is a 3 wire plug body rated for 100-130VAC and 60 Amps. The connector body is yellow for easy identification and is a waterproof industrial power connector.

The IEC 60309 360P6W is a 3 wire plug body rated for 200-250VAC and 60 Amps. The connector body is blue for easy identification and is a waterproof industrial power connector.

The IEC 60309 360P7W is a 3 wire plug body rated for 480-500VAC and 60 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 4100C5W is a 4 wire connector body rated for 600-690VAC and 100 Amps. The connector body is black for easy identification and is a waterproof industrial power connector.

The IEC 60309 4100P6W is a 3 wire plug body rated for 380-415VAC and 100 Amps. The connector body is red for easy identification and is a waterproof industrial power connector.

The IEC 60309 430C6W is a 4 wire connector body rated for 380-415VAC and 30 Amps. The connector body is red for easy identification and is a waterproof industrial power connector.

The IEC 60309 460C6W is a 4 wire connector body rated for 380-415VAC and 60 Amps. The connector body is red for easy identification and is a waterproof industrial power connector.

The IEC 60309 530C6W is a 5 wire connector body rated for 200/346-240/415VAC and 30 Amps. The connector body is red for easy identification and is a waterproof industrial power connector.

The plug (MALE) is a Type F Schuko CEE7/7. It fits both E (France) and F (European / Germany) type outlets (sockets). Available in straight or down/up angle orientation. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground.

The UK BS1363 plug type configuration is rated for 250VAC and 13 Amperes of power in the United Kingdom. It is also classified as the IEC type G, and is the standard plug type for electrical appliances in the United Kingdom. It is the only plug type to have an internally wired fuse in the plug body, adding an additional layer of electrical protection.

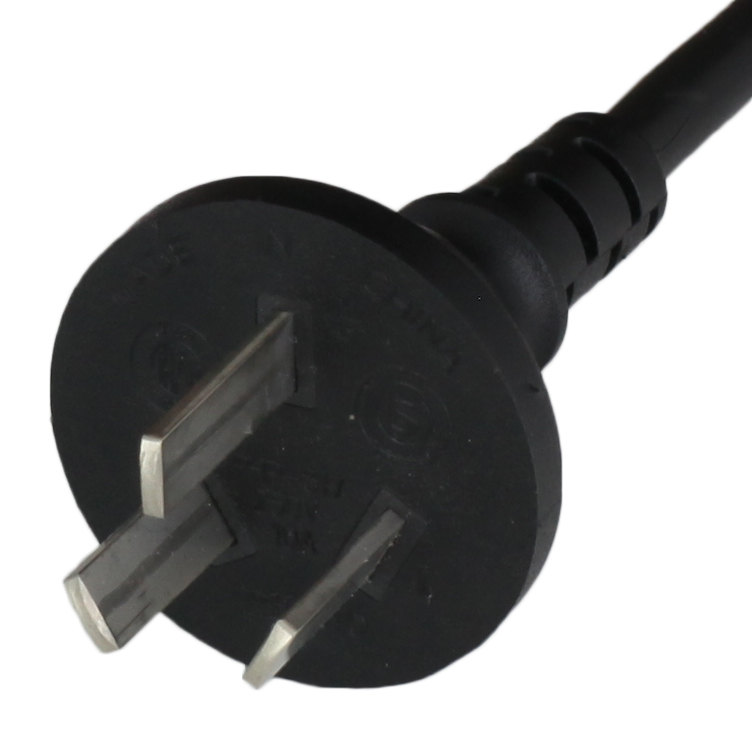

The IRAM 2073 3 Pin 10 Amp Plug (Male) is rated for 250VAC and 10 Amperes in Argentina. It is designed to mate with the matching 10A IRAM 2073 connector/ outlet.

The SANS 164-1 16A plug type configuration is rate for 250VAC and 16 Amps in South Africa. The plug type was previously know as BS546 (Old-English) configuration, and is the standard plug type for larger appliances in South Africa. The plug type is also referred to as the international type M.

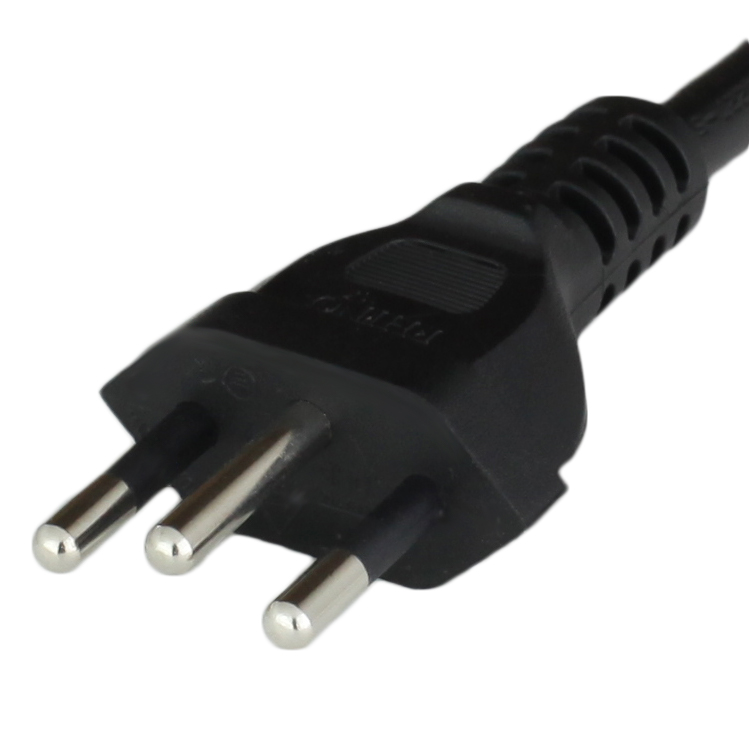

The NBR14136 10A Plug (Male) configuration is rated for 250VAC and 10 Amps in Brazil. It has 3 pins and a dedicated ground conductor.

The GB2099 3P 10A Plug (Male) configuration is rated for 250VAC and 10 Amps in China. It is a grounded plug type and the standard plug type for this region for household devices.

The connector (FEMALE) is a Type F Schuko CEE7/3 which accepts the Type F Schuko CEE7/7 plug.
For use in international projects in Europe, Germany, Algeria, Austria, Azerbaijan, Belarus, Belgium, Bosnia and Herzegovina, Brunei, Bulgaria, Burundi, Cameroon, Cape Verde, Central Africa Rep, Chad, Comoros, Congo Democratic Republic, Croatia, Czech Republic, Djibouti, Egypt, Eritrea, Finland, France, French Guiana, Gabon, Georgia, Germany, Greece, Greenland, Guadeloupe, Guinea, Guinea-Bissau, Hungary, Iceland, Indonesia, Jordan, Kazakhstan, South Korea, Kyrgyzstan, Liechtenstein, Luxembourg, Macedonia, Madagascar, Mali, Martinique, Monaco, Montserrat, Morocco, Mozambique, Netherlands, Netherlands Antilles, New Caledonia, Norway, Philippines, Portugal, Reunion, Romania, Russia, San Marino, Senegal, Serbia and Montenegro, Slovenia, Spain, Suriname, Sweden, Syria, Togo, Tunisia, Turkey, Ukraine, Vietnam.

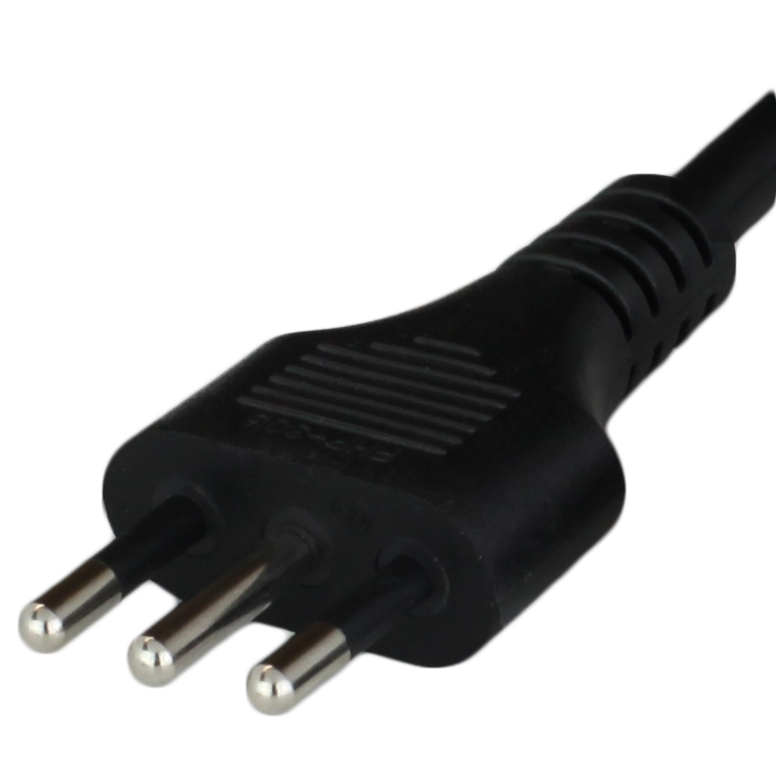

The CEI 23-50 10A plug type configuration is rated for 250VAC and 10 Amps in Italy and is also classified as the international type L plug. The 10A configuration is smaller than the 16 amp configuration to prevent connection the 16 amp plug type into a 10 amp receptacle, which is an electrical hazard.

The SEV 1011 3 pin plug configuration is rated for 250VAC and 10 Amperes in Switzerland. This configuration is also classified as IEC type J, and is the standard low power plug type in Switzerland. The pins of the 10 amp plug type are circle shaped and slightly smaller diameter, allowing them to be plugged into both the 10 amp and 16 amp receptacle types.

The IRAM 2063 2 Pin Plug (Male) configuration is rated for 250VAC and 2.5 Amps in Argentina. It is an un-grounded plug type and can plug into the 10A 3 Pin receptacle to access power.

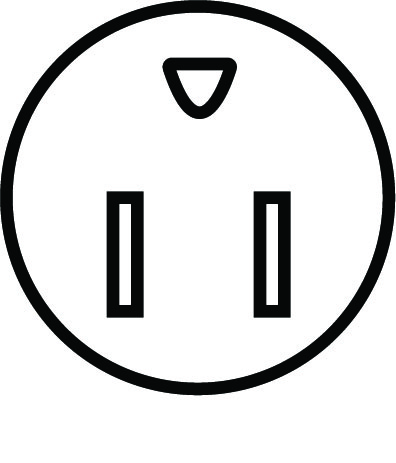

The Japan JIS8303 3-Pin plug configuration is rated for 125VAC and 15 Amperes in Japan. The design is known as IEC Type B and is nearly identical to the United States version NEMA 5-15P, with the exception of having different global electrical approvals. This is the standard plug type in Japan for household power.

The IRAM 2073 Connector (Female) is rated for 250VAC and 10Amps in Argentina. It is the standard connector type in this region for a grounded power supply.

The plug (MALE) is a Type F Schuko CEE7/7. It fits both E (France) and F (European / Germany) type outlets (sockets). Available in straight or down/up angle orientation. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground.

The NBR14136 3 Pin Connector (Female) type is rated for 250VAC and 10 Amp in Brazil. It is the lower power version of the 20A NBR14136 Connector type.

The AFSNIT 107-2-D1 plug type configuration is rated for 250VAC and 13 Amps of power in Denmark. It is also classified as the international type K plug type and is the standard plug type for Denmark.

The AS/NZS 3112 3 Pin 10A Plug (Male) configuration is rated for 250VAC and 10 Amps in Australia and New Zealand. It is a grounded plug and the standard plug type for the region.

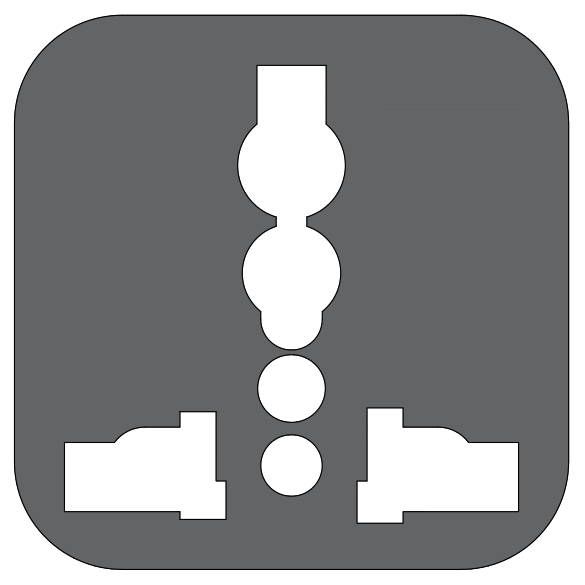

Universal socket: Accepts
USA NEMA 1-15P, USA NEMA 5-15P, USA NEMA 5-20P, USA NEMA 6-15P, USA NEMA 6-20P, Argentina IRAM2073, Australia AS3112 10 and 15 Amp Versions, China GB2099 10 Amp (not 16amp version), Denmark AFSNIT, Europlug CEE7/16, France CEE7/4 (Ground is dropped), Germany CEE7/7 (Ground is dropped), Israel SI32, Italy CEI 23-50 10 Amp (not 16amp version), Japan JIS8303, Korea KSC8305 (Ground is dropped), Russia GOST7396 (Ground is dropped), South Africa SABS 164-1 6 Amp (not 16amp version), Switzerland SEV 1011 10 Amp (not 16amp version), Taiwan CNS6797, United Kingdom BS1363, Male IEC320 C14.
Note: Power Plug Adapters do not convert voltage, they just change the plug type. Use a proper voltage converter along with a power plug adapter if your device is incompatible with the country's voltage.

The CEI 23-50 3 Pin 16A plug type configuration is rated for 250VAC and 16Amps in Italy. It is also classified as the type L plug type and is the standard plug type for general appliances in Italy.

The AS/NZS 3112 3 Pin 15A Plug (Male) configuration is rated for 250VAC and 15 Amps of power in New Zealand and Australia. The Pins are slightly larger than the 10A configuration, which prevents cross connection.

The NBR14136 3 Pin 20A Connector (Female) type is rated for 250VAC and 20 Amps in Brazil. It is the standard connector type for larger appliances.

The China GB2099 3Pin is a 2 pole, grounded plug that is rated for 16A and 250V. This is the standard heavy duty 250V power plug for china.

The CEE7/16 2 pin plug configuration is rated for 250VAC and 2.5Amps. It is commonly refered to as the "Euro-plug" and is one of the most widely used plug types around the world. The common application is for powering smaller devices throughout Europe, since the plug type is only rated for 2.5 amperes.

The Europe CEE7/16 2Pin is a 2 pole, ungrounded plug that is rated for 250V and 2.5A. Also known as the Europlug, this is physically not compatible with similar looking receptacles installed in the UK and Ireland, due to protection against over current and conflicting legislative safety standards.

The AS/NZS 3112 2 Pin Plug (Male) configuration is rated for 250VAC and 2.5Amps in Australia and New Zealand. It can be energized by plugging into the 3112 3pin receptacle.

The Australia AS/NZS 3112 3 Pin is the standard 3 Pin plug for Australia, New Zealand, Fiji, Papua New Guinea and many other pacific island countries. This is a grounded plug with many different variations depending on the amperage rating. Due AS/NZS regulations, the "line" and "neutral" pins now must be insulated. The best way to determine what Australia AS/NZS 3112 3 Pin you need is by the ground pin which changes with the amperage rating. The 10A plug has similar thickness ground pin compared with line/load. The 15A plug has a slightly wider ground pin. The 20A plug has a thicker ground/line and load pin. The 25A plug has an inverted "L" shaped ground. The 32A plug has a sideways "U" shaped ground. The plugs are capable of upwards compadibility but not vice versa. (i.e. the 10A plug will fit in any connector).

The AFSNIT 107-2-D1 Connector (Female) type is rated for 250VAC and 16 Amps in Denmark. It is a grounded connector with 3 conductors, and also referred to as the international IEC type K connector.

The CEI23-50 10A Connector type is rated for up to 250VAC and 10Amps in Italy. It can only be mated with the CEI23-50 10A plug type.

The SEV1011 3 Pin 10A Connector (Female) is rated for 250VAC and 10A in Switzerland. It is the smaller configuration of the 16A and has a slightly different configuration spacing to prevent cross connection.

The SEV 1011 3 pin 16a plug type configuration is rated for 250VAC and 16 Amperes of power in Switzerland. It is also classified under the IEC type J type. The pins are square shaped and slightly larger than the 10 amp plug type pins. This prevents backwards compatibility and prevents electrical hazard.

The UK BS1363 Receptacle configuration is rated for 250VAC and 13 Amps in the United Kingdom. This receptacle is also referred to as the IEC type G and mates with the standard plug type in the United Kingdom to provide power to it.

The IRAM 2073 3 Pin 20A Plug (Male) configuration is rated for 250VAC and 20 Amperes in Argentina.This plug type is generally used for larger devices and has larger pins than the 10A configuration which will prevent cross connection.

The Brazil NBR14136 (3 Pin 3.7mm Grounded) is a 2 Pole, grounded rated for 250V and 16A. It is used for standard appliances in Brazil and connects to the Brazil NBR14136 standard grounded wall outlet.

The BS546 15A Connector is rated for 250VAC and 15 Amps globally. It is a grounded connector type, commonly found in South Africa and has 3 recessed holes to mate with the matching BS546 15A plug type.

The GB1002 2 pin 15A Plug (Male) configuration is rated for 15A and 250VAC in China.

The CEI23-50 10/16A Connector type is rated for up to 250VAC and 16Amps. It can be mated with both the CEI23-50 10A and 16A plug types for convenience to the user.

The Japan JIS8303 2-Pin 1-15P Plug is the Japanese equivalent to the NEMA 1-15P. It is rated for 15A and 125V.

The Japan JIS8303 Twist-Lock L5-20P utilizes twist lock functionality to reduce the chance of nuisance unplugging. This plug is identical to the NEMA L5-20P

The Japan JIS8303 Twist-Lock L6-20P utilizes twist lock functionality to reduce the chance of nuisance unplugging. This plug is identical to the NEMA L6-20P

The Thailand TIS 116-2549 plug configuration is rated for 250VAC and 16 Amps in Thailand. This configuration is also known as the IEC type O. It is the standard plug type for electrical use in Thailand for residential settings.
