30A 125V NEMA L5-30P Twist-Lock Power Cords | World Cord Sets

15–30 Amps125 voltsNEMA L5-30PULcULRoHSREACH

Reference guide:NEMA connector guide →

36

configurations

Not sure which cord you need?

Answer a few quick questions and we’ll narrow it down for you.

Match by picture

About 30A 125V NEMA L5-30P Twist-Lock Power Cords

Our L5 30 plugs are designed with care and feature the following conveniences

Crafted with durability in mind, these plugs are built to withstand the rigors of commercial use. They are engineered to last and ensure a long-lasting connection that will not need to be replaced any time soon. The twist-lock design guarantees a secure and hassle-free connection that does not require additional training or instruction for your installation team or equipment operators. This simplicity will reduce the possibility of an improper connection leading to power disruption. These power cables are utilized to supply power to a wide range of products, from industrial machinery to outdoor events, their adaptability makes them an asset in your tool kit. The L5-30R utilizes a dedicated safety ground pin which adds extra protection against electrical faults and keeps your team in a safer environment.

Adapting a power supply with NEMA L5-30R adapter cables

We stock a large variety of L5-30p adapter cables, a useful tool when accessing power from a L5 30 Receptacle when you do not have a matching plug type on your equipment. With these you can power your IEC320 cables, your Standard NEMA 125V Plugs or even adapt your 30 Amp receptacle to a 20 Amp connector with our Twist Lock adapter products.

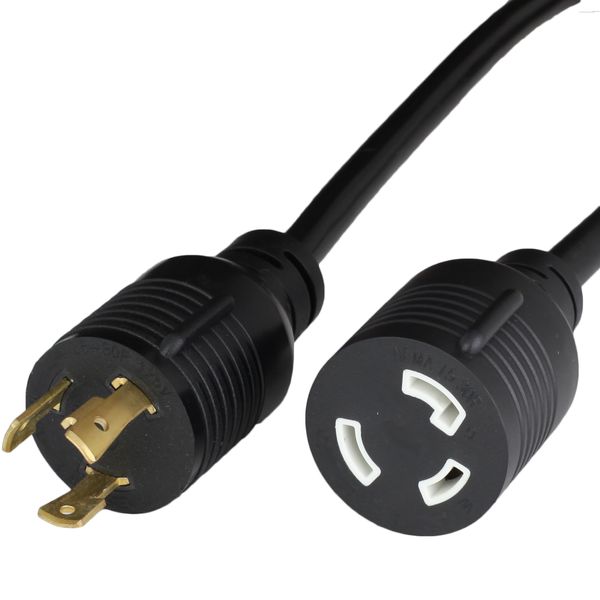

Extending a NEMA L5-30R receptacle with a 30a 125v extension cord.

If your power source is out of reach of the L5-30p power supply attached to your equipment, you will need to extend the power supply from the outlet to your connection point. This is a simple fix with the L5 30 extension cord. We stock many lengths with the same power rating as the outlet, so you will not lose any power by extending it.

Related collectionsL5-15P 26L6-15P 37L5-20P 54L6-20P 50L6-30P 49

The plugs and connectors in this collection

What each end is, what it mates with, and where to find every cord built on it.

  • NEMA L5-30P plug

    Plug · NEMA

    NEMA L5-30P

    • 30 Amps
    • 125 volts

    On 24 of the cords here (67%)

    Mates with NEMA L5-30R Outlet

    You are on the NEMA L5-30P family page.

  • NEMA L5-30R connector

    Connector

    NEMA L5-30R

    • 30 Amps
    • 125 volts

    On 17 of the cords here (47%)

    The NEMA L5-30R is a twist-locking NEMA connector that is rated for 125VAC and 30 Amps of power in North America. It is designed to mate with the matching NEMA L5-30P Plug type. The Twist Lock configuration can lock into place by twisting the plug and connector after mating. This is an effective solution for high-traffic areas and powering equipment like electrical motors that should not be unplugged under load.

    Mates with NEMA L5-30P Inlet

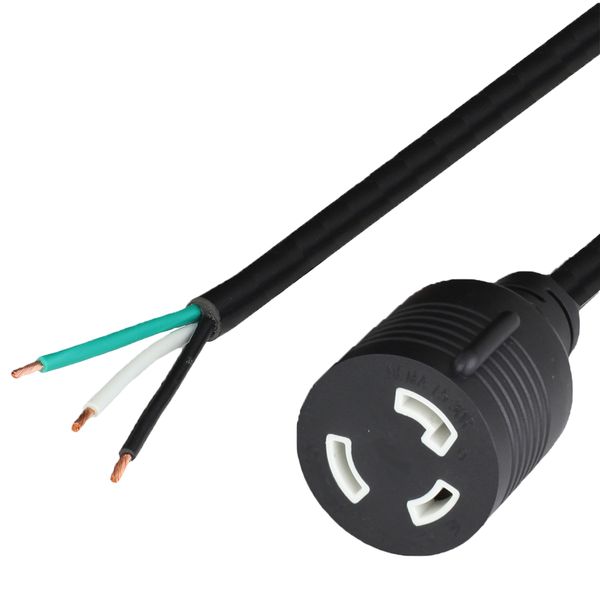

    Shop all NEMA L5-30R (Female) to OPEN (WHIPS PIGTAILS) →

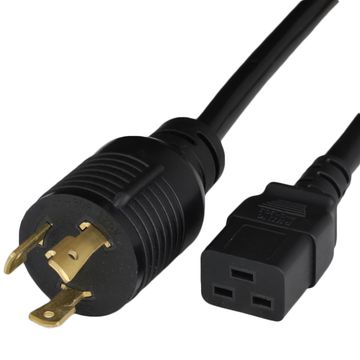

  • IEC 60320 C19 connector

    Connector · IEC 60320

    IEC 60320 C19

    • 20 Amps
    • 125/250V

    On 2 of the cords here (6%)

    The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.

    Mates with IEC 60320 C20 Inlet

    Shop all IEC 60320 C20 C19 Power Cords →

About 30A 125V NEMA L5-30P Twist-Lock Power Cords | World Cord Sets

The NEMA L5-30P Power Cords are used for many applications to supply power to larger 125V equipment in North America. This series comes with extension cables for identical connections as well as adapter cables. If the closest power source to your equipment is a NEMA L5-30R Outlet, then this product series is for you. The twist lock design offers a secure connection point with a dedicated ground for electrical protection.

Related

Choosing the Right NEMA L5-30P Cord for Your Application

Extension Cords vs. Adapter Cords

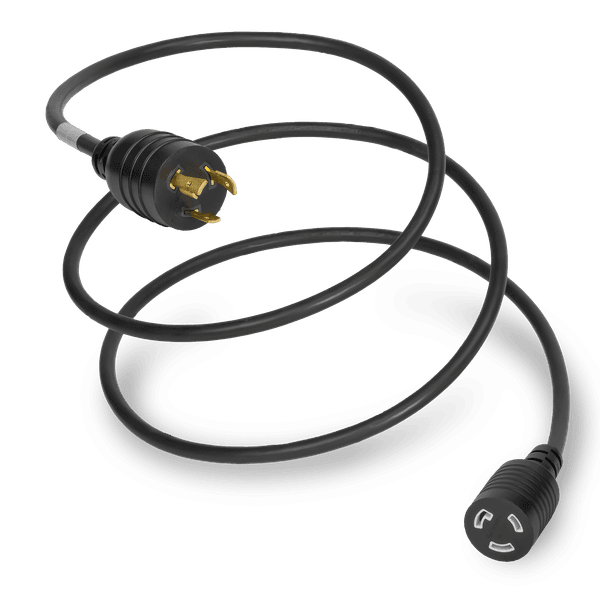

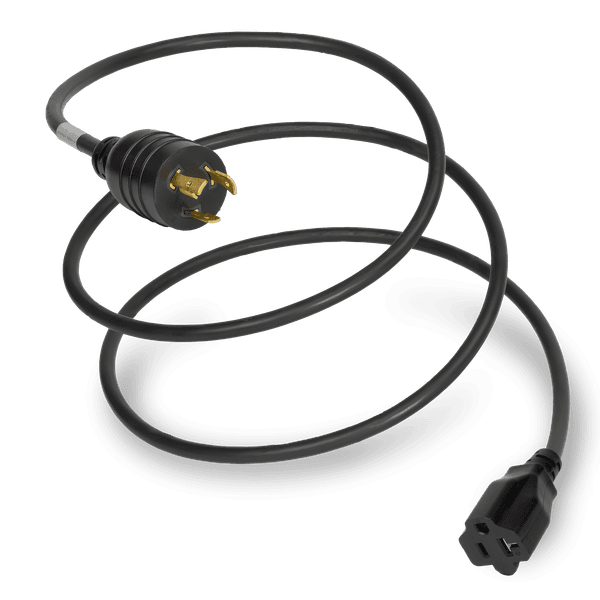

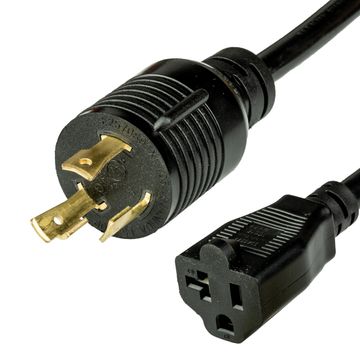

This collection contains two distinct product types. Extension cords (L5-30P to L5-30R) carry the full 30-amp rating and simply add length between a generator, transfer switch, or power panel and your equipment. Adapter cords (L5-30P to C13, C19, 5-20R, or L5-20R) let you power equipment whose inlet does not match the L5-30R outlet — common in data centers and AV installations where a single 30A circuit feeds multiple lower-amperage devices.

Wire Gauge and Circuit Loading

Full 30-amp runs use 10 AWG SJT cordage. Adapter cords that step down to a 20-amp connector use 12 AWG, and the C13 adapter uses 14 AWG to match the connector's 15-amp rating. Never exceed the amperage rating of the lowest-rated component in the circuit.

Certifications

  • UL and cUL listed — meets US and Canadian safety standards
  • RoHS and REACH compliant — required for many OEM and government procurement programs
  • Every cord is hi-pot tested before shipment

Ordering in Volume

No minimum order quantity. Volume pricing tiers are shown on each product page. For large or recurring requirements, blanket orders and custom lengths are available — contact our sales team or use the Instant Quote tool.

Current rating

15–30 Amps

Voltage rating

125 volts

Plug (male end)

NEMA L5-30P

Certifications & compliance

  • UL
  • cUL
  • RoHS
  • REACH
  • Every cord we build is hi-pot tested
  • Same-day shipping by 2:30 PM ET
  • NET 30/60/90 for approved accounts
  • In-house engineering and compliance support

Frequently asked questions

What is the difference between NEMA L5-30P and NEMA 5-30P?
The NEMA L5-30P is the locking version: its blades are curved so the plug twists and locks into a matching L5-30R receptacle, preventing accidental disconnection. The NEMA 5-30P is the straight-blade, non-locking equivalent rated for the same 125V / 30A circuit. If your receptacle has curved slots arranged in a circle, you need the L5-30P. If it has straight parallel slots, you need the 5-30P.
What wire gauge do NEMA L5-30P cords use?
Most cords in this collection use 10 AWG SJT cordage, which is rated for the full 30-amp circuit load. Adapter cables that step down to a 20-amp connector (such as L5-30P to NEMA 5-20R or L5-20R) use 12 AWG SJT, and the L5-30P to C13 adapter uses 14 AWG SJT to match the 15-amp C13 rating. Wire gauge is listed on every product page.
What receptacle does an L5-30P plug mate with?
The NEMA L5-30P plug mates with a NEMA L5-30R receptacle — a 125V, 30-amp twist-locking outlet common on generators, transfer switches, and industrial power panels. The plug will not fit a straight-blade 5-30R outlet. If your outlet is a different type, adapter cords in this collection let you connect 20-amp IEC C19, C13, NEMA 5-20R, or L5-20R equipment to an L5-30R source.
Can I use an L5-30P cord on a generator?
Yes. Many portable and standby generators include a NEMA L5-30R outlet for 125V / 30A loads. An L5-30P cord set connects directly to that outlet. For powering multiple pieces of equipment from one generator receptacle, adapter cords (L5-30P to NEMA 5-20R or L5-30P to C19) are available in this collection. Always verify the generator's rated output before connecting loads.
