15A 125V NEMA L5-15P Twist-Lock Power Cords

15 Amps125 voltsNEMA L5-15PULcULRoHSREACH

Reference guide:NEMA connector guide →

26

configurations

Not sure which cord you need?

Answer a few quick questions and we’ll narrow it down for you.

Match by picture

About 15A 125V NEMA L5-15P Twist-Lock Power Cords

Common uses for the NEMA L5 15 twist lock cables.

The NEMA L5-15P Plug type will mate securely to a 15A 125V L515R Outlet. These power sources are generally located in commercial and some industrial settings to supply power to small devices in environments where there is high traffic or a critical system that should not be unplugged. These include office cubicle PDUs, various PDU Power Supplies, smaller equipment in industrial settings or household work shops and commercial store point of sale systems.

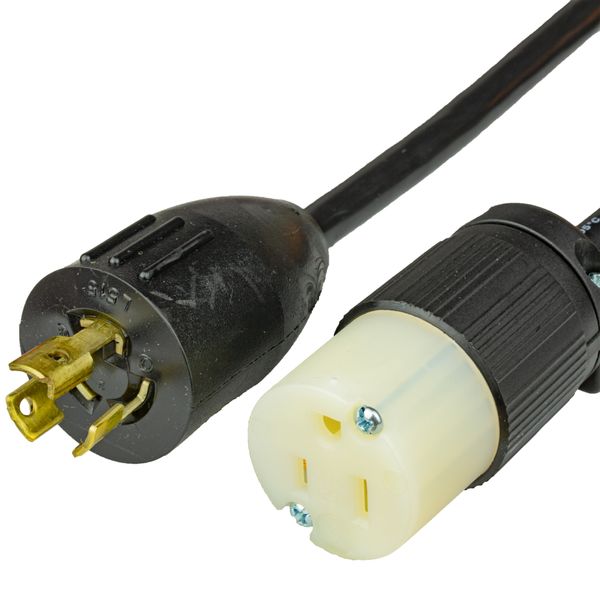

Adapt your L5-15r receptacle to a standard outlet with a L5 15p to 5 15r power cable.

In situations where you need to bridge different connectors, our L5-15P to 5-15R adapters offer the perfect solution. They ensure compatibility and a secure connection between your available NEMA L5 15 receptacle, and the 5-15P plug that you need to supply power to.

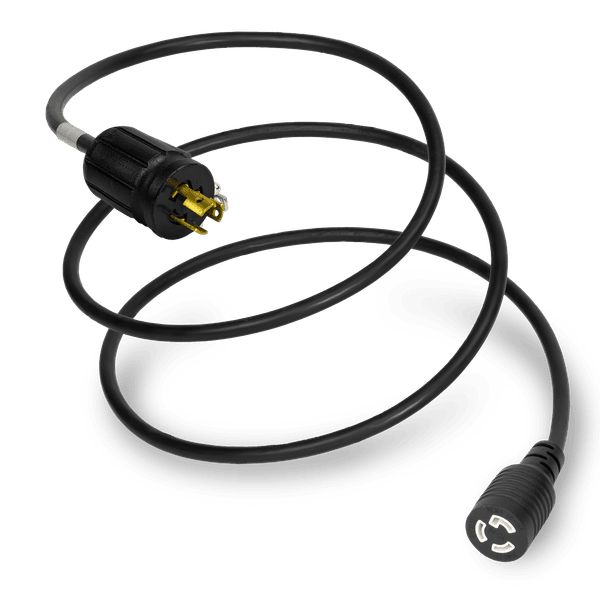

Extending a L5-15R twist lock receptacle with a NEMA L5-15p/r extension cord.

If your equipment requires a L5-15r twist lock power source, but it is too far away to plug in with the power supply cable, you will need to extend the power source using an extension cable. This is a simple solution and will not deprecate the power supply. We stock many lengths to help our customers no matter how short they come up with their L5-15P plug.

Related collectionsL6-15P 37L5-20P 54L6-20P 50L5-30P 36L6-30P 49

The plugs and connectors in this collection

What each end is, what it mates with, and where to find every cord built on it.

  • NEMA L5-15R connector

    Connector

    NEMA L5-15R

    • 15 Amps
    • 125 volts

    On 16 of the cords here (62%)

    The NEMA L5-15R is a twist-locking NEMA connector that is rated for 125VAC and 15 Amps of power in North America. The Twist Lock configuration can lock into place by twisting the plug and connector after mating. This is an effective solution for high-traffic areas and powering equipment like electrical motors that should not be unplugged under load.

    Mates with NEMA L5-15P Inlet

    You are on the NEMA L5-15R family page.

  • NEMA L5-15P plug

    Plug · NEMA

    NEMA L5-15P

    • 15 Amps
    • 125 volts

    On 14 of the cords here (54%)

    The NEMA L5-15P is a 3 Wire 3 Blade grounded plug featuring 3 Blades arranged in a tight circular pattern rated up to 125V AC and 15 Amps.. The plug locks to the connector by twisting into place. Locking cords are typically used in industrial applications to ensure that accidental power loss does not occur due to a loose connection.

    Mates with NEMA L5-15R Outlet

    Shop all Black NACC Power Whip NEMA L5-15P to Open Ended 2" ROJ 1/4" Strip 15A 125V →
  • IEC 60320 C13 connector

    Connector · IEC 60320

    IEC 60320 C13

    • 15 Amps
    • 125/250V

    On 4 of the cords here (15%)

    The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.

    Mates with IEC 60320 C14 Inlet

    Shop all IEC 60320 C14 C13 Power Cords →

About 15A 125V NEMA L5-15P Twist-Lock Power Cords

The NEMA L5-15P Product series is the lowest rated product line of our twist lock series. Engineers and installers generally install this locking outlet due to high-traffic in the area it is being installed. These power cables are rated for 125 Volts and 15 Amperes of power, so they are no different from a standard power supply cord but they provide a secure connection to the power source. This can be especially useful for critical systems like a point of sale, or a Power Distribution Unit supplying power to a handful of employee desks.

General Information

The NEMA L5-15P Twist-Lock Power Cord Series is rated up to 125V and 15A. The plug can be locked into place on the matching receptacle which prevents nuisance disconnection. This feature makes this plug popular in commercial and industrial settings where high traffic or moving of equipment is common. If you do not require this added locking safety feature, you should look into our NEMA 5-15P Power Cord Series, unless you are specifically connecting to a L5-15R. Consult with your team to determine the best power cord for your needs.

What Is the NEMA L5-15P Plug and When Do You Need It?

The NEMA L5-15P is a 3-wire, 125 V, 15 A twist-locking plug defined by NEMA standard WD-6. Its three blades are arranged in a circular pattern; inserting and rotating the plug locks it mechanically to a matching NEMA L5-15R receptacle, preventing accidental disconnection.

Typical applications

  • PDU whips — connecting a power distribution unit to a locking wall or floor receptacle in a server room or data center
  • Point-of-sale systems — high-traffic retail counters where a kicked cord would cause a transaction failure
  • Office cubicle PDUs — under-desk power strips fed from a locking circuit
  • Light industrial equipment — motors and tools in workshops where vibration could loosen a standard plug

How it differs from a standard NEMA 5-15P

A NEMA 5-15P (the everyday flat-blade plug) and an L5-15P carry identical voltage and amperage ratings, but the L5-15P adds the twist-lock retention feature. If your receptacle is a straight-blade 5-15R, use a NEMA 5-15P cord instead — the two plug types are not interchangeable.

Cord ratings in this collection

Every cord here is rated 125 V / 15 A, built on 14 AWG SJT or SJTOW cordage, and carries UL and cUL listings. All units are hi-pot tested before shipment.

Related

Current rating

15 Amps

Voltage rating

125 volts

Plug (male end)

NEMA L5-15P

Certifications & compliance

  • UL
  • cUL
  • RoHS
  • REACH
  • Every cord we build is hi-pot tested
  • Same-day shipping by 2:30 PM ET
  • NET 30/60/90 for approved accounts
  • In-house engineering and compliance support

Frequently asked questions

What is the difference between NEMA L5-15P and NEMA L5-15R?
L5-15P is the plug (the male end with blades) found on the cord. L5-15R is the receptacle (the female outlet mounted in a wall, floor box, or PDU). The two mate together: you insert the L5-15P into the L5-15R and twist to lock. When ordering a cord, confirm which end connects to your outlet and which end connects to your equipment.
Can I use an L5-15P cord on a standard 15A wall outlet?
No — a NEMA L5-15P plug will not fit a standard NEMA 5-15R straight-blade outlet because the blade geometry is different. However, World Cord Sets offers L5-15P to NEMA 5-15R adapter cords that let you draw power from a straight-blade outlet and deliver it through a locking connection. See the L5-15P → 5-15R family in this collection.
What wire gauge and cordage type are these cords built on?
All cords in this collection use 14 AWG, 3-conductor cordage — either SJT (indoor, thermoplastic jacket) or SJTOW (outdoor-rated, oil-resistant jacket). 14 AWG is the correct gauge for a 15 A, 125 V circuit and is required by UL for this plug type. The cordage type for each SKU is listed on its individual product page.
Do these cords ship the same day, and is there a minimum order quantity?
In-stock cords ship same day when ordered by 2:30 PM ET via FedEx or UPS. There is no minimum order quantity — orders from a single cord to 100,000 units are accepted. Volume pricing tiers are shown on each product page. Made-to-order configurations typically require additional lead time; contact sales for details.
