3 Wire IEC 60309 Power Cables
121
configurations
The 60309 3-wire 32a IP44 plug.
This plug is found a lot in data center settings to access power from a power drop or an IEC 60309 power outlet under the floor of a data center. These power cables are significantly less expensive than the heavy duty IP67 plugs and connectors and are commonly paired with NEMA and IEC 60320 Connectors because of their low voltage and amperage ratings. The IP44 rating refers to the rating of the housing to prevent particle from entering, for this case IP44. This rating is also known as Splash-Proof, which will prevent water from entering unless it is submerged.
IEC60309 3 pin adapter cords to IEC 60320
We make IEC309 to IEC320 3 Pin Adapter cords on a Made-To-Order Basis. These power cables are commonly used in Data Centers to Supply power to a Power Distribution Unit from a Power Drop, or to power a single Device from a power Drop. If you cannot find a specific configuration or length for your application, please reach out to our sales team for a prompt quote.
Splashproof vs. Weatherproof 60309 3 pin plugs and connectors.
For this 3 Pin series of IEC 60309 cables, we tend to use the “Splashproof” or IP44 rated plug types much more frequently than other product lines. This is because these lower rated power cables tend to be used for indoor locations where weather and water are not an issue. IP44 is a general rating for electrical equipment that classifies the Ingress protection of solids and liquids. IP44 will protect against 1.0mm particles of dust, and splashes of water. Weatherproof connectors listed at IP67 prevent all dust and temporary water immersion from entering the enclosure.
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
Made to orderColor — Black
Length — 3 Feet
Made to orderColor — Black
Length — 3 Feet
Made to orderColor — Black
Length — 3 Feet
Made to orderColor — Black
Length — 3 Feet
Made to order14 AWG15 Amps250 voltsULcULRoHSColor — Black
Length — 3 Feet
Made to order14 AWG15 Amps250 voltsULcULRoHSColor — White
Length — 3 Feet
Made to orderColor — Black
Length — 3 Feet
Made to orderColor — Black
Length — 3 Feet
- Made to order
Color — Black
Length — 4 Feet
Made to order14 AWG15 Amps250 voltsULcULRoHSColor — Black
Length — 3 Feet
- Made to order
Made to orderColor — Black
Length — 3 Feet
Made to orderColor — Black
Length — 3 Feet
Made to orderColor — Black
Length — 1 Foot
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Plug
IEC 60309 316P6/320P6 (20/16A 250/230VAC)
- 20 Amps
- 16 Amps
On 112 of the cords here (93%)
You are on the IEC 60309 316P6/320P6 (20/16A 250/230VAC) family page.
Connector · IEC 60320
IEC 60320 C13 Locking (A-Lock)
- 15 Amps
- 125/250V
On 16 of the cords here (13%)
Mates with IEC 60320 C14 Inlet
Connector
IEC 60320 C15 Locking (A-Lock)
- 15 Amps
- 125/250V
On 16 of the cords here (13%)
Mates with IEC 60320 C16 Inlet
Connector · IEC 60320
IEC 60320 C13
- 15 Amps
- 125/250V
On 9 of the cords here (7%)
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.
Mates with IEC 60320 C14 Inlet
Connector · IEC 60320

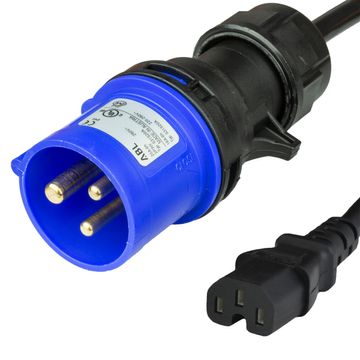

IEC 60320 C15
- 15 Amps
- 125/250V
On 9 of the cords here (7%)
The IEC 320 C15 Power cable is used to power electrical devices that emit so much heat (intentionally or unintentionally) that they require a power connection that can withstand more than the 70 °C (158 °F) temperature rating of the standard C13. In combination with the C14 plug type, the use cases of this high-temperature cable are almost exclusively data center environments. This cable would most likely be found supplying a High-Powered Switch power from a rack-mounted PDU power supply source. If your equipment has a IEC320 C16 Inlet it should only be mated with the matching C15-Power Connector.
Mates with IEC 60320 C16 Inlet
Connector · IEC 60320

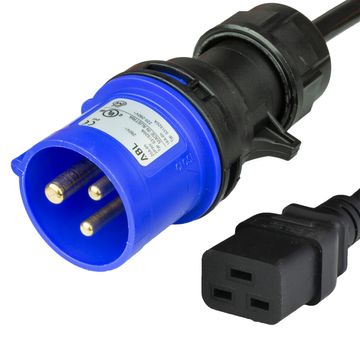

IEC 60320 C19
- 20 Amps
- 125/250V
On 9 of the cords here (7%)
The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
Mates with IEC 60320 C20 Inlet
About 3 Wire IEC 60309 Power Cables
The IEC 60309 3 Pin power cables are generally used for lower power industrial applications, in conjunction with a NEMA or IEC 60320 Connector type for power supply purposes. For example the IEC309 to IEC320 Adapter cords are often used in Data Centers to energize Power Distribution Units from a Power Drop above the Data-Rack. There are many other applications for these Light-Duty industrial power cables, check out what product lines we have to offer and do not hesitate to reach out to our sales team if you cannot find the configuration your looking for.
Current rating
15–30 Amps
Voltage rating
250 volts
Certifications & compliance
- UL
- cUL
- RoHS
- TAA Compliant
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
