International IEC Type E, F and E/F | Schuko Power Cables
Reference guide:International power connector guide →
40
configurations
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
Made to orderColor — Black
Length — 1 Foot
In stock (1)Color — Black
Length — 2.5 meters
In stock (197)Color — Black
Length — 10 Feet
In stock (4)Color — Black
Length — 6 Feet
In stock (1)250 voltsVDERoHSColor — Black
Length — 2.0 meters
In stock (1)Color — Black
Length — 2.5 meters
Made to orderColor — Black
Length — 2.0 meters
- Made to order
Color — Black
Length — 2.0 meters
- Made to order
Color — Black
Length — 10 Feet
Made to order250 voltsVDERoHSColor — Black
Length — 2.5 meters
Made to orderColor — Black
Length — 2.5 meters
- Made to order250 voltsComponent ApprovalsRoHS
Color — Black
Length — 1.0 meter
- Made to order250 voltsVDERoHS
Color — Black
Length — 10 Feet
- Made to order
Color — Black
Length — 12 Feet
Made to orderColor — Black
Length — 2.0 meters
Made to orderColor — Black
Length — 1.0 meter
Made to orderColor — Black
Length — 2.5 meters
Made to order250 voltsVDEKEMARoHSColor — Black
Length — 2.5 meters
- Made to order250 voltsVDERoHSTAA Compliant
Color — Black
Length — 2.5 meters
Made to orderColor — Black
Length — 3.0 meters
About International IEC Type E, F and E/F
The schuko CEE7/7 power cables.
The CEE7/7 is the standard created by German engineers for a power plug type centered around safety. The standard was quickly adopted by the European union as the standard power plug type for their jurisdiction. Schuko is an acronym of the German word “Schutzkontakt” meaning safety contact, which is visible and the most distinguished part of the plug type. The type E/F is a hybrid plug type that blended the best features of the E and F types.
Types of schuko power plugs
There are three primary types of this plug, that were recently merged into a Hybrid E/F that is now the standard for power cable plug types for the region. The Type F receptacle will accept Type C, Type E, Type F and Type E/F. The original type E provided a ground connection with a female pin to slot connection type, while the newer F and E/F use exterior metal earthing plates as they provide the easiest path to ground in the event of an electrical short and protect the end users more effectively.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Plug · International
European Schuko CEE7/7 - Straight
- 16 Amps
- 250 volts
On 33 of the cords here (83%)
The plug (MALE) is a Type F Schuko CEE7/7. It fits both E (France) and F (European / Germany) type outlets (sockets). Available in straight or down/up angle orientation. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground.
Mates with Schuko CEE7/7 Outlet
You are on the European Schuko CEE7/7 - Straight family page.
Connector · IEC 60320
IEC 60320 C13
- 15 Amps
- 125/250V
On 13 of the cords here (33%)
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.
Mates with IEC 60320 C14 Inlet
Connector · IEC 60320

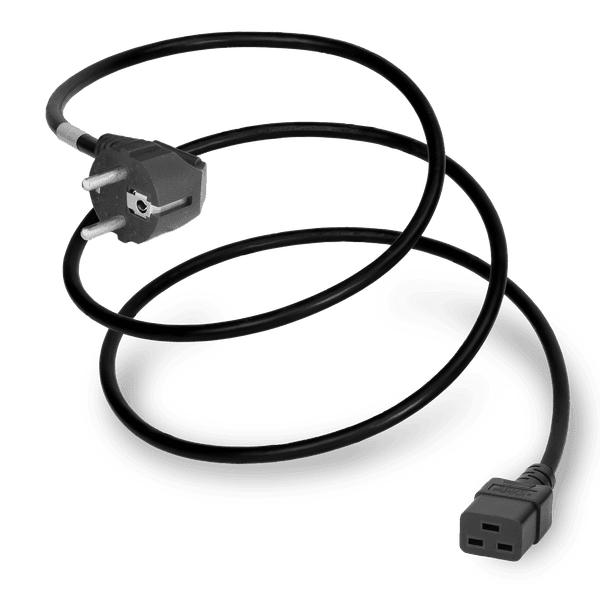

IEC 60320 C19
- 20 Amps
- 125/250V
On 7 of the cords here (18%)
The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
Mates with IEC 60320 C20 Inlet
Plug · International

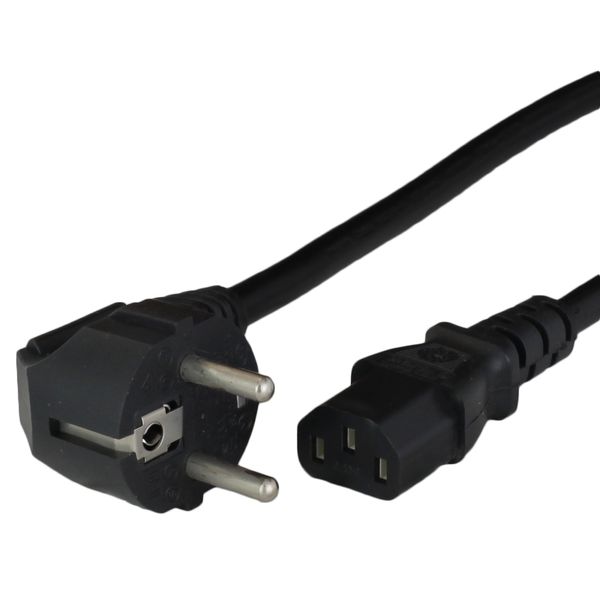

European Schuko CEE7/7 - Down Angle
- 16 Amps
- 250 volts
On 7 of the cords here (18%)
The plug (MALE) is a Type F Schuko CEE7/7. It fits both E (France) and F (European / Germany) type outlets (sockets). Available in straight or down/up angle orientation. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground.
Mates with Schuko CEE7/7 Outlet
You are on the European Schuko CEE7/7 - Down Angle family page.
Connector

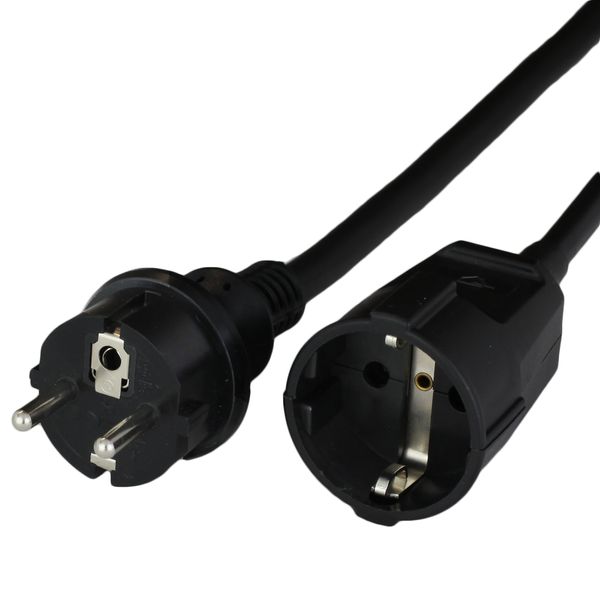

Europe Schuko CEE7/3 (Female)
- 16 Amps
- 250 volts
On 6 of the cords here (15%)
The connector (FEMALE) is a Type F Schuko CEE7/3 which accepts the Type F Schuko CEE7/7 plug.
For use in international projects in Europe, Germany, Algeria, Austria, Azerbaijan, Belarus, Belgium, Bosnia and Herzegovina, Brunei, Bulgaria, Burundi, Cameroon, Cape Verde, Central Africa Rep, Chad, Comoros, Congo Democratic Republic, Croatia, Czech Republic, Djibouti, Egypt, Eritrea, Finland, France, French Guiana, Gabon, Georgia, Germany, Greece, Greenland, Guadeloupe, Guinea, Guinea-Bissau, Hungary, Iceland, Indonesia, Jordan, Kazakhstan, South Korea, Kyrgyzstan, Liechtenstein, Luxembourg, Macedonia, Madagascar, Mali, Martinique, Monaco, Montserrat, Morocco, Mozambique, Netherlands, Netherlands Antilles, New Caledonia, Norway, Philippines, Portugal, Reunion, Romania, Russia, San Marino, Senegal, Serbia and Montenegro, Slovenia, Spain, Suriname, Sweden, Syria, Togo, Tunisia, Turkey, Ukraine, Vietnam.Mates with Schuko CEE7/7 Inlet/Plug
Connector

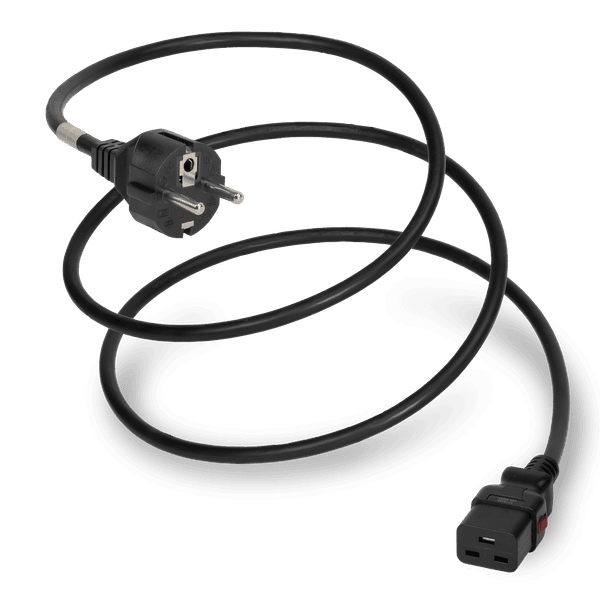

IEC 60320 C19 Locking (A-Lock)
- 20 Amps
- 125/250V
On 4 of the cords here (10%)
The IEC 60320 C19 Locking Connector is rated for 20 Amps and 250VAC. It is a grounded connector type, with the A-Lock feature for latching the connector in place once it is mated. The A-Lock is a universal locking mechanism that internally pinches the pins of the male/inlet that it connects with. This effectively holds the connector in place until the user pinches and pulls back the two red tabs located on either side of the connector body.
Mates with IEC 60320 C20 Inlet
About International IEC Type E, F and E/F | Schuko Power Cables
The Schuko Plug Type, also known as CEE7/7 or Type E/F is the most used plug in Europe. In countries that do not have their own 250 Volt plug type, they will often use the Schuko because of its robust design and superior safety features. This plug type is rated for 16 Amperes of power. We utilize the E/F configuration for our power cables because of the superior safety of the grounding feature.
Related
- Schuko CEE7/7 to C13 Power Cords
- Schuko CEE7/7 to C19 Power Cords
- International Power Cord Approvals Guide
- Build a Custom Schuko Power Cord
- Same-Day Shipping Power Cords
Choosing the Right Schuko CEE7/7 Power Cord for Your Application
Plug orientation: straight vs. down-angle
Straight CEE7/7 plugs are the default for most rack and panel installations where clearance behind the outlet is not a concern. Down-angle plugs reduce the cord's footprint at the wall outlet and are preferred in tight equipment bays or when cords must route parallel to a surface.
Connector and amperage selection
Match the device-end connector to the inlet on your equipment:
- C13 (10 A) — standard servers, switches, routers with C14 inlets
- C19 (16 A) — high-draw blade chassis and PDUs with C20 inlets

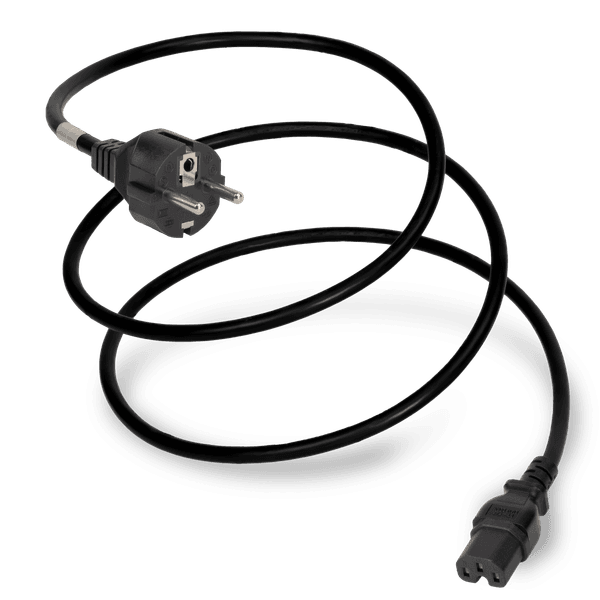

- C15 (10 A, high-temp) — equipment that runs hot, such as certain switches and PoE gear

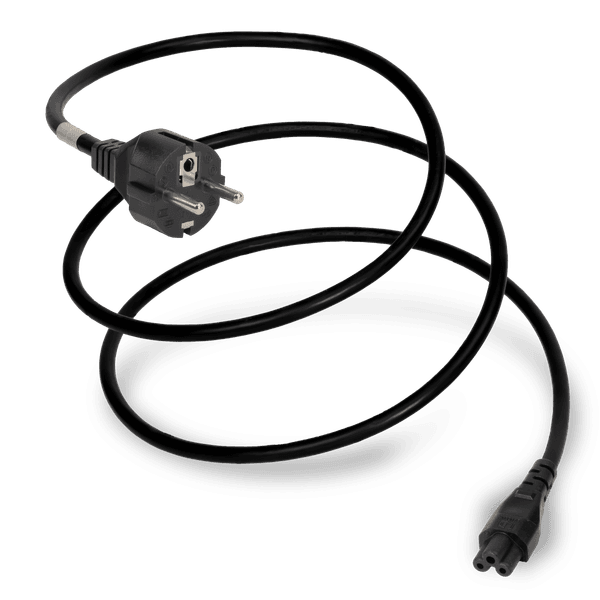

- C5 (2.5 A) — laptops and small appliances
Cordage and compliance
Most cords use H05VV-F PVC cordage rated at 300/500 V. LSZH (low-smoke zero-halogen) cordage is available for plenum or enclosed-space deployments where fire-safety codes require it. VDE approval is standard on 36 of the 40 SKUs here, covering Germany and most EU member states. TAA-compliant variants are stocked for US federal procurement.
Current rating
2.5–16 Amps
Voltage rating
250 volts
Certifications & compliance
- VDE
- RoHS
- TAA Compliant
- KEMA
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What is the difference between IEC Type E, Type F and Type E/F (Schuko)?
- Type E (France/Belgium) grounds through a male pin on the outlet that inserts into a female socket in the plug. Type F (Germany/most of Europe) grounds through two metal earthing clips on the sides of the plug. Type E/F (CEE7/7) is the hybrid standard that incorporates both grounding methods, making it physically compatible with both Type E and Type F outlets. The CEE7/7 is now the dominant Schuko plug shipped on European power cords.
- Which IEC 60320 connectors are available on Schuko CEE7/7 power cords?
- The cords in this collection are available with the following IEC 60320 device-end connectors:C13 — 10 A, 250 V; mates with C14 inlets on servers, switches and PDUsC15 — 10 A, 250 V high-temperature variantC19 — 16 A, 250 V; mates with C20 inlets on high-draw blade servers and large routersC5 — 2.5 A, 250 V; used on laptops and small appliancesCEE7/3 female — Schuko-to-Schuko extension configurationAngled, locking (A-Lock, IEC-Lock) and splitter variants are also stocked.
- What certifications do these Schuko power cords carry?
- Certifications vary by SKU. The collection includes cords carrying:VDE — German electrical safety approval, accepted across the EU (on 36 of 40 SKUs)KEMA — Netherlands certificationENEC — pan-European markSEMKO — Swedish approvalRoHS — EU restriction of hazardous substances (all 40 SKUs)TAA Compliant — Trade Agreements Act, relevant for US government procurementFilter by certification on this page to narrow results to your required approval.
- What countries accept the Schuko CEE7/7 plug?
- The CEE7/7 Schuko plug is accepted in more than 40 countries. The cords in this collection are approved for use in Germany, Netherlands, Belgium, Austria, Czech Republic, Denmark, Bulgaria, Croatia, Albania, Algeria, Bosnia and Herzegovina, and many more. Use the Approved for use in filter on this page to confirm compatibility with your target country before ordering.
