International IEC Plug Type I Power Cords | Australia, New Zealand & Argentina Power
Reference guide:International power connector guide →
40
configurations
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
In stock (2)Color — Black
Length — 6 Feet
In stock (1)Color — Black
Length — 6 Feet
In stock (63)Color — Black
Length — 6 Feet
In stock (90)250 voltsArgentina IRAMRoHSREACHColor — Black
Length — 2.5 meters
In stock (101)Color — Black
Length — 6 Feet
In stock (24)Color — Black
Length — 2.5 meters
Made to orderColor — Black
Length — 8 Feet
In stock (11)Color — Black
Length — 2.5 meters
Made to orderLength — 6 Feet
Made to orderColor — Black
Length — 6 Feet
Made to orderColor — Black
Length — 2.5 meters
Made to orderColor — Black
Length — 6 Feet
Made to orderColor — Black
Length — 6 Feet
Made to orderColor — Black
Length — 6 Feet
Made to orderColor — Black
Length — 8 Feet
- Made to order
Color — Black
Length — 2.5 meters
Made to orderColor — Black
Length — 2.5 meters
Made to order250 voltsRoHSColor — Black
Length — 1.0 meter
- Made to order250 voltsComponent ApprovalsRoHS
Color — Black
Length — 1.0 meter
Made to orderColor — Black
Length — 3.0 meters
Made to orderColor — Black
Length — 2.5 meters
Made to orderColor — Black
Length — 2.5 meters
- Made to order250 voltsArgentina IRAMRoHS
Color — Black
Length — 2.5 meters
- Made to order250 voltsArgentina IRAMRoHS
Color — Black
Length — 2.5 meters
About International IEC Plug Type I Power Cords
3 pin 10 amp vs. 16 amp plug type I & non-grounded version.
The 10 Amp and 16 Amp look identical at a glance; however, the 16 Amp version has a wider grounding blade which prevents it from being inserted into the 10 Amp receptacle. The Type I Configuration also is available, and the amperage rating varies based on the country’s electrical standards, for example AS/NZ 3112 2 pin is rated for 7.5 Amps, while the China GB1002 2 Pin and IRAM 2063 is rated for 2.5 Amps.
Chinese CCC approval agency & China GB2099 and GB1002 standards.
The power cables used in China are built to the GB2099 and GB1002 set of standards respectively. The GB2099 Standard encompasses the 3 pin grounded plugs while the GB1002 covers the 2 pin 2.5 Amp non-grounded plug types. The CCC or China Compulsory Certification is a requirement for products to be marked with before they can be sold in China, both for China made and imported products.

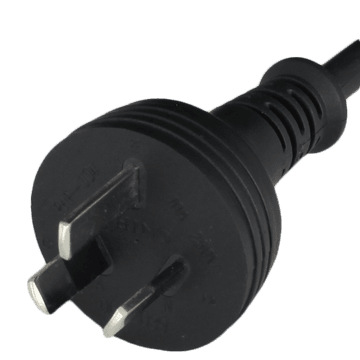

Type I Australian and New Zealand AS/NZS 3112 standards and SAA approval
The TYPE I Plugs used in Australia and New Zealand are built in compliance to AS/NZS 3112 set of standards and bear the SAA Approval, listing them as suitable products for use. Down under there are three primary plug types that are in use. The AS/NZS 3112 2 Pin is rated for 2.5 Amps. The other 2 plug types have ground pins with 3 total pins and are rated for 10 Amps and 15 Amps respectively.
Argentina IRAM 2073 type I plug power cables.
The Argentina Type I Power cables have been built to the standard of the IRAM 2073 and bear the IRAM approval. This cable is found around the world but must have these approvals to be used in Argentina. Argentina also employees UL Argentina for approvals of their cables, however IRAM is the more widely used approval agency for power cables. The electrical outlets in Argentina are the Type I Plug type with 3 angled blade openings for power supply. The plugs generally used are the IRAM 2073 for typical applications, and the IRAM 2063 for smaller devices requiring no more than 2.5 Amperes.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Plug · International

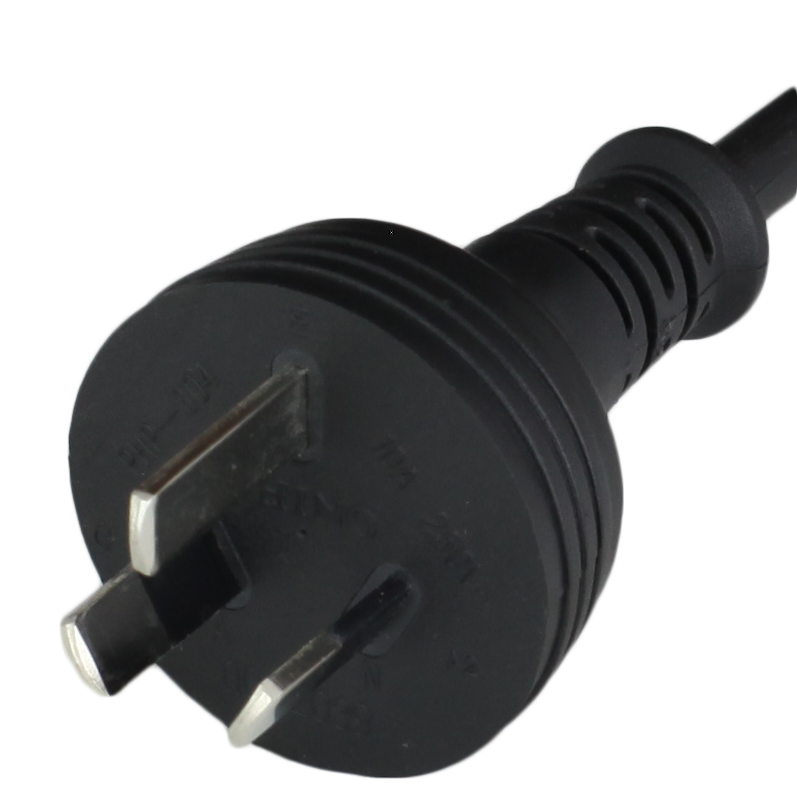

Argentina IRAM 2073 3 Pin (M) - 10A
- 10 Amps
- 250 volts
On 12 of the cords here (30%)
The IRAM 2073 3 Pin 10 Amp Plug (Male) is rated for 250VAC and 10 Amperes in Argentina. It is designed to mate with the matching 10A IRAM 2073 connector/ outlet.
Mates with IRAM 2073 3p 10A Outlet
Connector · IEC 60320

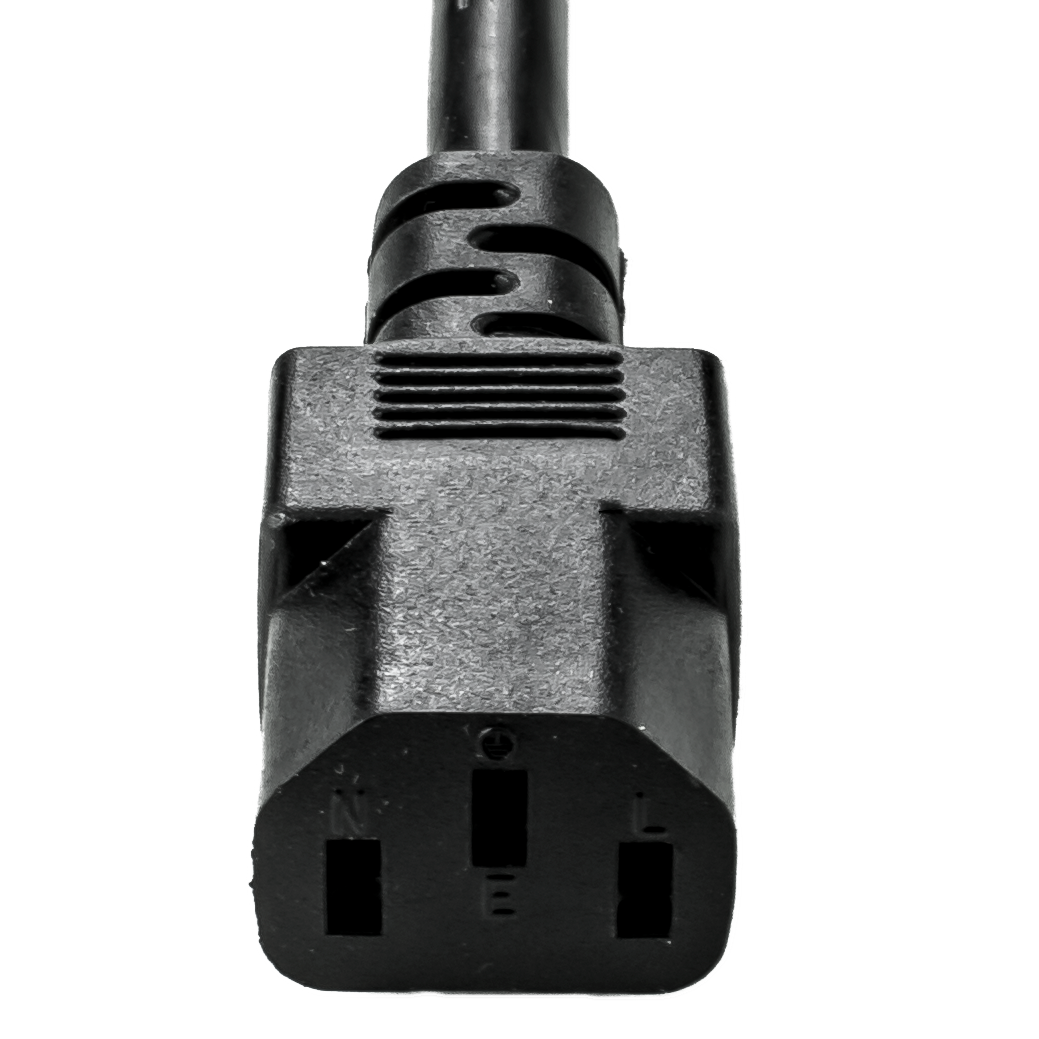

IEC 60320 C13
- 15 Amps
- 125/250V
On 8 of the cords here (20%)
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.
Mates with IEC 60320 C14 Inlet
Plug · International

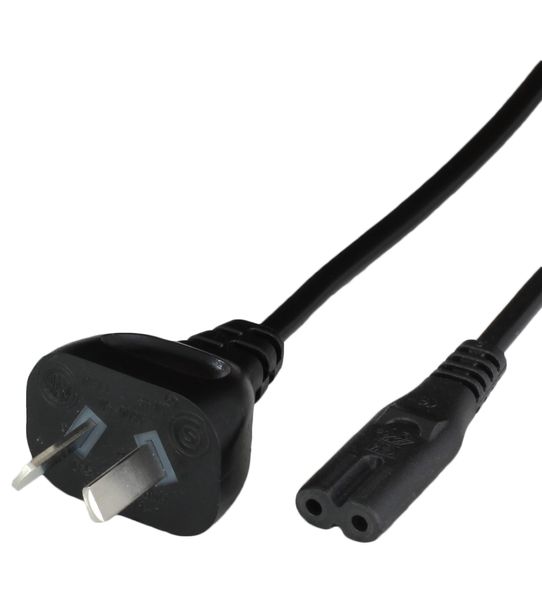

Argentina IRAM 2063 2 Pin (M) - 2.5A
- 2.5 Amps
- 250 volts
On 8 of the cords here (20%)
The IRAM 2063 2 Pin Plug (Male) configuration is rated for 250VAC and 2.5 Amps in Argentina. It is an un-grounded plug type and can plug into the 10A 3 Pin receptacle to access power.
Mates with IRAM 2073 3p 10A Outlet
Plug · International

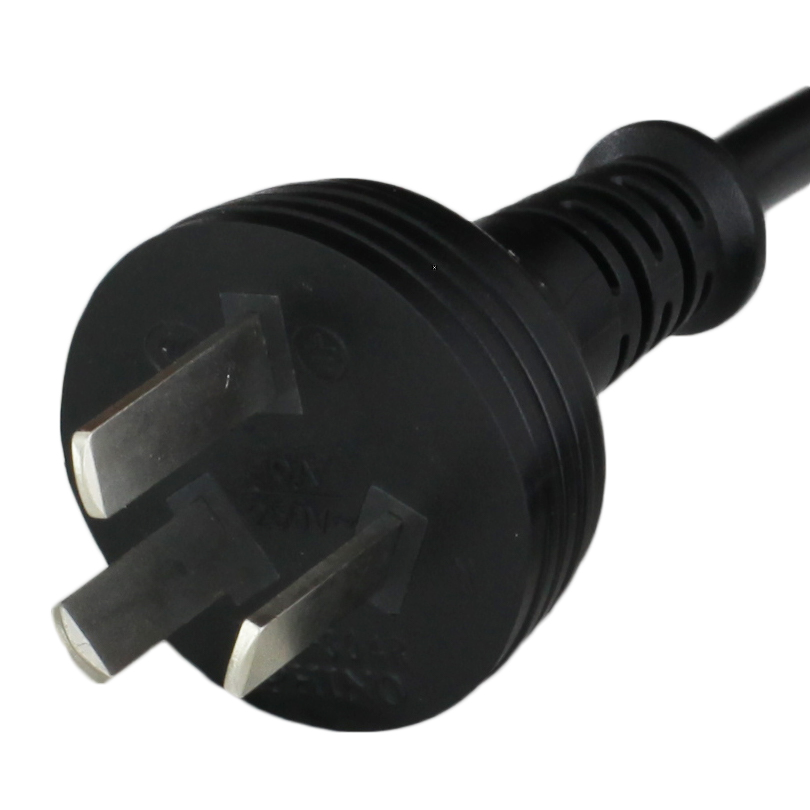

China GB2099 3Pin 10A Plug
- 10 Amps
- 250 volts
On 7 of the cords here (18%)
The GB2099 3P 10A Plug (Male) configuration is rated for 250VAC and 10 Amps in China. It is a grounded plug type and the standard plug type for this region for household devices.
Mates with GB2099 3P 10A Outlet
Connector · IEC 60320
IEC 60320 C19
- 20 Amps
- 125/250V
On 6 of the cords here (15%)
The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
Mates with IEC 60320 C20 Inlet
About International IEC Plug Type I Power Cords | Australia, New Zealand & Argentina Power
The IEC Type I Plug type is 3 pin, grounded plug with 2 oblique blades rated for 250VAC and 10 – 15 Amperes globally. It is the standard plug type for many countries globally, however the largest countries of note are Argentina, Australia, China and New Zealand. Each country has its own unique approval agency that will determine if the cable is listed for use in that country. Luckily, we stock many variations of each approval type for all of your Type I Power needs.
Choosing the Right Type I Power Cord: Standards, Approvals & Amperage
Which standard applies to your destination country?
Type I cords are not interchangeable across all markets. Each country's regulatory body mandates a specific standard and approval mark:
- Australia & New Zealand: AS/NZS 3112 with SAA approval — available in 2-pin (2.5 A), 3-pin 10 A, and 3-pin 15 A configurations.
- Argentina: IRAM 2073 (3-pin, 10 A or 20 A) and IRAM 2063 (2-pin, 2.5 A) with IRAM approval. Argentina also recognizes UL Argentina, but IRAM is the primary approval for power cables.
- China: GB2099 (3-pin, 10 A or 16 A) and GB1002 (2-pin, 2.5 A) with CCC (China Compulsory Certification). CCC is mandatory for both domestically produced and imported products sold in China.
10 A vs. 16 A: a critical physical difference
The 16 A Type I grounding blade is wider than the 10 A version. This is a deliberate safety feature — a 16 A plug cannot be inserted into a 10 A socket. Verify your device's rated current and the outlet standard at the installation site before selecting a cord.
Connector options at the equipment end
Most Type I cords on this page terminate in an IEC 60320 connector — C5, C7, C13, C15, or C19 — to match the inlet on your device. Right-angle (R/A) and left-angle (L/A) C13 variants are also available for tight rack or panel installations.
Related
Current rating
2.5–16 Amps
Voltage rating
250 volts
Certifications & compliance
- Dept. Fair Trading
- RoHS
- CCC
- Argentina IRAM
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What is an IEC Type I plug and which countries use it?
- IEC Type I is a plug standard featuring two or three flat, angled blades arranged in a V-shape. It is the standard outlet type in:Australia & New Zealand — AS/NZS 3112Argentina — IRAM 2073 (3-pin) and IRAM 2063 (2-pin)China — GB2099 (3-pin) and GB1002 (2-pin)The same blade geometry is also found in over 100 countries, including many in South America and the Pacific region.
- What is the difference between a 10 A and 16 A Type I plug?
- The 10 A and 16 A Type I plugs look nearly identical, but the 16 A version has a wider grounding blade. This dimensional difference is intentional: a 16 A plug physically cannot be inserted into a 10 A receptacle, preventing overload. Always match the cord's amperage rating to the device and outlet rating before ordering.
- What approvals do these Type I power cords carry?
- Approvals vary by cord and destination country:SAA — required for Australia and New Zealand (AS/NZS 3112)IRAM — required for Argentina (IRAM 2073 / IRAM 2063)CCC (China Compulsory Certification) — required for products sold or used in China (GB2099 / GB1002)All cords also carry RoHS compliance. Use the filter panel to narrow results by certification before adding to cart.
- Can I order Type I power cords in custom lengths or quantities?
- Yes. Many SKUs are available in multiple stock lengths (1 ft – 3.0 m). For non-standard lengths, configurations, or high-volume blanket orders, World Cord Sets offers custom builds and BOM support. Use the Power Cord Configurator or call (860) 763-2100 to discuss requirements. Same-day shipping is available on in-stock orders placed by 2:30 PM ET.
