International IEC Plug Type N Power Cables | NBR14136 Brazil Power
Reference guide:International power connector guide →
17
configurations
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
In stock (50)Color — Black
Length — 6 Feet
In stock (42)250 voltsINMETROTAA CompliantColor — Black
Length — 2.5 meters
Made to orderColor — Black
Length — 2.5 meters
Made to orderColor — Black
Length — 6 Feet
- Made to order
Color — Black
Length — 2.5 meters
- Made to order250 voltsINMETRORoHS
Color — Black
Length — 2.5 meters
Made to order250 voltsComponent ApprovalsRoHSColor — Black
Length — 1.0 meter
Made to order250 voltsComponent ApprovalsRoHSColor — Black
Length — 25 Feet
About International IEC Plug Type N Power Cables
Type N Brazil power plug NBR14136 power cords.
The type N power cords rated for use in Brazil will bear the INMETRO approval, signifying their conformances with the local jurisdiction for testing and materials used. These 3 Prong plugs are available with 10 Amp and 16 Amp ratings, the 16 amp plugs have slightly larger circumference pins and cannot be plugged into a 10 Amp Type N outlet.
Brazil electrical outlet types.
There are a few types of Brazilian power outlets, the 10 Amp type N and the 16 Amp type N to name the most common. The NBR 6147 2 Prong plug and 10A 14136 3 Prong Plug can fit into both, but the NBR 14136 3 Prong 16 Amp plug can only fit into the matching 16 Amp Type N outlet.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Plug · International
Brazil NBR14136 10A 250V (3 Pin 3.7mm Grounded)
- 10 Amps
- 250 volts
On 11 of the cords here (65%)
The NBR14136 10A Plug (Male) configuration is rated for 250VAC and 10 Amps in Brazil. It has 3 pins and a dedicated ground conductor.
Mates with NBR14136 10A Outlet
Connector

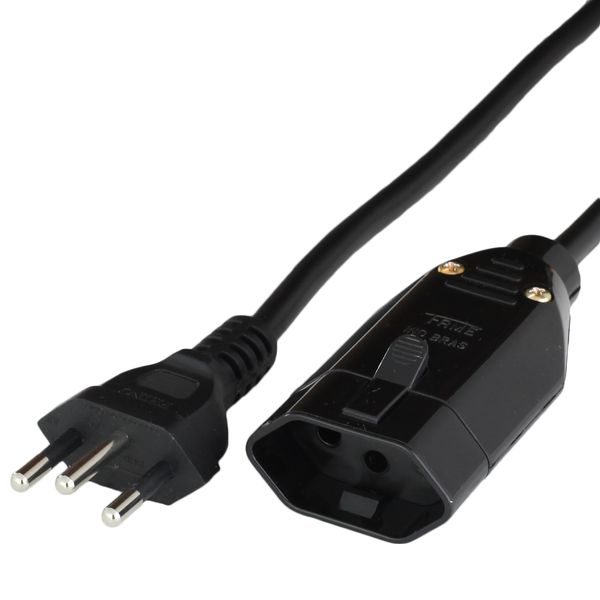

Brazil NBR14136 3PIN 10A 250V
- 10 Amps
- 250 volts
On 6 of the cords here (35%)
The NBR14136 3 Pin Connector (Female) type is rated for 250VAC and 10 Amp in Brazil. It is the lower power version of the 20A NBR14136 Connector type.
Mates with NBR14136 3p 10A Inlet/Plug
Plug · International
Brazil NBR14136 20A 250V (3 Prong 4.5mm Pin Grounded)
- 20 Amps
- 250 volts
On 5 of the cords here (29%)
Mates with NBR14136 3P 20A Outlet
You are on the Brazil NBR14136 20A 250V (3 Prong 4.5mm Pin Grounded) family page.
Connector · IEC 60320

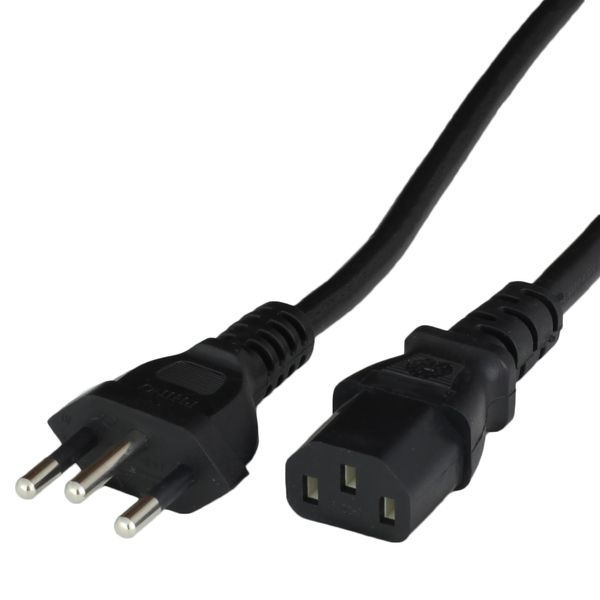

IEC 60320 C13
- 15 Amps
- 125/250V
On 3 of the cords here (18%)
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.
Mates with IEC 60320 C14 Inlet
Connector · IEC 60320

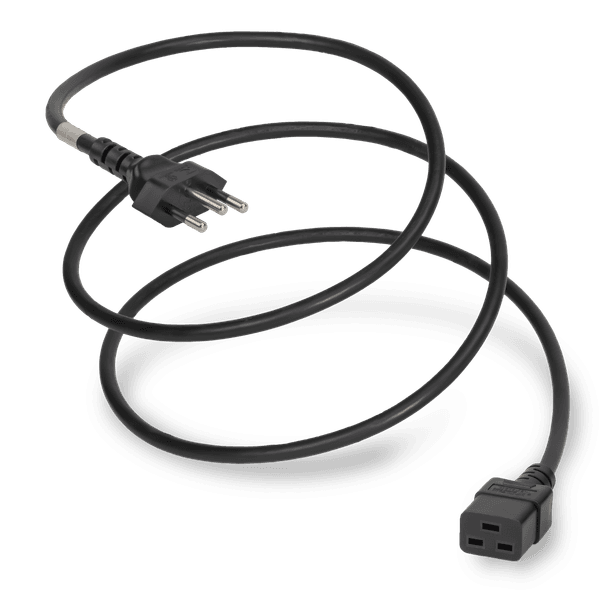

IEC 60320 C19
- 20 Amps
- 125/250V
On 3 of the cords here (18%)
The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
Mates with IEC 60320 C20 Inlet
Connector
Brazil NBR14136 3PIN 20A 250V
- 20 Amps
- 250 volts
On 3 of the cords here (18%)
The NBR14136 3 Pin 20A Connector (Female) type is rated for 250VAC and 20 Amps in Brazil. It is the standard connector type for larger appliances.
Mates with NBR14136 3p 20A Inlet
You are on the Brazil NBR14136 3PIN 20A 250V family page.
About International IEC Plug Type N Power Cables | NBR14136 Brazil Power
The Type N Brazil plug type comes in 2 variations rated for 10 Amps and 20 Amps each respectively. They each have slightly different sized pins that will prevent the 20 Amp plug from being plugged into a 10 Amp outlet, creating a fire hazard. These plugs are rated for 250VAC and come in a straight cord grip, or a down angled cord grip for installations in tight locations like behind couches or furniture.
Buying Brazil NBR14136 Type N Power Cords: What to Know
Two plug sizes, one standard
Brazil's NBR14136 standard defines two grounded Type N plug variants. The 10A plug uses 3.7 mm diameter pins and fits any Type N outlet. The 20A plug uses larger 4.5 mm pins and mates only with a 20A Type N outlet — the size difference is a deliberate safety interlock. Verify your wall outlet rating before ordering.
INMETRO approval and Brazilian compliance
Power cords used in Brazil must carry INMETRO certification, Brazil's mandatory mark for electrical safety. Cords in this collection that carry INMETRO approval are labeled on each product page. For equipment imported into Brazil or deployed in Brazilian facilities, specifying INMETRO-marked cords is required for regulatory compliance.
Connector options for IT and data-center equipment
This collection covers the most common Brazil-to-equipment configurations:
- NBR14136 → IEC 60320 C13 — standard server and networking equipment
- NBR14136 → IEC 60320 C19 — high-power blade servers and PDUs
- NBR14136 → NBR14136 — extension cables for Brazilian outlets
Custom lengths and bulk orders
Standard lengths range from 1.0 m to 100 ft. Custom lengths are available from our Connecticut facility. Volume pricing tiers apply automatically; blanket orders and drop-ship programs are available for OEMs and resellers.
Related
Current rating
2.5–16 Amps
Voltage rating
250 volts
Certifications & compliance
- INMETRO
- RoHS
- TAA Compliant
- Component Approvals
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What is the difference between the 10A and 20A NBR14136 Type N plug?
- The two NBR14136 Type N plug variants differ in pin diameter:10A (3.7 mm pins): fits both 10A and 20A Type N outlets.20A (4.5 mm pins): fits only the matching 20A Type N outlet — the larger pins physically prevent insertion into a 10A socket, which prevents overloading.Choose the 10A plug for standard Brazilian wall outlets and the 20A plug for higher-draw equipment connected to a dedicated 20A circuit.
- Is INMETRO certification required for power cords sold or used in Brazil?
- Yes. INMETRO (Instituto Nacional de Metrologia, Qualidade e Tecnologia) is Brazil's mandatory product certification body. Power cords and plugs sold or imported into Brazil must carry INMETRO approval to demonstrate conformance with NBR14136 and related Brazilian standards. The INMETRO mark on each cord confirms it has been tested for safety and materials compliance under Brazilian jurisdiction. Individual product pages on this site indicate which SKUs carry INMETRO approval.
- Can I use a Brazil NBR14136 Type N cord to power IEC 60320 equipment such as servers or PDUs?
- Yes. Several cords in this collection combine a Brazil NBR14136 plug (wall end) with an IEC 60320 connector (equipment end):NBR14136 → C13: powers most servers, switches, and desktop equipment with a C14 inlet.NBR14136 → C19: powers high-draw blade servers and PDUs with a C20 inlet.Match the amperage rating of the plug to your circuit — use the 10A plug on 10A circuits and the 20A plug on 20A circuits.
- What cordage standards are used in these Brazil power cords?
- Cords in this collection use European harmonized cordage rated for 250V:H03VV-F 0.75 mm²: light-duty, 2.5A applications.H05VV-F 1.0 mm²: standard duty, up to 10A.H05VV-F 1.5 mm²: heavier duty, up to 16A.The specific cordage for each SKU is listed on its product detail page. All cords are hi-pot tested before shipment.
