Europe Schuko CEE7/7 to IEC 60320 C13 Power Cords
Reference guide:IEC 60320 connector guide →
19
configurations
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
Made to orderColor — Black
Length — 1 Foot
In stock (4)Color — Black
Length — 6 Feet
Made to orderColor — Black
Length — 2.0 meters
Made to orderColor — Black
Length — 1.0 meter
Made to orderColor — Black
Length — 2.5 meters

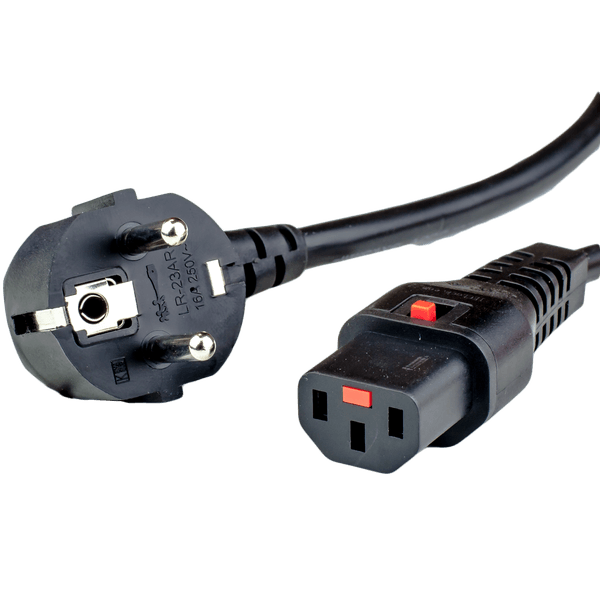

Made to order250 voltsVDEKEMARoHSColor — Black
Length — 2.5 meters
About Europe Schuko CEE7/7 to IEC 60320 C13 Power Cords
Europe Schuko CEE7/7 to IEC 60320 C13 Power Cords are designed to connect a standard European Schuko Wall outlet to a variety of IT Equipment that has a C14 Inlet for a power connection. The different versions we offer are designed to provide options for every situation.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Plug · International
European Schuko CEE7/7 - Straight
- 16 Amps
- 250 volts
On 17 of the cords here (89%)
The plug (MALE) is a Type F Schuko CEE7/7. It fits both E (France) and F (European / Germany) type outlets (sockets). Available in straight or down/up angle orientation. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground.
Mates with Schuko CEE7/7 Outlet
Connector · IEC 60320
IEC 60320 C13
- 15 Amps
- 125/250V
On 13 of the cords here (68%)
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.
Mates with IEC 60320 C14 Inlet
Connector · IEC 60320
IEC 60320 C13 Left Angle
- 15 Amps
- 125/250V
On 2 of the cords here (11%)
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. With the ground at 12:00 and looking at the back of the C13 (when plugged in), the cord exits at 9:00 (to the left).
Mates with IEC 60320 C14 Inlet
Connector

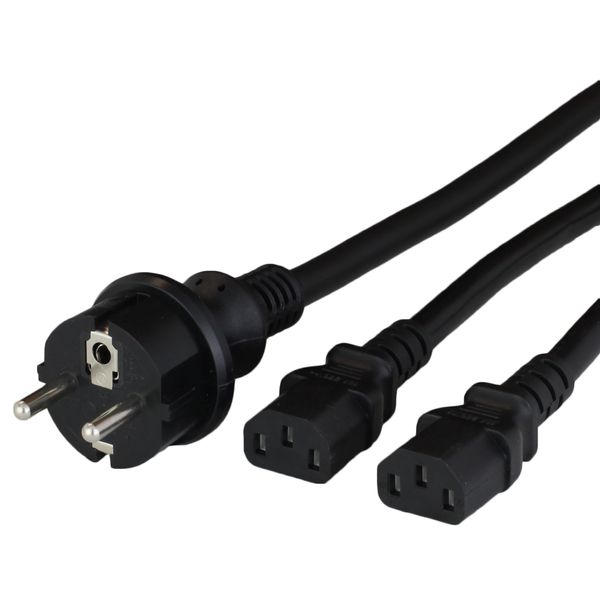

2X IEC 60320 C13
- 15 Amps
- 125/250V
On 2 of the cords here (11%)
The IEC 60320 C13 2x Splitter is a 1 to 2 power tap that allows you to plug in 2 devices into 1 power source. They are rated for 250VAC and 15Amps collectively and convert 1 power source into 2 IEC 60320 C13 Connectors.
Mates with IEC 60320 C14 Inlet
Plug · International
European Schuko CEE7/7 - Down Angle
- 16 Amps
- 250 volts
On 2 of the cords here (11%)
The plug (MALE) is a Type F Schuko CEE7/7. It fits both E (France) and F (European / Germany) type outlets (sockets). Available in straight or down/up angle orientation. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground.
Mates with Schuko CEE7/7 Outlet
You are on the European Schuko CEE7/7 - Down Angle family page.
Connector · IEC 60320
IEC 60320 C13 Right Angle
- 15 Amps
- 125/250V
On 1 of the cords here (5%)
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. With the ground at 12:00 and looking at the back of the C13 (when plugged in), the cord exits at 3:00 (to the right).
Mates with IEC 60320 C14 Inlet
About Europe Schuko CEE7/7 to IEC 60320 C13 Power Cords
World Cord Sets supplies europe schuko cee7/7 to iec 60320 c13 power cords from our East Windsor, Connecticut headquarters, with manufacturing across US and overseas facilities. Cords are tested and certified to spec before shipment. We stock 19+ configurations and build custom cords to order — hand-terminated builds from in-stock components typically ship in 3–4 business days. In-stock orders placed by 2:30 PM ET ship the same day from our Connecticut warehouse.
Current rating
10 Amps
Voltage rating
250 volts
Certifications & compliance
- VDE
- RoHS
- KEMA
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What certifications do these power cords carry?
- UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
- Do you require a minimum order quantity?
- No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
- Can I get a custom length or color?
- Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
- How fast does this ship?
- In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
