European Schuko CEE7/7 to IEC 60320 C19 Power Cords
Reference guide:IEC 60320 connector guide →
12
configurations
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
In stock (197)Color — Black
Length — 10 Feet
In stock (1)250 voltsVDERoHSColor — Black
Length — 2.0 meters
In stock (1)Color — Black
Length — 2.5 meters
- Made to order
Color — Black
Length — 2.0 meters
Made to orderColor — Black
Length — 2.5 meters
- Made to order
Color — Black
Length — 12 Feet
- Made to order250 voltsVDERoHSTAA Compliant
Color — Black
Length — 2.5 meters
Made to orderColor — Black
Length — 3.0 meters
About European Schuko CEE7/7 to IEC 60320 C19 Power Cords
European Schuko CEE7/7 to IEC 60320 C19 Power Cords are designed to provide power to a larger IT device/equipment from a standard European Schuko wall outlet. The various angled and locking options we offer, are solutions designed to improve installation and solve common day to day problems with connection.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Connector · IEC 60320
IEC 60320 C19
- 20 Amps
- 125/250V
On 7 of the cords here (58%)
The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
Mates with IEC 60320 C20 Inlet
Plug · International
European Schuko CEE7/7 - Straight
- 16 Amps
- 250 volts
On 7 of the cords here (58%)
The plug (MALE) is a Type F Schuko CEE7/7. It fits both E (France) and F (European / Germany) type outlets (sockets). Available in straight or down/up angle orientation. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground.
Mates with Schuko CEE7/7 Outlet
Plug · International
European Schuko CEE7/7 - Down Angle
- 16 Amps
- 250 volts
On 5 of the cords here (42%)
The plug (MALE) is a Type F Schuko CEE7/7. It fits both E (France) and F (European / Germany) type outlets (sockets). Available in straight or down/up angle orientation. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground.
Mates with Schuko CEE7/7 Outlet
You are on the European Schuko CEE7/7 - Down Angle family page.
Connector
IEC 60320 C19 Locking (A-Lock)
- 20 Amps
- 125/250V
On 4 of the cords here (33%)
The IEC 60320 C19 Locking Connector is rated for 20 Amps and 250VAC. It is a grounded connector type, with the A-Lock feature for latching the connector in place once it is mated. The A-Lock is a universal locking mechanism that internally pinches the pins of the male/inlet that it connects with. This effectively holds the connector in place until the user pinches and pulls back the two red tabs located on either side of the connector body.
Mates with IEC 60320 C20 Inlet
Connector · IEC 60320

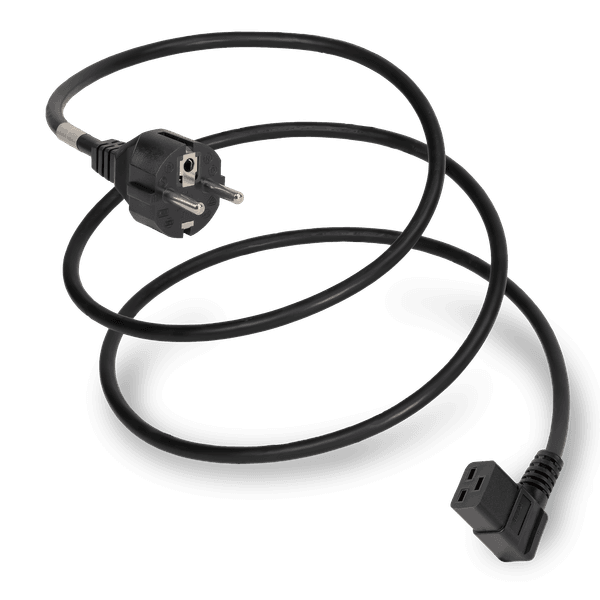

IEC 60320 C19 Right Angle
- 20 Amps
- 125/250V
On 1 of the cords here (8%)
The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate. With the ground at 12:00 and looking at the back of the C19 (when plugged in), the cord exits at 3:00 (to the right)
Mates with IEC 60320 C20 Inlet
You are on the C19 Right Angle family page.
About European Schuko CEE7/7 to IEC 60320 C19 Power Cords
World Cord Sets supplies european schuko cee7/7 to iec 60320 c19 power cords from our East Windsor, Connecticut headquarters, with manufacturing across US and overseas facilities. Cords are tested and certified to spec before shipment. We stock 12+ configurations and build custom cords to order — hand-terminated builds from in-stock components typically ship in 3–4 business days. In-stock orders placed by 2:30 PM ET ship the same day from our Connecticut warehouse.
Current rating
16 Amps
Voltage rating
250 volts
Certifications & compliance
- VDE
- RoHS
- TAA Compliant
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What certifications do these power cords carry?
- UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
- Do you require a minimum order quantity?
- No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
- Can I get a custom length or color?
- Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
- How fast does this ship?
- In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
