SKU: R515515-H-006-GRY
1FT ROT 5-15P RIGHT ANGLE TO 5-15R 15A 125V GRAY
SWIVEL 5-15P to 5-15R Extension Cord
R515515-H-006-GRY
Per unit · USD
Volume pricing
| Quantity | Unit price | Savings |
|---|---|---|
| 1–99 | $10.77 | List price |
| 100–249 | $9.15 | Save 15% |
| 250–499 | $8.62 | Save 20% |
| 500+ | $7.54 | Save 30% |
Need a different length, gauge, or connector?Build a custom cord →
B2B & OEM services
✓Volume pricing & NET terms — breaks start at 10 units
✓BOM partner for OEMs — we work from your spec sheet
✓Approvals expert — UL, CSA, CE, RoHS support available
Hi-pot tested
Every cord we build is hi-pot and continuity tested.
Engineering-led
In-house engineering and compliance set the procedures.
Ships same day
In-stock orders out of East Windsor, CT before 3pm ET.
30-day returns
Plus lifetime workmanship warranty.
| Current (Amps) | 15 Amps |
| Voltage (Volts) | 125 volts |
| Cordage | 14awg-3c SJT |
| Certifications | RoHS |
| Certifications | REACH |
| Approvals | UL |
| Plug (Male) | NEMA 5-15P |
| Connector (Female) | NEMA 5-15R |
| Length | 1 Foot |
| Color | Gray |
Certifications & Compliance
About this product

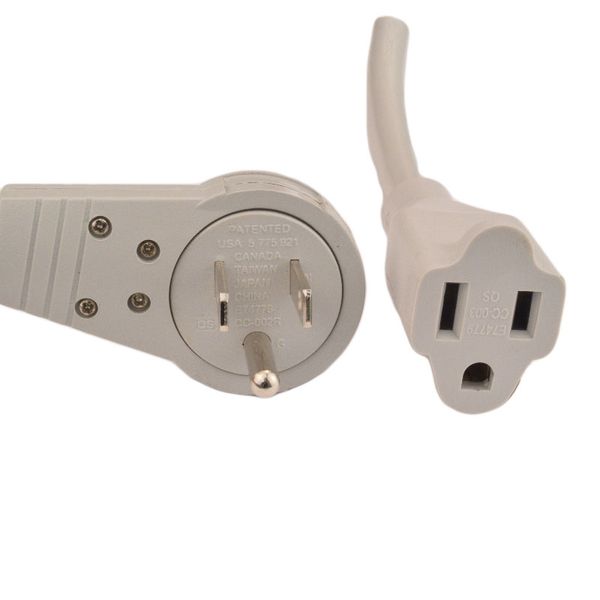

1FT SWIVEL (Rotatable) RIGHT ANGLE NEMA 5-15P to 5-15R 15A 125 Extension Cord. The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations. The NEMA 5-15R is your standard household receptacle without the 5-20R T-SLOT.
Current (Amps)
| 15 Amps | 15 Amps |
Voltage (Volts)
| 125 volts | 125 volts |
Connector (Female)
| NEMA 5-15R | NEMA 5-15R |
Plug (Male)
| NEMA 5-15P | NEMA 5-15P |
Cordage
| 14awg-3c SJT | 14awg-3c SJT |
Approvals
| UL | UL |
Color
| Gray | Gray |
Length
| 1 Foot | 1 Foot |
Certifications
| RoHS | RoHS |
| REACH | REACH |
Physical
| weight lbs | 0.2 |
- Download PDF
Spec sheet (PDF)
Generated specification sheet for this part number
No alternate configurations available.
Typical Application
Power source
NEMA 5-15P plug
1 Foot Gray
Powered equipment
NEMA 5-15R connector
Connects a NEMA 5-15P source to a NEMA 5-15R device inlet. Rated 15 Amps at 125 volts.
Countries of Application
| Country | Approval |
|---|---|
| United States | US |
| Mexico | MX |
Our commitment: In-stock cords ship the same day when ordered by 2:30 PM ET. If it doesn't meet spec, we replace it and pay return shipping. Questions during installation? Same number as sales — a real engineer picks up.
