Plug Adapters for Data Center PDU Convenience

It can be challenging to spec in identical plug types for all of your equipment in a Data Cabinet. Since each equipment will have unique power requirements, they are not built identical. If your rackmount PDU does not have a unique plug type, you can easily adapt one of the outlets to a specific outlet type with plug adapters. They are a low cost solution to get your cabinet up and running.

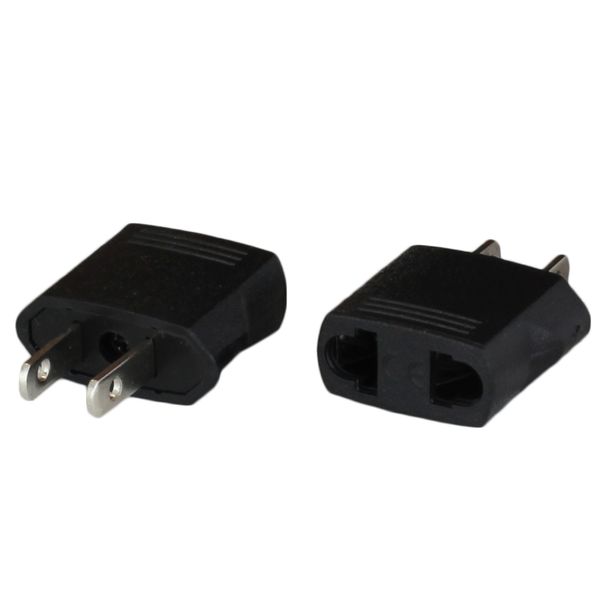

Plug Adapters for Traveling

When traveling, it can seem overwhelming and confusing to figure out the exact power source you will need to connect to charge your devices. Luckily, we stock a variety of international plug type adapters to help send you on your next voyage. If you are still not confident in the plug type you will need, refer to our Resource tab and review our international power guide.

Universal Adapter Block

We stock a variety of power adapters that utilize the Universal Connector type. This odd-looking configuration can accept many different plug connections and safely deliver power to your equipment. This configuration accepts NEMA 1-15P, 5-15P, 5-20P, 6-15P, 6-20P, IRAM2073, AS3112 10/15 Amp and many others. To learn more about this universal connector, refer to our Components tab.

Not sure which cord you need?

Answer a few quick questions and we’ll narrow it down for you.

Match by picture

The plugs and connectors in this collection

What each end is, what it mates with, and where to find every cord built on it.

  • IEC 60320 C14 plug

    Plug · IEC 60320

    IEC 60320 C14

    • 15 Amps
    • 250 volts

    On 13 of the cords here (30%)

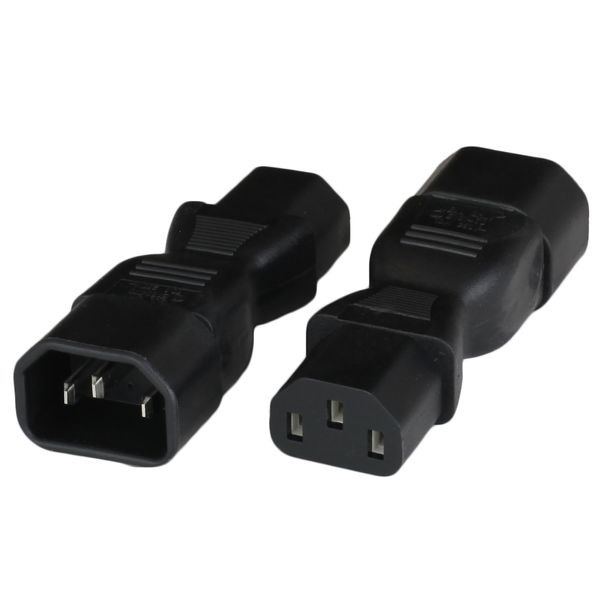

    The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 mates with a C13 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C14 is in a jumper cable scenario, providing power from a PDU to IT Equipment.

    Mates with IEC 60320 C13 Outlet

    Shop all IEC 60320 C14 C13 Power Cords →
  • IEC 60320 C20 plug

    Plug · IEC 60320

    IEC 60320 C20

    • 20 Amps
    • 250 volts

    On 9 of the cords here (20%)

    The IEC 60320 C20 is a grounded 3 Wire Plug rated up to 250V and 20 Amps. The C20 mates with a C19 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C20 is in a jumper cable scenario, providing power from a PDU to a blade server chassis, high powered server, large network router, or similar device.

    Mates with IEC 60320 C19 Outlet

    Shop all IEC 60320 C20 C19 Power Cords →
  • NEMA 5-15P plug

    Plug · NEMA

    NEMA 5-15P

    • 15 Amps
    • 125 volts

    On 9 of the cords here (20%)

    The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations.

    Mates with NEMA 5-15R Outlet

    Shop all 15A 125V NEMA 5-15P Power Cords →
  • IEC 60320 C13 connector

    Connector · IEC 60320

    IEC 60320 C13

    • 15 Amps
    • 125/250V

    On 6 of the cords here (14%)

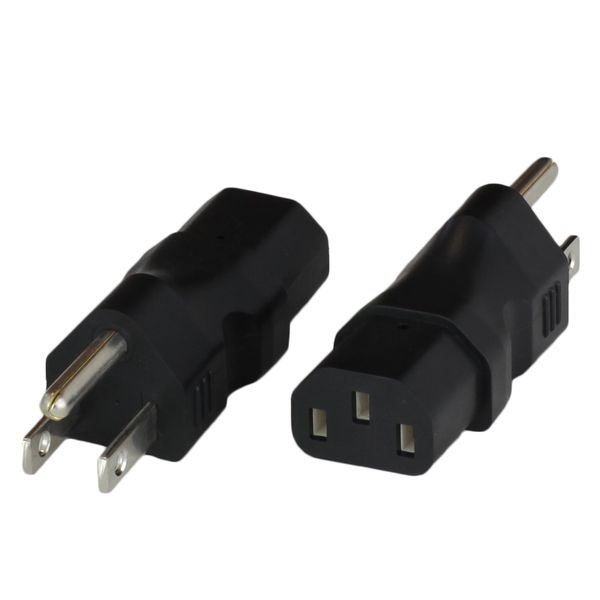

    The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.

    Mates with IEC 60320 C14 Inlet

    Shop all IEC 60320 C14 C13 Power Cords →

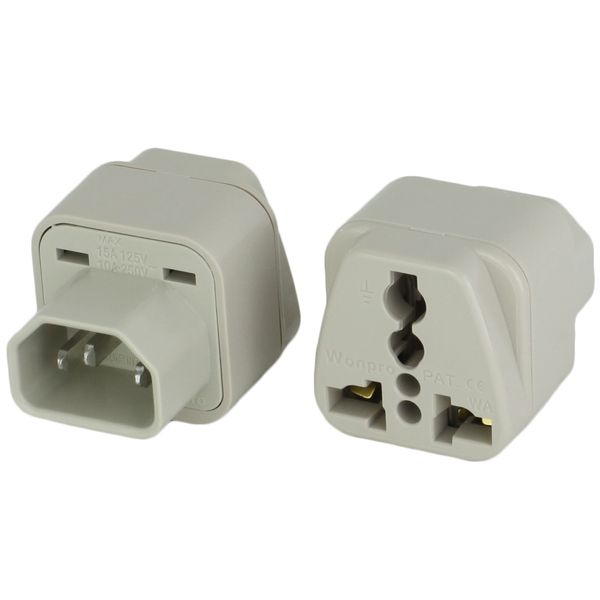

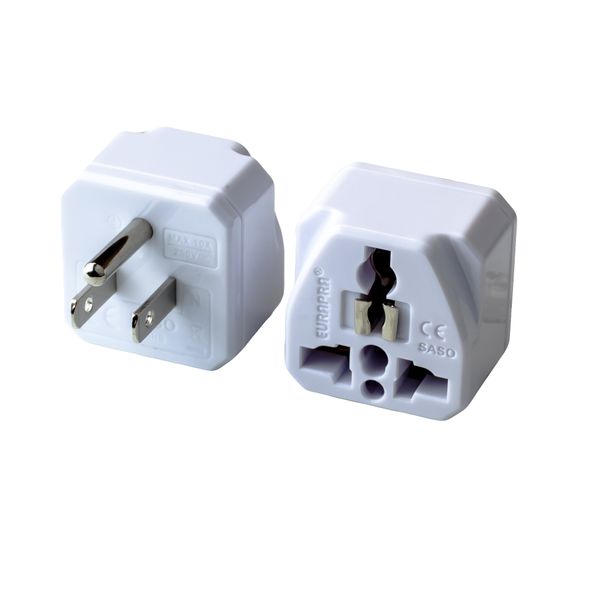

  • Universal connector

    Connector

    Universal

    On 5 of the cords here (11%)

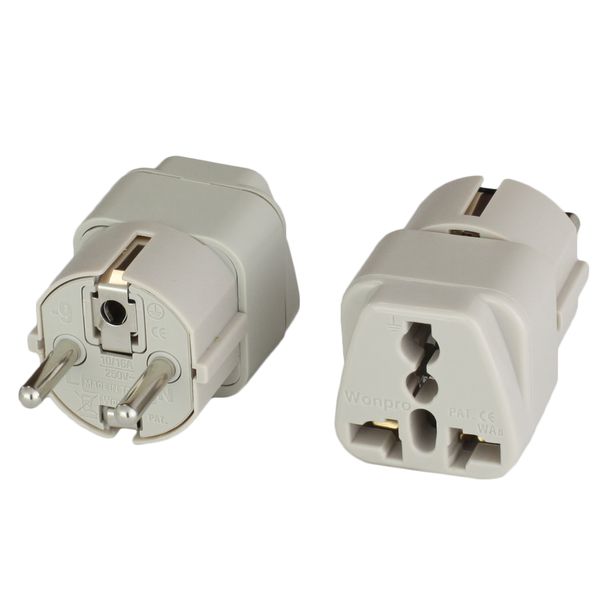

    Universal socket: Accepts
    USA NEMA 1-15P, USA NEMA 5-15P, USA NEMA 5-20P, USA NEMA 6-15P, USA NEMA 6-20P, Argentina IRAM2073, Australia AS3112 10 and 15 Amp Versions, China GB2099 10 Amp (not 16amp version), Denmark AFSNIT, Europlug CEE7/16, France CEE7/4 (Ground is dropped), Germany CEE7/7 (Ground is dropped), Israel SI32, Italy CEI 23-50 10 Amp (not 16amp version), Japan JIS8303, Korea KSC8305 (Ground is dropped), Russia GOST7396 (Ground is dropped), South Africa SABS 164-1 6 Amp (not 16amp version), Switzerland SEV 1011 10 Amp (not 16amp version), Taiwan CNS6797, United Kingdom BS1363, Male IEC320 C14.
    Note: Power Plug Adapters do not convert voltage, they just change the plug type. Use a proper voltage converter along with a power plug adapter if your device is incompatible with the country's voltage.

    You are on the Universal family page.

  • NEMA 5-20R connector

    Connector

    NEMA 5-20R

    • 20 Amps
    • 125 volts

    On 5 of the cords here (11%)

    The NEMA 5-20R connector is used to mate

    Mates with NEMA 5-20P Inlet

    Shop all OPEN to NEMA 5-20R (Female) Power Cords →

About Plug Adapters

World Cord Sets supplies plug adapters from our East Windsor, Connecticut headquarters, with manufacturing across US and overseas facilities. Cords are tested and certified to spec before shipment. We stock 40+ configurations and build custom cords to order — hand-terminated builds from in-stock components typically ship in 3–4 business days. In-stock orders placed by 2:30 PM ET ship the same day from our Connecticut warehouse.

Current rating

2.5–20 Amps

Voltage rating

125–250 volts

Certifications & compliance

  • UL
  • cUL
  • RoHS
  • CE
  • Every cord we build is hi-pot tested
  • Same-day shipping by 2:30 PM ET
  • NET 30/60/90 for approved accounts
  • In-house engineering and compliance support

Frequently asked questions

What plug types will the universal socket accept?
Many. NEMA : 1-15p, 5-15p, 5-20p, 6-15p, 6-20p. Universal: IRAM207, AS3112 10 & 15 Amp, GB2009 10 Amp, AFSNIT, CEE7/16, CEE7/4, CEE7/7, SI32, CEI 23-50 10Amp, JIS8303, KSC8305, GOST7396, SABS164-1 6 amp, CNS6797, BS1363 and IEC320 C14.
Will a Plug adapter adapt the voltage?
No. Power Plug adapters do not convert voltage, they only change the configuration allowing you to access the power source. If your power supply is not the same voltage type as what your equipment requires you will need a voltage converter as well.
How to ensure the universal connector will work.?
Check your Voltages. Every electrical device will have a listed operating voltage and frequency. Compare these to the supply voltage of the plug type (we list these in the Components tab) and the operating frequency of the country. If you're using a plug rated for 250 Volts, and your equipment is rated for 125 Volts, you will need a voltage adapter to access the power from the electrical outlet and should not plug in the adapter to the power supply.
