2.5M Black Italy Extension Cable CEI23-16/VII to CEI23-16/VII 16A 250V
16A Italy CEI23-50 16A Power Extension Cords
LDLC-02098
Per unit · USD
Volume pricing
| Quantity | Unit price | Savings |
|---|---|---|
| 1–99 | $28.46 | List price |
| 100–249 | $25.61 | Save 10% |
| 250–499 | $22.77 | Save 20% |
| 500+ | $19.92 | Save 30% |
Need a different length, gauge, or connector?Build a custom cord →
Currently out of stock
Get notified the moment 2.5M Black Italy Extension Cable CEI23-16/VII to CEI23-16/VII 16A 250V is back.
One email when restocked. No marketing — unsubscribe link included.
B2B & OEM services
✓Volume pricing & NET terms — breaks start at 10 units
✓BOM partner for OEMs — we work from your spec sheet
✓Approvals expert — UL, CSA, CE, RoHS support available
Hi-pot tested
Every cord we build is hi-pot and continuity tested.
Engineering-led
In-house engineering and compliance set the procedures.
Ships same day
In-stock orders out of East Windsor, CT before 3pm ET.
30-day returns
Plus lifetime workmanship warranty.
| Current (Amps) | 16 Amps |
| Voltage (Volts) | 250 volts |
| Cordage | 1.5mm2 -3c H05VV-F |
| Certifications | RoHS |
| Approvals | Component Approvals |

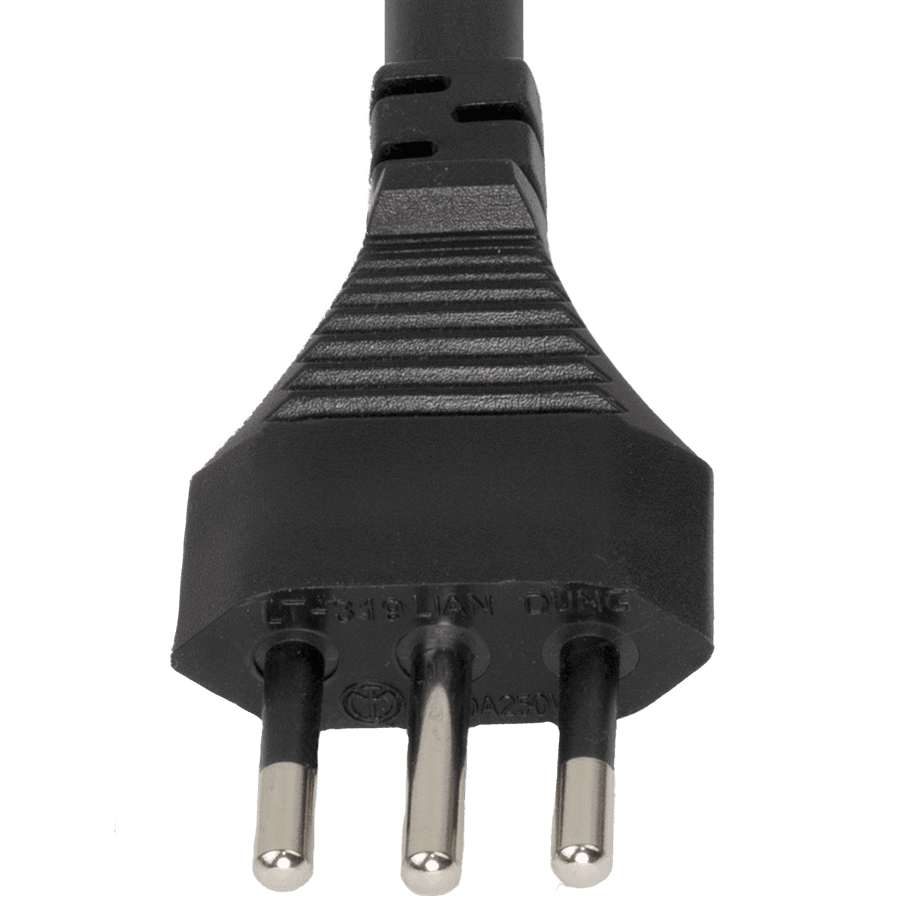

| Plug (Male) | Italy CEI 23-50 3-Pin 16A Type L |
| Connector (Female) | Italy CEI23-50 (CEI23-16) 10A(S11)/16A(S17) - Type L |
| Length | 2.5 meters |
| Color | Black |
Certifications & Compliance
About this product
Italian CEI 23-50 (CEI 23-16) AC Power Cord,Plug,Flexible Cable Socket
Grounded plugs and sockets for Italy are defined by the standard CEI 23-50 which superseded CEI 23-16. This includes two models rated at 10A and 16A that differ in contact diameter and spacing. Both are symmetrical, allowing the line and neutral contacts to be inserted in either direction. This plug is also commonly used in Chile and Uruguay.
10A Plug
The 10 A plug has pins which are 4 mm in diameter, the centers spaced 19 mm apart. The 10A socket can accept Europlugs.
16A Plug
The 16A plug has pins which are 5 mm in diameter, the centers spaced 26 mm apart.
Power Cord
Italy Power Cord products with IMQ certification are manufactured to CEI 23-16 and IEC standards designed for Italian power cord applications,We are producing Italy AC power cords in standard configurations and can make any custom version as well. 100% of our Italy power supply cords are fully molded high quality cords and RoHS and REACH compliant and we are China leading Italy power cord manufacturer and supplier providing cheapest prices of Italy IMQ approved AC power cable products with IEC 60320 C7,C5,C13,C14,C15 and IEC 320 C19 power cord sets.
The Italian earthed plug standard, CEI 23-16/VII, includes two models rated at 10 A and 16 A that differ in contact diameter and spacing.
Length
| 2.5 meters | 2.5 meters |
Current (Amps)
| 16 Amps | 16 Amps |
Voltage (Volts)
| 250 volts | 250 volts |
Connector (Female)
| Italy CEI23-50 (CEI23-16) 10A(S11)/16A(S17) - Type L | Italy CEI23-50 (CEI23-16) 10A(S11)/16A(S17) - Type L |
Plug (Male)
| Italy CEI 23-50 3-Pin 16A Type L | Italy CEI 23-50 3-Pin 16A Type L |
Cordage
| 1.5mm2 -3c H05VV-F | 1.5mm2 -3c H05VV-F |
Approvals
| Component Approvals | Component Approvals |
Certifications
| RoHS | RoHS |
Color
| Black | Black |
Physical
| weight lbs | 0.95 |
- Download PDF
Spec sheet (PDF)
Generated specification sheet for this part number
No alternate configurations available.
Typical Application
Power source
Italy CEI 23-50 3-Pin 16A Type L plug
2.5 meters Black
Powered equipment
Italy CEI23-50 (CEI23-16) 10A(S11)/16A(S17) - Type L connector
Connects a Italy CEI 23-50 3-Pin 16A Type L source to a Italy CEI23-50 (CEI23-16) 10A(S11)/16A(S17) - Type L device inlet. Rated 16 Amps at 250 volts.
