SKU: IMP-STA-STA-OS2-DX-05M-P

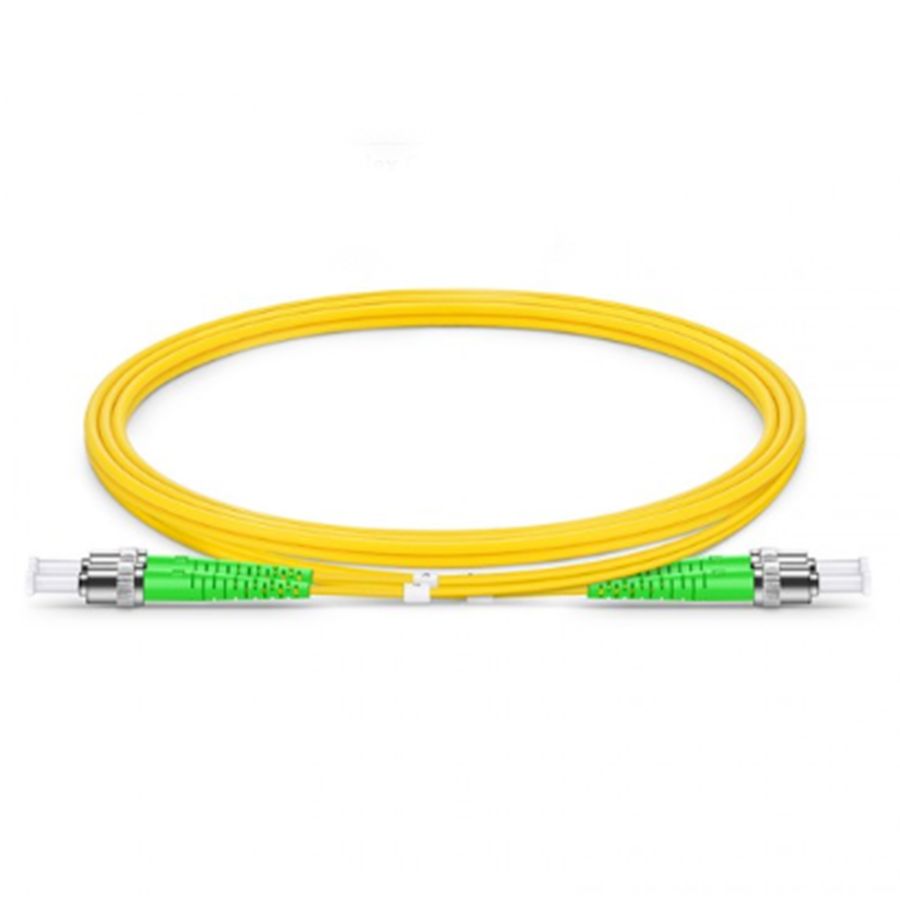

OS2 ST APC to ST APC 2.00mm Singlemode Duplex Fiber Optic Cable 5 Meter (16ft) Yellow
OS2 ST-ST APC Singlemode Fiber Optic Patch Cables - Yellow
IMP-STA-STA-OS2-DX-05M-P
Length — 16 Feet
Per unit · USD
Made to order
Need a different length, gauge, or connector?Request a custom quote →
Currently out of stock
Get notified the moment OS2 ST APC to ST APC 2.00mm Singlemode Duplex Fiber Optic Cable 5 Meter (16ft) Yellow is back.
One email when restocked. No marketing — unsubscribe link included.
Volume pricing
| Quantity | Unit price | Savings |
|---|---|---|
| 1–99 | $8.08 | List price |
| 100–249 | $7.27 | Save 10% |
| 250–499 | $6.46 | Save 20% |
| 500+ | $5.66 | Save 30% |
Buying more than 500, or need a better price? Call (860) 763-2100 or e-mail sales@worldcordsets.com — we quote volume pricing every day.
B2B & OEM services
✓Volume pricing & NET terms — breaks start at 10 units
✓BOM partner for OEMs — we work from your spec sheet
✓Approvals expert — UL, CSA, CE, RoHS support available
Hi-pot tested
Every cord we build is hi-pot and continuity tested.
Engineering-led
In-house engineering and compliance set the procedures.
Ships same day
In-stock orders out of East Windsor, CT before 2:30 PM ET.
30-day returns
Plus lifetime workmanship warranty.
Specifications
| Length | 16 Feet |
| Color | Yellow |
| Attenuation at 1310 nm | 0.36 dB/dm |
| Attenuation at 1550 nm | 0.222 dB/dm |
| Cable End 1 | ST APC Fiber Optic Male |
| Cable End 2 | ST APC Fiber Optic Male |
| Fiber Count | Duplex |
| Fiber Type | Bend Insensitive Single Mode |
| Insertion Loss | ≤0.3dB |
| Jacket Color | Yellow |
| Jacket Material | PVC |
| Jacket Outer Diameter | 2.0mm |
| Minimum Bend Radius | 30mm |
| Polarity | A(Tx) to B(Rx) |
| Polish | APC to APC |
| Return Loss | ≥50dB |
Physical
| weight lbs | 0.14 |
- Download PDF
Spec sheet (PDF)
Specification sheet for this part number — opens the PDF, or lets you request a drawing from engineering when one is not on file yet
1 alternate configuration available in this product line:
Our commitment: In-stock cords ship the same day when ordered by 2:30 PM ET. If it doesn't meet spec, we replace it and pay return shipping. Questions during installation? Same number as sales — a real engineer picks up.
