SKU: BD19-37120

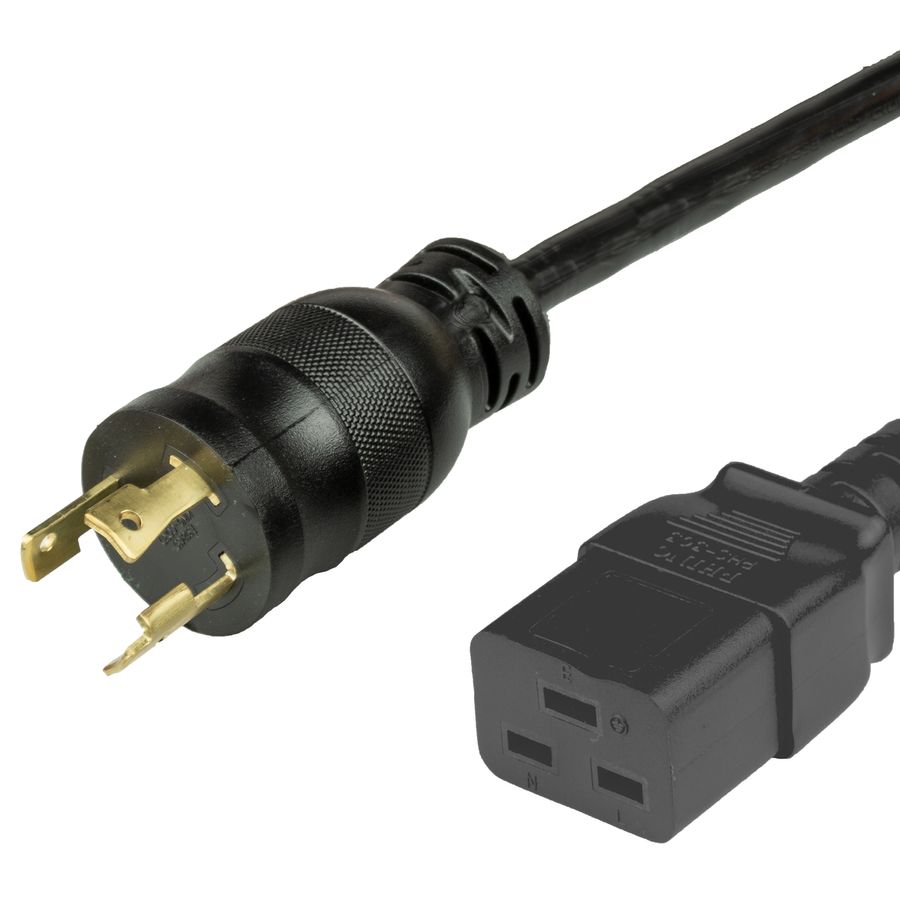

10FT Black Twist Lock L5-30P Japanese Power JIS8303 to IEC320 C19 20A 125V
Japan 125V 30A JIS8303 (L5-30P) to C19 Power Cords
BD19-37120
Per unit · USD
Volume pricing
| Quantity | Unit price | Savings |
|---|---|---|
| 1–99 | $50.08 | List price |
| 100–249 | $45.07 | Save 10% |
| 250–499 | $40.06 | Save 20% |
| 500+ | $35.06 | Save 30% |
Need a different length, gauge, or connector?Build a custom cord →
Currently out of stock
Get notified the moment 10FT Black Twist Lock L5-30P Japanese Power JIS8303 to IEC320 C19 20A 125V is back.
One email when restocked. No marketing — unsubscribe link included.
B2B & OEM services
✓Volume pricing & NET terms — breaks start at 10 units
✓BOM partner for OEMs — we work from your spec sheet
✓Approvals expert — UL, CSA, CE, RoHS support available
Hi-pot tested
Every cord we build is hi-pot and continuity tested.
Engineering-led
In-house engineering and compliance set the procedures.
Ships same day
In-stock orders out of East Windsor, CT before 3pm ET.
30-day returns
Plus lifetime workmanship warranty.
| Current (Amps) | 20 Amps |
| Voltage (Volts) | 125 volts |
| Cordage | 3.5mm2 -3c VCTF |
| Certifications | RoHS |
| Approvals | PSE |
| Plug (Male) | Japan JIS8303 Twist-Lock L5-30P (male) IEC Type B |
| Connector (Female) | IEC 60320 C19 |
| Length | 10 Feet |
| Color | Black |
Certifications & Compliance
About this product
Japan JIS C 8303 (L5-30P) Twist-Lock Power Cords, Class I standard, 3-blade grounded, Type B. Rated 125VAC. The plug looks the same as the North America L5-30P. The dimensional tolerances are more strict for the Japan plug. A North American plug may not fit into an outlet for Japan because of the tolerance differences. Manufactured with PSE approvals. Typical cordage uses VCTF jacket material. VCTF has a round shape and is rated to 60C. Available with IEC60320 C19 and open-ended variations.
Length
| 10 Feet | 10 Feet |
Current (Amps)
| 20 Amps | 20 Amps |
Voltage (Volts)
| 125 volts | 125 volts |
Connector (Female)
| IEC 60320 C19 | IEC 60320 C19 |
Plug (Male)
| Japan JIS8303 Twist-Lock L5-30P (male) IEC Type B | Japan JIS8303 Twist-Lock L5-30P (male) IEC Type B |
Cordage
| 3.5mm2 -3c VCTF | 3.5mm2 -3c VCTF |
Approvals
| PSE | PSE |
Certifications
| RoHS | RoHS |
Color
| Black | Black |
Physical
| weight lbs | 1.7 |
- Download PDF
Spec sheet (PDF)
Generated specification sheet for this part number
No alternate configurations available.
Typical Application
Power source
Japan JIS8303 Twist-Lock L5-30P (male) IEC Type B plug
10 Feet Black
Powered equipment
C19 connector
Connects a Japan JIS8303 Twist-Lock L5-30P (male) IEC Type B source to a C19 device inlet. Rated 20 Amps at 125 volts.
Countries of Application
| Country | Approval |
|---|---|
| Japan | JP |
Our commitment: In-stock cords ship the same day when ordered by 2:30 PM ET. If it doesn't meet spec, we replace it and pay return shipping. Questions during installation? Same number as sales — a real engineer picks up.
