SKU: LA00-01098

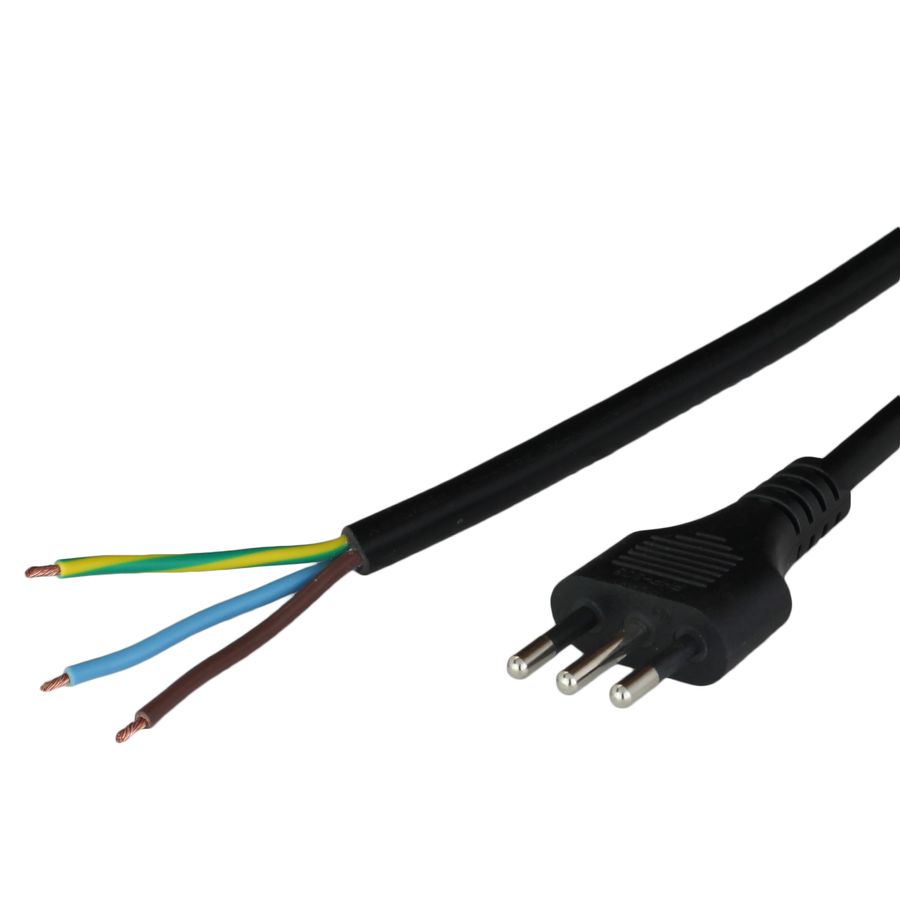

2.5m Italy Plug CEI23-50 CEI23-16/VII to OPEN 10A 250V H05VV-F1.0 Power Cord - BLACK
10A Italy CEI23-50 CEI23-16/VII to Open Ended Power Cords
LA00-01098
Per unit · USD
Volume pricing
| Quantity | Unit price | Savings |
|---|---|---|
| 1–9 | $11.18 | List price |
| 10–49 | $10.59 | Save 5% |
| 50–99 | $10.59 | Save 5% |
| 100–249 | $10.59 | Save 5% |
| 250–499 | $10.00 | Save 11% |
| 500+ | $7.27 | Save 35% |
Need a different length, gauge, or connector?Request a custom quote →
Currently out of stock
Get notified the moment 2.5m Italy Plug CEI23-50 CEI23-16/VII to OPEN 10A 250V H05VV-F1.0 Power Cord - BLACK is back.
One email when restocked. No marketing — unsubscribe link included.
B2B & OEM services
✓Volume pricing & NET terms — breaks start at 10 units
✓BOM partner for OEMs — we work from your spec sheet
✓Approvals expert — UL, CSA, CE, RoHS support available
Hi-pot tested
Every cord we build is hi-pot and continuity tested.
Engineering-led
In-house engineering and compliance set the procedures.
Ships same day
In-stock orders out of East Windsor, CT before 2:30 PM ET.
30-day returns
Plus lifetime workmanship warranty.
| Current (Amps) | 10 Amps |
| Voltage (Volts) | 250 volts |
| Cordage | 1.0mm2 -3c H05VV-F |
| Certifications | RoHS |
| Approvals | IMQ |
| Plug (Male) | Italy CEI 23-50 3-Pin 10A |
| Length | 2.5 meters |
| Color | Black |
Certifications & Compliance
About this product
Italian CEI 23-50 (CEI 23-16) AC Power Cord,Plug,Flexible Cable Socket
Grounded plugs and sockets for Italy are defined by the standard CEI 23-50 which superseded CEI 23-16. This includes two models rated at 10A and 16A that differ in contact diameter and spacing. Both are symmetrical, allowing the line and neutral contacts to be inserted in either direction. This plug is also commonly used in Chile and Uruguay.
10A Plug
The 10 A plug has pins which are 4 mm in diameter, the centers spaced 19 mm apart. The 10A socket can accept Europlugs.
16A Plug
The 16A plug has pins which are 5 mm in diameter, the centers spaced 26 mm apart.
Power Cord
Italy Power Cord products with IMQ certification are manufactured to CEI 23-16 and IEC standards designed for Italian power cord applications,We are producing Italy AC power cords in standard configurations and can make any custom version as well. 100% of our Italy power supply cords are fully molded high quality cords and RoHS and REACH compliant and we are China leading Italy power cord manufacturer and supplier providing cheapest prices of Italy IMQ approved AC power cable products with IEC 60320 C7,C5,C13,C14,C15 and IEC 320 C19 power cord sets.
The Italian earthed plug standard, CEI 23-16/VII, includes two models rated at 10 A and 16 A that differ in contact diameter and spacing.
Length
| 2.5 meters | 2.5 meters |
Current (Amps)
| 10 Amps | 10 Amps |
Voltage (Volts)
| 250 volts | 250 volts |
Plug (Male)
| Italy CEI 23-50 3-Pin 10A | Italy CEI 23-50 3-Pin 10A |
Cordage
| 1.0mm2 -3c H05VV-F | 1.0mm2 -3c H05VV-F |
Approvals
| IMQ | IMQ |
Certifications
| RoHS | RoHS |
Color
| Black | Black |
Open End
| 2" ROJ 1/4" Strip NACC (Standard) | 2" ROJ 1/4" Strip NACC (Standard) |
Conductor Color Coding
| International Color Code (ICC) | International Color Code (ICC) |
Physical
| weight lbs | 0.61 |
- Download PDF
Spec sheet (PDF)
Generated specification sheet for this part number
No alternate configurations available.
Our commitment: In-stock cords ship the same day when ordered by 2:30 PM ET. If it doesn't meet spec, we replace it and pay return shipping. Questions during installation? Same number as sales — a real engineer picks up.
