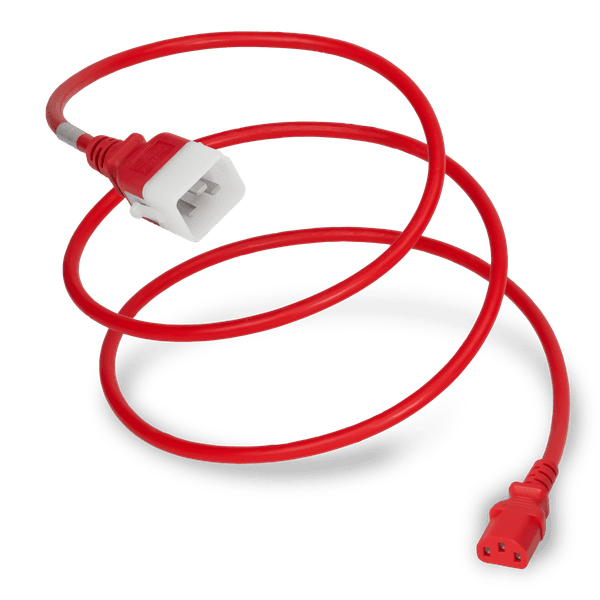

Red Secure-Lock/P-Lock IEC320 C20 Locking to IEC320 C13 15A 250V
8
configurations
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
In stock (240)Color — Red
Length — 3 Feet
About Red Secure-Lock/P-Lock IEC320 C20 Locking to IEC320 C13 15A 250V
Details about IEC 60320 (IEC 320) P-Lock (ServerTech) Power Cables
The 15A C20 to C13 P-Lock cable is available from stock in RED, BLUE, and BLACK. However, custom lengths and colors can be made. C20 C13 P-Lock cables are typically used with ServerTech PDU's, often referred to as "server tech power cords" or "server tech power cables".
The C20 Plug mates with the matching C19 outlet on the PDU.
The C13 Connector mates with the matching C14 inlet on the server, switch, device, etc
If you require a Locking Connector on this cable, please Contact Us and we provide custom solutions.

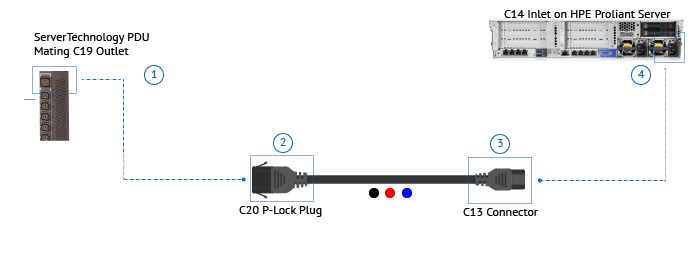

Typical Application for a C20 C13 P-Lock Power Cable
1. Server Technology PDU
PDU will typically be rack mounted, vertically, to the server rack. The C19 Outlet on the PDU shown in the photo will mate with the LOCKING P-Lock end of the cable (2)
2. P-Lock C20 Plug (Male)
The P-Lock male plug features two tabs on the outside, which allow the plug to securely lock (Secure lock) into place on the PDU.
3. C13 Connector (Female)
The IEC 60320 (IEC 320) C13 connector mates with a matching C14 inlet commonly found on servers, switches, routers, firewalls, computers, monitors, etc.
4. HPE Proliant Server
The device you are connecting this power cable to MUST have a C14 inlet in order for the C13 connector to probably mate.
Alternative to the P-Lock C20 C13
In cases where they is not sufficient stock on our C13 connector power cables, a C15 can be used in place of a C13 and will function the same as a C13. Please see our P-Lock C20 C15 power cable product line for stock and prices.
Current rating
15 Amps
Voltage rating
250 volts
Plug (male end)
IEC 60320 C20 Locking (P-Lock)
Connector (female end)
IEC 60320 C13
Certifications & compliance
- UL
- cUL
- RoHS
- REACH
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What certifications do these power cords carry?
- UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
- Do you require a minimum order quantity?
- No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
- Can I get a custom length or color?
- Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
- How fast does this ship?
- In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
