IEC320 C14 to Anderson Saf-D-Grid 400V Power Cables
Reference guide:Saf-D-Grid power connector guide →
7
configurations
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
In stock (549)Color — Black
Length — 1.0 meter
In stock (147)Color — Red
Length — 1.0 meter

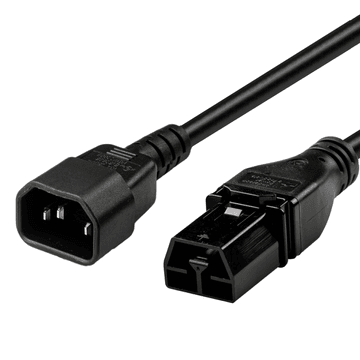

About IEC320 C14 to Anderson Saf-D-Grid 400V Power Cables
Superior Power Density of the Anderson Saf-D-Grid to IEC320 C14
With power density becoming increasingly important as data center equipment becomes more capable and hungrier for power, Anderson delivered a new spin on the standard data center power connection. The standard IEC 60320 plug and connector standards are limited to a voltage of 250 Volts. These Anderson Saf-D-Grid connectors are rated for up to 400V and are the same size as the IEC 60320 connector bodies.
Saf-D-Grid Cables General Usages
These power cables are generally used in Data Centers for powering Cisco, Nexus and Arista rack-mounted equipment like servers, switches and power supply units. The unique keying configuration prevents the connection of 400v to 300v and a short connection of male to male. The recessed power connection points are a substantial safety feature as they shield the connection point, effectively shrouding any potential arc during unplugging under load.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Plug · IEC 60320

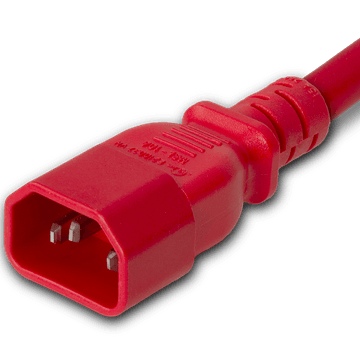

IEC 60320 C14
- 15 Amps
- 250 volts
On 7 of the cords here
The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 mates with a C13 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C14 is in a jumper cable scenario, providing power from a PDU to IT Equipment.
Mates with IEC 60320 C13 Outlet
Connector
Saf-D-Grid 400V (Connector)
- 16 Amps
- 400V
On 7 of the cords here
The Saf-D-Grid 400V Connector is rated for 400VAC and 16 Amps of power. It mates with the matching Saf-D-Grid 400V Inlet located on various data center equipment. This is the highest power rated connector for the footprint of an IEC 60320 connector.
Mates with Saf-D-Grid 400V Inlet
Spec sheets
About IEC320 C14 to Anderson Saf-D-Grid 400V Power Cables
These power cords are generally used to power switches, power supply units and routers in a data cabinet. These high power connectors have recently become increasingly popular because of their rigid connector body and superior material composition allowing for much higher power output in the same profile. The C14 plug can access power from a standard rack-mount PDU located in a typical data rack cabinet.
Current rating
15 Amps
Voltage rating
250 volts
Plug (male end)
IEC 60320 C14
Connector (female end)
Saf-D-Grid 400V (Connector)
Certifications & compliance
- UL
- RoHS
- REACH
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What certifications do these power cords carry?
- UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
- Do you require a minimum order quantity?
- No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
- Can I get a custom length or color?
- Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
- How fast does this ship?
- In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
