Red High Temp IEC320 C20 to IEC320 C21 20A 250V
Reference guide:IEC 60320 connector guide →
5
configurations
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
In stock (1,367)Color — Red
Length — 3 Feet

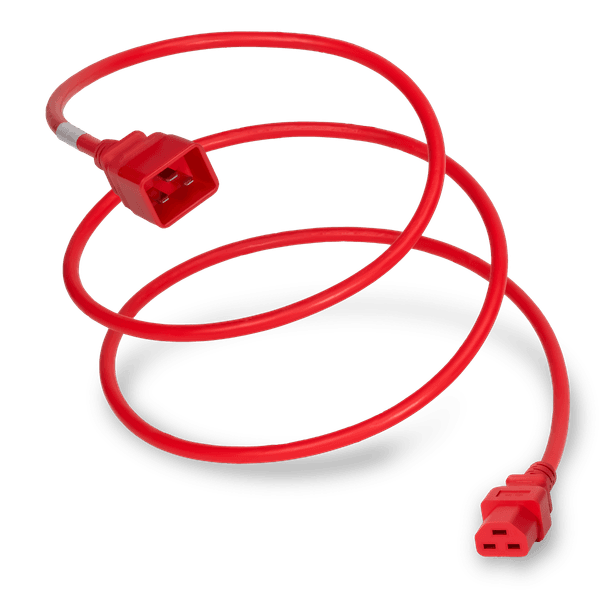

About Red High Temp IEC320 C20 to IEC320 C21 20A 250V
Red C20 to C21 Power Cords - 20A 250V
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Connector · IEC 60320
IEC 60320 C21
- 20 Amps
- 125/250V
On 5 of the cords here
The IEC 60320 C21 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C21 mates with a C22 or C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C21 is a HIGH TEMPERATURE version of the C19 connector, with a maximum pin temperature of 155°C instead of the standard 65°C ofa C19, and is typically used in high powered blade servers, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
Mates with IEC 60320 C22 Inlet
Plug · IEC 60320
IEC 60320 C20
- 20 Amps
- 250 volts
On 5 of the cords here
The IEC 60320 C20 is a grounded 3 Wire Plug rated up to 250V and 20 Amps. The C20 mates with a C19 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C20 is in a jumper cable scenario, providing power from a PDU to a blade server chassis, high powered server, large network router, or similar device.
Mates with IEC 60320 C19 Outlet
About Red High Temp IEC320 C20 to IEC320 C21 20A 250V
World Cord Sets supplies red high temp iec320 c20 to iec320 c21 20a 250v from our East Windsor, Connecticut headquarters, with manufacturing across US and overseas facilities. Cords are tested and certified to spec before shipment. We stock 5+ configurations and build custom cords to order — hand-terminated builds from in-stock components typically ship in 3–4 business days. In-stock orders placed by 2:30 PM ET ship the same day from our Connecticut warehouse.
Current rating
20 Amps
Voltage rating
250 volts
Plug (male end)
IEC 60320 C20
Connector (female end)
IEC 60320 C21
Certifications & compliance
- UL
- RoHS
- REACH
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What certifications do these power cords carry?
- UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
- Do you require a minimum order quantity?
- No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
- Can I get a custom length or color?
- Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
- How fast does this ship?
- In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
