SKU: 61513-H-012

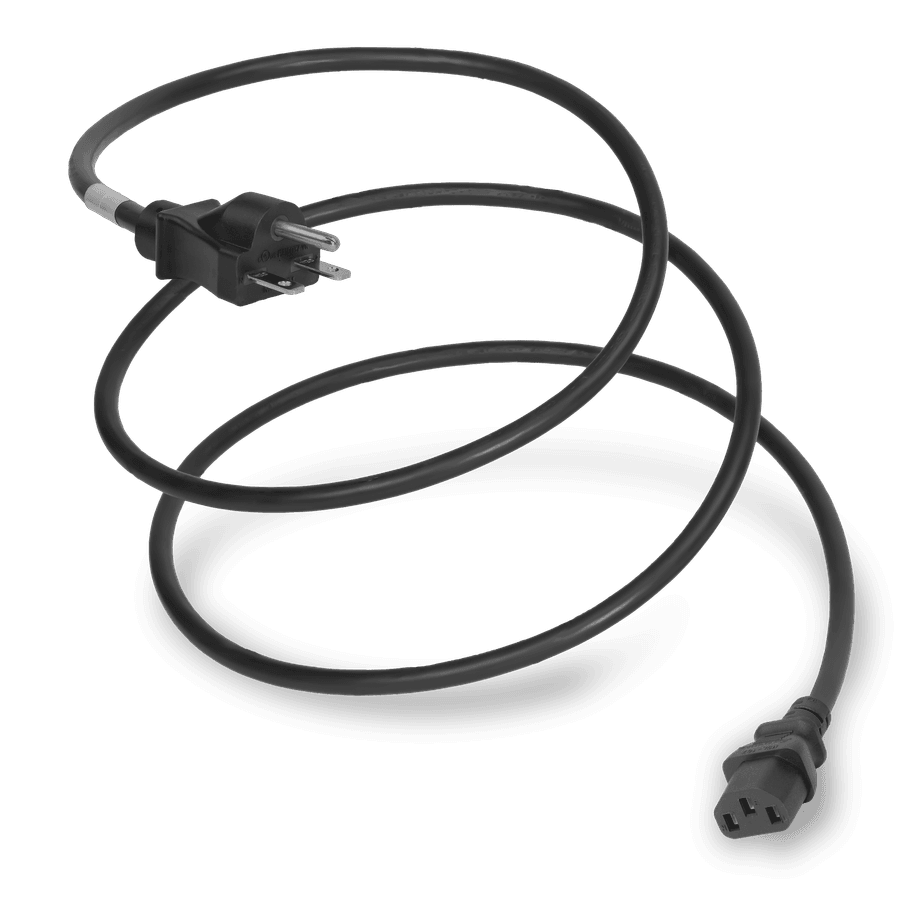

1FT Black Standard NEMA 6-15P to IEC320 C13 15A 250V
NEMA 6-15P to C13 15A 250V BLACK Power Cords
61513-H-012
Per unit · USD
In stock (523 available)
Order by 2:30 PM ET and it ships today.
Need a different length, gauge, or connector?Request a custom quote →
Volume pricing
| Quantity | Unit price | Savings |
|---|---|---|
| 1–99 | $3.92 | List price |
| 100–249 | $3.53 | Save 10% |
| 250–499 | $3.14 | Save 20% |
| 500+ | $2.74 | Save 30% |
Buying more than 500, or need a better price? Call (860) 763-2100 or e-mail sales@worldcordsets.com — we quote volume pricing every day.
B2B & OEM services
✓Volume pricing & NET terms — breaks start at 10 units
✓BOM partner for OEMs — we work from your spec sheet
✓Approvals expert — UL, CSA, CE, RoHS support available
Hi-pot tested
Every cord we build is hi-pot and continuity tested.
Engineering-led
In-house engineering and compliance set the procedures.
Ships same day
In-stock orders out of East Windsor, CT before 2:30 PM ET.
30-day returns
Plus lifetime workmanship warranty.
Certifications & Compliance
About this product
NEMA 6-15P
The NEMA 6-15P is a 3 Wire grounded plug featuring two blades and a ground pin, rated up to 250V AC and 15 Amps. The NEMA 6-15P has two, horizontal blades on the top of the plug spaced 23⁄32" center to center and a ground pin spaced between the two on the bottom of the plug.
IEC 60320 C13 Connector (Female)
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.
Typical Applications of NEMA 6-15P to IEC 60320 Power Cables
NEMA 6-15P to C13 power cables are used to connect a NEMA 6-15R outlet to a C14 inlet on a device such as a server. These are commonly used in bitcoin mining operations.
Specifications
| Plug (Male) | NEMA 6-15P |
| Connector (Female) | IEC 60320 C13 |
| Current (Amps) | 15 Amps |
| Voltage (Volts) | 250 volts |
| Cordage | 14awg-3c SJT |
| Length | 1 Foot |
| Color | Black |
| Certifications | RoHS |
| Approvals | UL |
Physical
| weight lbs | 0.2 |
- Download PDF
Spec sheet (PDF)
Specification sheet for this part number — opens the PDF, or lets you request a drawing from engineering when one is not on file yet
6 alternate configurations available in this product line:
61513-H-072
6FT Black Standard NEMA 6-15P to IEC320 C13 15A 250V
61513-H-098
8FT Black Standard NEMA 6-15P to IEC320 C13 15A 250V
61513-H-144
12FT Black Standard NEMA 6-15P to IEC320 C13 15A 250V
61513-H-036
3FT Black Standard NEMA 6-15P to IEC320 C13 15A 250V
61513-H-180
15FT Black Standard NEMA 6-15P to IEC320 C13 15A 250V
61513-H-120
10FT Black Standard NEMA 6-15P to IEC320 C13 15A 250V
Typical Application
Connects a NEMA 6-15P source to a C13 device inlet. Rated 15 Amps at 250 volts.
