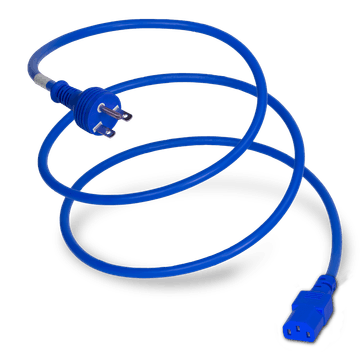

Standard NEMA 6-15P to IEC320 C13 15A 250V
Reference guide:IEC 60320 connector guide →
11
configurations
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
In stock (523)Color — Black
Length — 1 Foot
About Standard NEMA 6-15P to IEC320 C13 15A 250V
NEMA 6-15P to C13 is rated up to 15A and 250V (208V) Power Supply Cords are available in many STANDARD lengths. Standard jacket type is SJT(OW). Standard jacket color is BLACK. Standard wire gauge is 14AWG.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Connector · IEC 60320
IEC 60320 C13
- 15 Amps
- 125/250V
On 11 of the cords here
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.
Mates with IEC 60320 C14 Inlet
Plug · NEMA
NEMA 6-15P
- 15 Amps
- 250 volts
On 11 of the cords here
The NEMA 6-15P is a 3 Wire grounded plug featuring two blades and a ground pin, rated up to 250V AC and 15 Amps. The NEMA 6-15P has two, horizontal blades on the top of the plug spaced 23⁄32" center to center and a ground pin spaced between the two on the bottom of the plug.
Mates with NEMA 6-15R Outlet
About Standard NEMA 6-15P to IEC320 C13 15A 250V
General Information
NEMA 6-15P to C13 15 AMP 250V (208V) Power Supply Cords are available in many STANDARD lengths. Standard jacket type is SJT(OW). Standard jacket color is BLACK. A NEMA 6-15P mates with a NEMA 6-15R wall outlet or receptacle and 6-20R (t-slot). An IEC 60320 (320) C-13 mates with a C-14 INLET or PLUG. Other jacket types are available upon request: SVT, SPT, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW. LSZH (Low Smoke Zero Halogen) cords are available upon request. SJT-R jacket for heater applications is available upon request. Other colors available are white, gray, blue, green, red, yellow, orange.
Current rating
15 Amps
Voltage rating
250 volts
Plug (male end)
NEMA 6-15P
Connector (female end)
IEC 60320 C13
Certifications & compliance
- RoHS
- UL
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What certifications do these power cords carry?
- UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
- Do you require a minimum order quantity?
- No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
- Can I get a custom length or color?
- Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
- How fast does this ship?
- In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
