Black Adapter IEC320 C20 to NEMA L6-30R 20A 250V
Reference guide:Locking power cords guide →
1
configurations
About Black Adapter IEC320 C20 to NEMA L6-30R 20A 250V

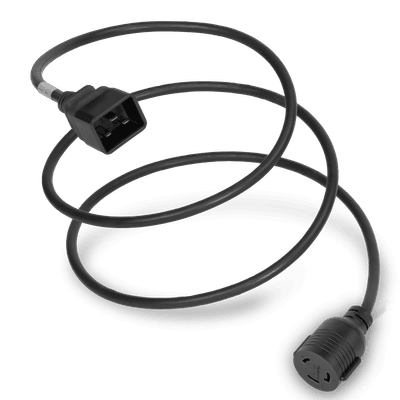

Black IEC 60320 C20 to NEMA L6-30R 250V 30A Locking Adapter Cords are designed to convert a C19 Outlet into a L6-30R Connector to be used with a NEMA L6-30P Plug that you need to power a device.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Plug · IEC 60320
IEC 60320 C20
- 20 Amps
- 250 volts
On 1 of the cords here
The IEC 60320 C20 is a grounded 3 Wire Plug rated up to 250V and 20 Amps. The C20 mates with a C19 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C20 is in a jumper cable scenario, providing power from a PDU to a blade server chassis, high powered server, large network router, or similar device.
Mates with IEC 60320 C19 Outlet
Connector
NEMA L6-30R
- 30 Amps
- 250 volts
On 1 of the cords here
The NEMA L6-30R (female) is a 3 Wire 3 Blade grounded device with hot-hot-ground wiring and is rated up to 250V AC and 30 Amps. This is a twist-lock device, insert the plug into the connector and turn. Locking cords are typically used in industrial applications to ensure that accidental power loss does not occur due to a loose connection.
Mates with NEMA L6-30P Inlet
About Black Adapter IEC320 C20 to NEMA L6-30R 20A 250V
World Cord Sets supplies black adapter iec320 c20 to nema l6-30r 20a 250v from our East Windsor, Connecticut headquarters, with manufacturing across US and overseas facilities. Cords are tested and certified to spec before shipment. We stock 1+ configurations and build custom cords to order — hand-terminated builds from in-stock components typically ship in 3–4 business days. In-stock orders placed by 2:30 PM ET ship the same day from our Connecticut warehouse.
Current rating
20 Amps
Voltage rating
250 volts
Plug (male end)
IEC 60320 C20
Connector (female end)
NEMA L6-30R
Certifications & compliance
- UL
- cUL
- RoHS
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What certifications do these power cords carry?
- UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
- Do you require a minimum order quantity?
- No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
- Can I get a custom length or color?
- Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
- How fast does this ship?
- In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
