NEMA 5-15P to OPEN (WHIPS PIGTAILS)
Reference guide:NEMA connector guide →
52
configurations
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
Made to orderColor — Black
Length — 1 Foot
- Made to order
Color — Black
Length — 1 Foot
- Made to order
Color — Black
Length — 1 Foot

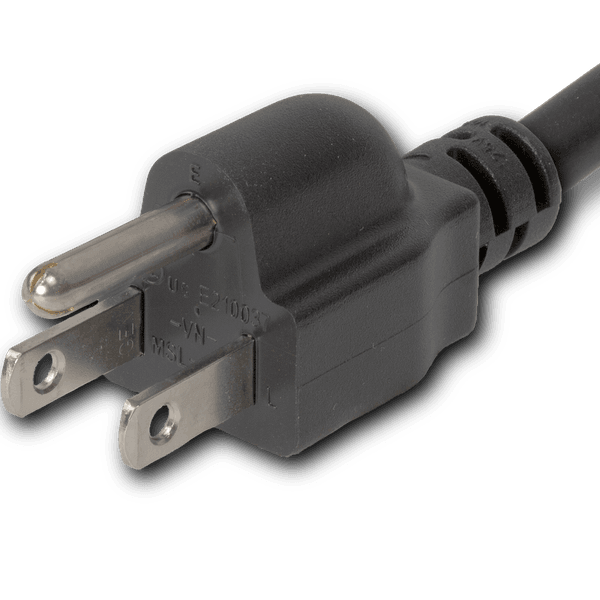

Made to orderColor — Black
Length — 2.0 meters
About NEMA 5-15P to OPEN (WHIPS PIGTAILS)
NEMA 5-15P to OPEN (WHIPS PIGTAILS). Can be supplied in 18awg(10A), 16awg(13A), and 14awg(15A) for 125 volt versions. Standard jacket is SJT but many possibilities exist like SVT, SJTOW, SJOW, STOW and many others. We offer colors in BLACK, GRAY, WHITE, BLUE, GREEN, RED, YELLOW, ORANGE, PURPLE or PINK. Standard Whips are Remove Outer Jacket(ROJ) 2" and then each conductor is stripped 1/4" to bare conductor. Other ROJ/Strip combinations are available for bulk quantities upon request.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Plug · NEMA
NEMA 5-15P
- 15 Amps
- 125 volts
On 51 of the cords here (98%)
The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations.
Mates with NEMA 5-15R Outlet
About NEMA 5-15P to OPEN (WHIPS PIGTAILS)
General Information
The NEMA 5-15P to Open/Whip/Pig Tail- NACC is a power supply cord rated for 125VAC and 15A max. NACC, North American Color Code, refers to the color code of the conductor insulation which is BLACK / WHITE / GREEN. This cord is for field installation to equipment or device that requires a line, neutral and ground conductor (not exceeding the rated power of the cord) to operate. Standard Whips are Remove Outer Jacket(ROJ) 2" and then each conductor is stripped 1/4" to bare conductor. Other ROJ/Strip combinations are available for bulk quantities upon request.
The NEMA 5 standard specifies three wire (hot-neutral-ground), two blade one ground pin, grounded devices. Never remove the ground pin to force a three prong plug to fit into a 2 prong outlet. (i.e don't make a 5-15 into a 1-15). Doing so will result in loss of ground and may result in loss of line/neutral polarity. The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations.
Current rating
10–15 Amps
Voltage rating
125 volts
Certifications & compliance
- RoHS
- UL
- cUL
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
