Dual-Locking Power Cord
95
configurations
Dual-Lock power cord functionality
The D-Lock is a dual locking power cord, meaning that both ends (male and female, plug and connector, line and load) feature locking technology. The plug end of the cable, that will connect to a power source utilizes the P-Lock plug type, available in IEC320 C14 and C20. This plug type will latch into place on Raritan, Server Tech, GELU and Emerson Vertiv PDUs and is not universally functional as a locking plug, as it needs a specific outlet faceplate style to latch into to engage the locking tabs. The connector features the universal locking S-Lock connector available in IEC320 C13, C15, and C19. This locking mechanism is universal, meaning it is not brand-specific and will mate and lock with any standard matching IEC 60320 Inlet. The lock is engaged by turning the gray rotary lock on the cable grip of the connector head.
Benefits of the Dual-Lock & secure power connections
The importance of secure power connections in critical systems cannot be understated. Data Center engineers spec in redundant power supplies, stand by UPS systems, and countless power-related systems to ensure the equipment that runs the internet will never cease to operate. If you consider the quantity of rackmount servers, switches and other equipment in the data center you begin to realize how many end-of-the-line power connections there are, and potential weak links in the power supply chain to the equipment. With thousands of these connection points, it is hard to ensure all of them are secure and will not become loosened during operation, or during maintenance of nearby equipment. Secure power connection points remove this insecurity and help create more continuity of thoroughness throughout the power supply chain to the rack mounted equipment.
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
Made to orderColor — Black
Length — 1 Foot
- Made to order
Color — Black
Length — 1 Foot
Made to orderColor — Black
Length — 1 Foot
In stock (62)Color — Black
Length — 3 Feet
Made to orderColor — Black
Length — 3 Feet
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Plug · IEC 60320
IEC 60320 C14 Locking (P-Lock)
- 15 Amps
- 125/250V
On 67 of the cords here (71%)
The IEC 60320 C14 P-Lock Plug is designed for use with ServerTech and Raritan data center PDUs. The locking tabs on each side prevent the plug head from nuisance unplugging by hooking into the PDU unit. The plug can easily be removed by pressing down on the tabs located on each side.
Mates with IEC 60320 C13 P-Lock Compatible PDU Outlet
Connector

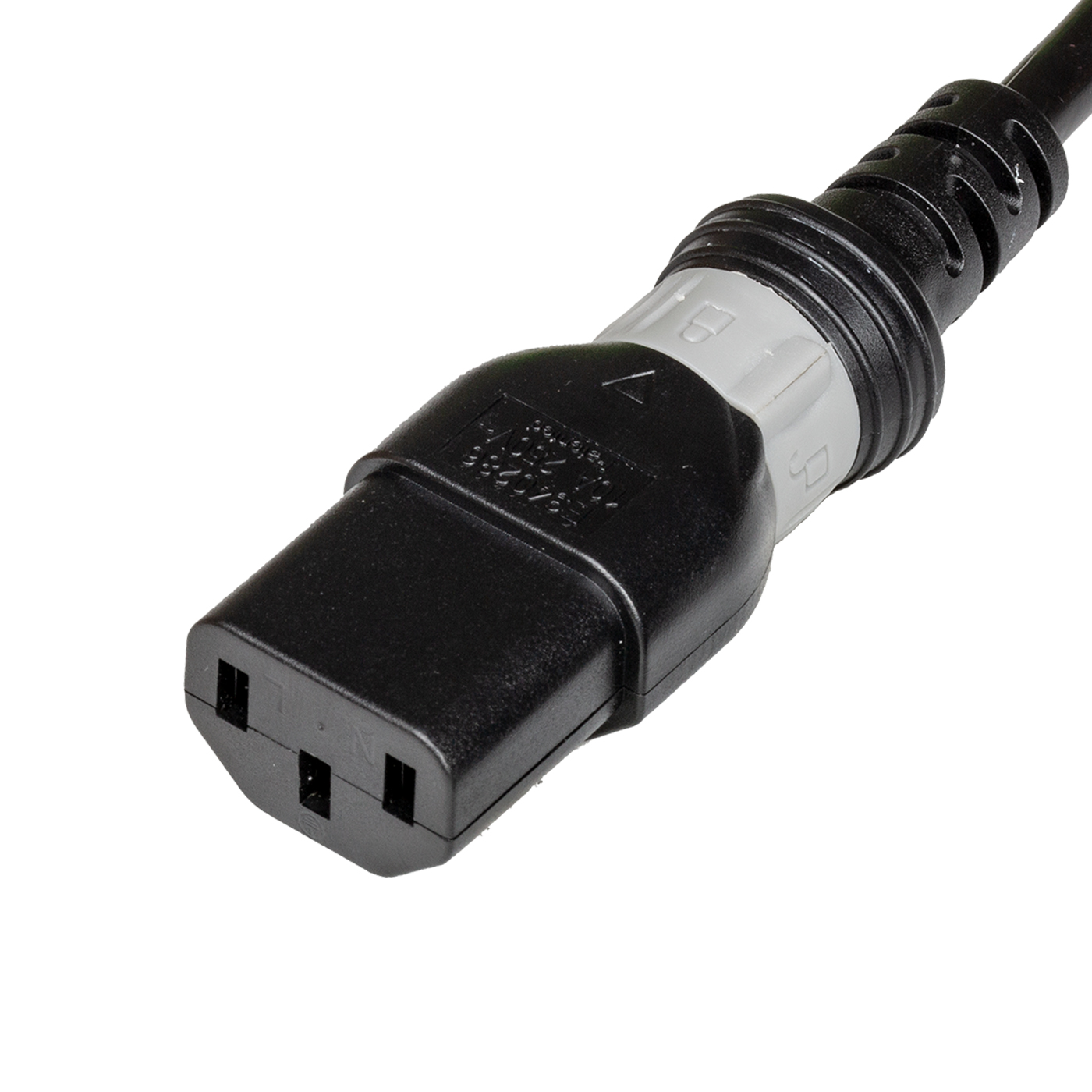

IEC 60320 C13 S-Lock (Universal Locking)
- 15 Amps
- 125/250V
On 61 of the cords here (64%)
The IEC 60320 C13 S-Lock Connector is rated for 250VAC and 15Amps, and is designed to mate with the matching IEC 60320 C14 Inlet and Plug type. The S-Lock is a revolutionary rotary lock that can internally pinch the pins of the inlet by twisting the locking mechanism on the connector body. This is a universal locking mechanism, meaning that it will mate with any standard matching inlet.
Mates with IEC 60320 C14 Inlet
Plug · IEC 60320
IEC 60320 C20 Locking (P-Lock)
- 20 Amps
- 125/250V
On 28 of the cords here (29%)
The IEC 60320 C20 P-Lock is rated for 20A and 250V and is specially made for connecting to ServerTech and Raritan Locking PDUs. The Plug locks into place by hooking into the plug outlet with the two tabs on each side of the Plug. The plug can easily be removed by pushing down on both tabs of the plug.
Mates with IEC 60320 C19 P-Lock Compatible PDU Outlet
Connector
IEC 60320 C19 S-Lock (Universal Locking)
- 20 Amps
- 125/250V
On 25 of the cords here (26%)
The IEC 60320 C19 S-Lock Connector is rated for 250VAC and 20Amps, and is designed to mate with the matching IEC 60320 C20 Inlet and Plug type. The S-Lock is a revolutionary rotary lock that can internally pinch the pins of the inlet by twisting the locking mechanism on the connector body. This is a universal locking mechanism, meaning that it will mate with any standard matching inlet.
Mates with IEC 60320 C20 Inlet
- S-Lock C15
Connector
S-Lock C15
- 15 Amps
- 250 volts
On 9 of the cords here (9%)
The IEC 60320 C15 S-Lock Connector is rated for 250VAC and 15Amps, and is designed to mate with the matching IEC 60320 C16 Inlet and Plug type. The C15 is a high temperature connector, and is rated for operating under temperatures up to 120C. The S-Lock is a revolutionary rotary lock that can internally pinch the pins of the inlet by twisting the locking mechanism on the connector body. This is a universal locking mechanism, meaning that it will mate with any standard matching inlet.
Mates with IEC 60320 C16 Inlet
About Dual-Locking Power Cord
The Dual Lock Power Cables are a newly released product series that feature the standard P-Lock plug type, and the newly introduced Rotary-Style Universal Locking IEC 60320 Connector. This connector type will mate and lock with any matching IEC320 Inlet. It functions by twisting the grey rotary swivel located near the cable grip on the plug head. This will internally pinch and un-pinch the pins of the mating inlet, effectively locking it into place. These power cables are used in Data Centers primarily, as they feature state of the art technology on standard IEC 60320 extension cables which is generally justified for only critical systems of a Data Center.
Current rating
10–20 Amps
Voltage rating
250 volts
Certifications & compliance
- cUL
- UL
- RoHS
- REACH
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What certifications do these power cords carry?
- UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
- Do you require a minimum order quantity?
- No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
- Can I get a custom length or color?
- Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
- How fast does this ship?
- In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
