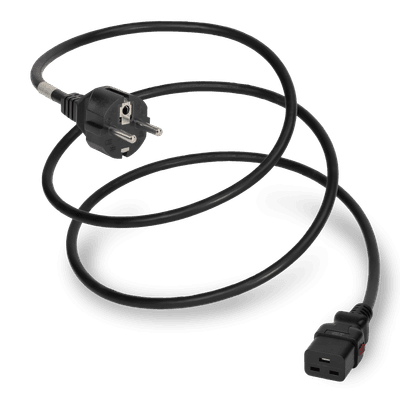

Europe Schuko CEE7/7 to Auto Lock IEC 60320 C19 Power Cords
Reference guide:Locking power cords guide →
1
configurations
About Europe Schuko CEE7/7 to Auto Lock IEC 60320 C19 Power Cords
European Schuko CEE7/7 to IEC 60320 C19 Power Cords are designed to provide power to a larger IT device/equipment from a standard European Schuko wall outlet. The various angled and locking options we offer, are solutions designed to improve installation and solve common day to day problems with connection.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Connector
IEC 60320 C19 Locking (A-Lock)
- 20 Amps
- 125/250V
On 1 of the cords here
The IEC 60320 C19 Locking Connector is rated for 20 Amps and 250VAC. It is a grounded connector type, with the A-Lock feature for latching the connector in place once it is mated. The A-Lock is a universal locking mechanism that internally pinches the pins of the male/inlet that it connects with. This effectively holds the connector in place until the user pinches and pulls back the two red tabs located on either side of the connector body.
Mates with IEC 60320 C20 Inlet
Plug · International
European Schuko CEE7/7 - Straight
- 16 Amps
- 250 volts
On 1 of the cords here
The plug (MALE) is a Type F Schuko CEE7/7. It fits both E (France) and F (European / Germany) type outlets (sockets). Available in straight or down/up angle orientation. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground.
Mates with Schuko CEE7/7 Outlet
About Europe Schuko CEE7/7 to Auto Lock IEC 60320 C19 Power Cords
World Cord Sets supplies europe schuko cee7/7 to auto lock iec 60320 c19 power cords from our East Windsor, Connecticut headquarters, with manufacturing across US and overseas facilities. Cords are tested and certified to spec before shipment. We stock 1+ configurations and build custom cords to order — hand-terminated builds from in-stock components typically ship in 3–4 business days. In-stock orders placed by 2:30 PM ET ship the same day from our Connecticut warehouse.
Current rating
16 Amps
Voltage rating
250 volts
Plug (male end)
European Schuko CEE7/7 - Straight
Connector (female end)
IEC 60320 C19 Locking (A-Lock)
Certifications & compliance
- VDE
- RoHS
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What certifications do these power cords carry?
- UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
- Do you require a minimum order quantity?
- No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
- Can I get a custom length or color?
- Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
- How fast does this ship?
- In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
