Hard Wire Electrical Pigtail to IEC320 Connector | Hard Wire to Connector Cables
Reference guide:IEC 60320 connector guide →
72
configurations
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
Made to orderColor — Black
Length — 1 Foot
Made to orderColor — Black
Length — 1 Foot
Made to orderColor — Black
Length — 1 Foot
- Made to order
Color — Black
Length — 1 Foot
- Made to order
Color — Black
Length — 2 Feet
Made to orderColor — Black
Length — 5 Feet
- Made to order
About Hard Wire Electrical Pigtail to IEC320 Connector
IEC320 connector electrical hard wire pigtails.
These power cables are made to order from our extensive stock of molded power cables. We have a dedicated staff that are trained with our state-of-the-art ROJ, Conductor Stripping and Testing Machines to provide a low cost, and significantly reduced lead time for custom made IEC320 Plug to Open Electrical Pigtails. If you cannot find the specific product you are looking for online, or require a custom length please reach out to our sales team for a quote from a real human that will provide customer service without over solicitation.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Connector · IEC 60320

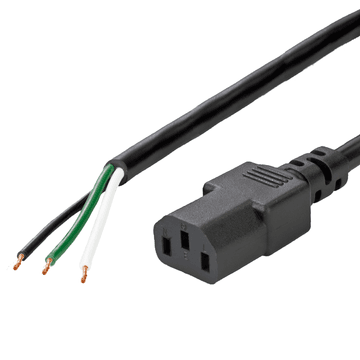

IEC 60320 C13
- 15 Amps
- 125/250V
On 46 of the cords here (64%)
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.
Mates with IEC 60320 C14 Inlet
Connector · IEC 60320

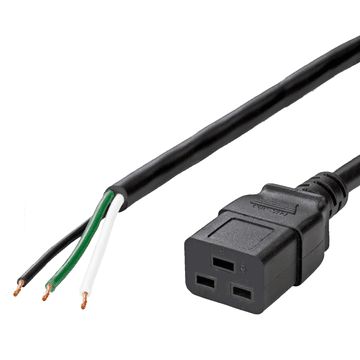

IEC 60320 C19
- 20 Amps
- 125/250V
On 15 of the cords here (21%)
The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
Mates with IEC 60320 C20 Inlet
Connector · IEC 60320

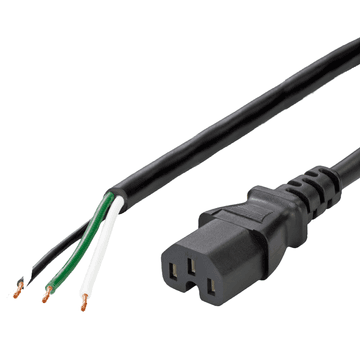

IEC 60320 C15
- 15 Amps
- 125/250V
On 11 of the cords here (15%)
The IEC 320 C15 Power cable is used to power electrical devices that emit so much heat (intentionally or unintentionally) that they require a power connection that can withstand more than the 70 °C (158 °F) temperature rating of the standard C13. In combination with the C14 plug type, the use cases of this high-temperature cable are almost exclusively data center environments. This cable would most likely be found supplying a High-Powered Switch power from a rack-mounted PDU power supply source. If your equipment has a IEC320 C16 Inlet it should only be mated with the matching C15-Power Connector.
Mates with IEC 60320 C16 Inlet
About Hard Wire Electrical Pigtail to IEC320 Connector | Hard Wire to Connector Cables
The IEC320 Connector to Open End Power Whips are generally used to hardwire a power source into a junction box to supply power to a matching IEC320 Plug to power your equipment. This product line is highly customizable, and we cannot list every possible combination as a listed product.
Current rating
10–20 Amps
Voltage rating
250 volts
Certifications & compliance
- UL
- cUL
- RoHS
- VDE
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What certifications do these power cords carry?
- UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
- Do you require a minimum order quantity?
- No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
- Can I get a custom length or color?
- Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
- How fast does this ship?
- In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
