NEMA Connector to Hard Wire Electrical Pigtail Cables | North American Power Supply
Reference guide:NEMA connector guide →
109
configurations
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
Made to orderColor — Black
Length — 1 Foot
Made to orderColor — Black
Length — 1 Foot
Made to orderColor — Black
Length — 1 Foot
Made to orderColor — Black
Length — 1 Foot
Made to orderColor — Black
Length — 1 Foot
Made to orderColor — Black
Length — 1 Foot
Made to orderColor — Black
Length — 1 Foot
Made to orderColor — Black
Length — 1 Foot
About NEMA Connector to Hard Wire Electrical Pigtail Cables
Low cost NEMA equipment electrical power supply pigtails.
These power cables are made to order from our extensive selection of molded power cable configurations in stock. Our in-house staff is trained with our state-of-the-art ROJ, conductor stripping and testing machine, delivering quality products that are made to order in significantly shorter lead times and prices than our competition.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Connector
NEMA 6-15R
- 15 Amps
- 250 volts
On 16 of the cords here (15%)
The NEMA 6-15R Connector (Female) is rated for 250VAC and 15 Amperes, and is used in North America under the NEMA set of standards. The connector type is commonly used in commercial and industrial settings to supply power to smaller electrical motors and equipment.
Mates with NEMA 6-15P Inlet
Connector
NEMA 5-20R
- 20 Amps
- 125 volts
On 15 of the cords here (14%)
The NEMA 5-20R connector is used to mate
Mates with NEMA 5-20P Inlet
Connector
NEMA L6-20R
- 20 Amps
- 250 volts
On 15 of the cords here (14%)
The NEMA L6-20 Connector is rated for 250V and 20A. It is wired as HOT-HOT-GROUND, meaning this connector does not have a neutral conductor. L6-20 and L6-30 connectors are commonly found on in-rack power distribution units in applications where the main supply voltage is greater than 120 V. The locking capability and high power output also makes these connectors common in industrial settings for powering large equipment.
Mates with NEMA L6-20P Inlet
Connector
NEMA L6-30R
- 30 Amps
- 250 volts
On 15 of the cords here (14%)
The NEMA L6-30R (female) is a 3 Wire 3 Blade grounded device with hot-hot-ground wiring and is rated up to 250V AC and 30 Amps. This is a twist-lock device, insert the plug into the connector and turn. Locking cords are typically used in industrial applications to ensure that accidental power loss does not occur due to a loose connection.
Mates with NEMA L6-30P Inlet
Connector

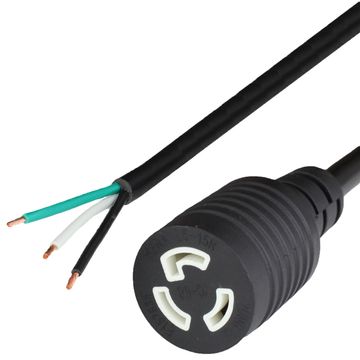

NEMA L5-15R
- 15 Amps
- 125 volts
On 12 of the cords here (11%)
The NEMA L5-15R is a twist-locking NEMA connector that is rated for 125VAC and 15 Amps of power in North America. The Twist Lock configuration can lock into place by twisting the plug and connector after mating. This is an effective solution for high-traffic areas and powering equipment like electrical motors that should not be unplugged under load.
Mates with NEMA L5-15P Inlet
About NEMA Connector to Hard Wire Electrical Pigtail Cables | North American Power Supply
Provide Power to your equipment from a junction box, or current carrying conductors by utilizing a custom-made power supply whip. These cables have a NEMA Connector and exposed conductors that are intended to be wired into a power source by a trained professional. We offer this series in many lengths, configurations and colors. Our standard Pigtail is a 2” Removal of Outer Jacket (ROJ) and ¼" conductor strip for testing purposes, but we can alter these lengths upon request.
Current rating
15–30 Amps
Voltage rating
125–250 volts
Certifications & compliance
- UL
- cUL
- RoHS
- REACH
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What certifications do these power cords carry?
- UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
- Do you require a minimum order quantity?
- No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
- Can I get a custom length or color?
- Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
- How fast does this ship?
- In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
