World Cord Sets

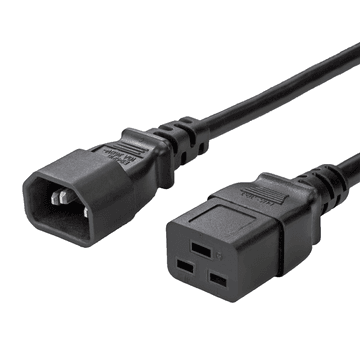

IEC 60320 C14 C19 Power Cords

15 Amps250 voltsC14RoHSREACHULcUL

Reference guide:IEC 60320 connector guide →

100

configurations

Does the c14 to c19 cable adapt the voltage or amperage?

No. Both the plug and connector are rated for 120-250 Volts, and the connector is rated for 5 more Amperes than the plug. This does not mean that they will “convert” or “adapt” the power, that can only be done by a transformer. What this cable can do is allow the powering of a “Heavy Duty” IT Cable (C20) to access power from a “Medium Duty” IT Power Source (C13).

Common applications for the c14 to c19 adapter cable.

The IEC-320-C14 to IEC-320-C19 power cords are used when a common iec extension cable will not work. In the event of retro fitting newer equipment to an existing PDU, or vise versa and maybe even a unique piece of equipment in your data rack you will need one of these IEC320 adapter extensions. For example, if you have a Rackmount PDU with only C13 Outlets available and 3 out of four pieces of equipment use a C14 inlet, but one has a C20 Inlet this would be a perfect match! The same applies for the C20 to C13 power cable, with the power source and equipment inlet reversed.

What options are available for the C14 to c19 power cords?

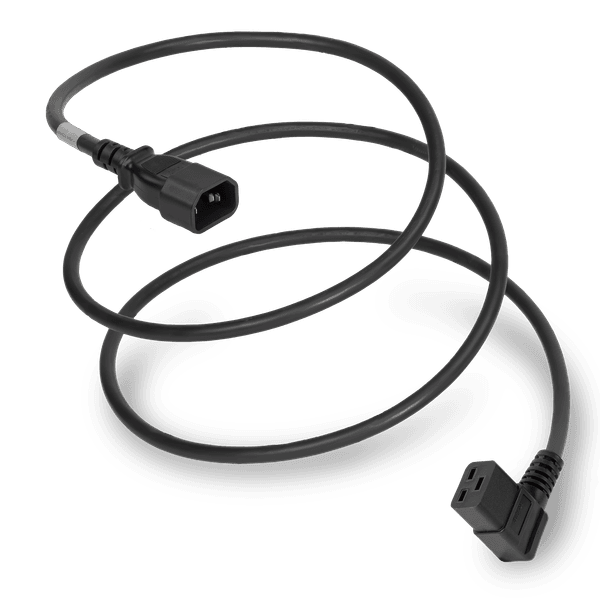

We stock these cables in many lengths and colors under our standard 14awg-3c SJT product line, perfect for identifying redundant power supplies or conforming to in-house color denominations. We also stock several locking variations for a more secure power connection, and angled connectors options for applications where space is limited.

Related collectionsC20/C21 19IEC 60320 C14 C13 Power Cords 453IEC 60320 C14 C15 Power Cords 177C14/C21 4C14/C5 27C14/C7 8C20/C13 101C20/C15 25C20/C19 177

Not sure which cord you need?

Answer a few quick questions and we’ll narrow it down for you.

Match by picture

The plugs and connectors in this collection

What each end is, what it mates with, and where to find every cord built on it.

  • IEC 60320 C14 plug

    Plug · IEC 60320

    IEC 60320 C14

    • 15 Amps
    • 250 volts

    On 100 of the cords here

    The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 mates with a C13 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C14 is in a jumper cable scenario, providing power from a PDU to IT Equipment.

    Mates with IEC 60320 C13 Outlet

    Shop all IEC 60320 C14 C13 Power Cords →
  • IEC 60320 C19 connector

    Connector · IEC 60320

    IEC 60320 C19

    • 20 Amps
    • 125/250V

    On 97 of the cords here (97%)

    The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.

    Mates with IEC 60320 C20 Inlet

    Shop all IEC 60320 C20 C19 Power Cords →

About IEC 60320 C14 C19 Power Cords

The IEC-320-C14 to IEC-320-C19 power cords are used when a common iec extension cable will not work. In the event of retro fitting newer equipment to an existing PDU, or vise versa and maybe even a unique piece of equipment in your data rack you will need one of these IEC320 adapter extensions. For example, if you have a Rackmount PDU with only C13 Outlets available and 3 out of four pieces of equipment use a C14 inlet, but one has a C20 Inlet this would be a perfect match! The same applies for the C20 to C13 power cable, with the power source and equipment inlet reversed.

General Information about C14 C19 Power Cord Sets

C14 to C19 Power Cord Sets are used to connect a C13 outlet typically found on a PDU (Power Distribution Unit) to a C20 inlet commonly found on IT equipment. The standard gauge wire used in C14 to C19 jumper cords is 14awg. Standard jacket type is SJT (Service Junior Thermoplastic), however, we can offer these cord sets with other jackets with a short lead time.

Not sure if this is the right cord? Contact us for assistance.

Current rating

15 Amps

Voltage rating

250 volts

Plug (male end)

IEC 60320 C14

Certifications & compliance

  • RoHS
  • REACH
  • UL
  • cUL
  • Every cord we build is hi-pot tested
  • Same-day shipping by 2:30 PM ET
  • NET 30/60/90 for approved accounts
  • In-house engineering and compliance support

Frequently asked questions

What certifications do these power cords carry?
UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
Do you require a minimum order quantity?
No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
Can I get a custom length or color?
Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
How fast does this ship?
In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
