SKU: 2019L-J-024

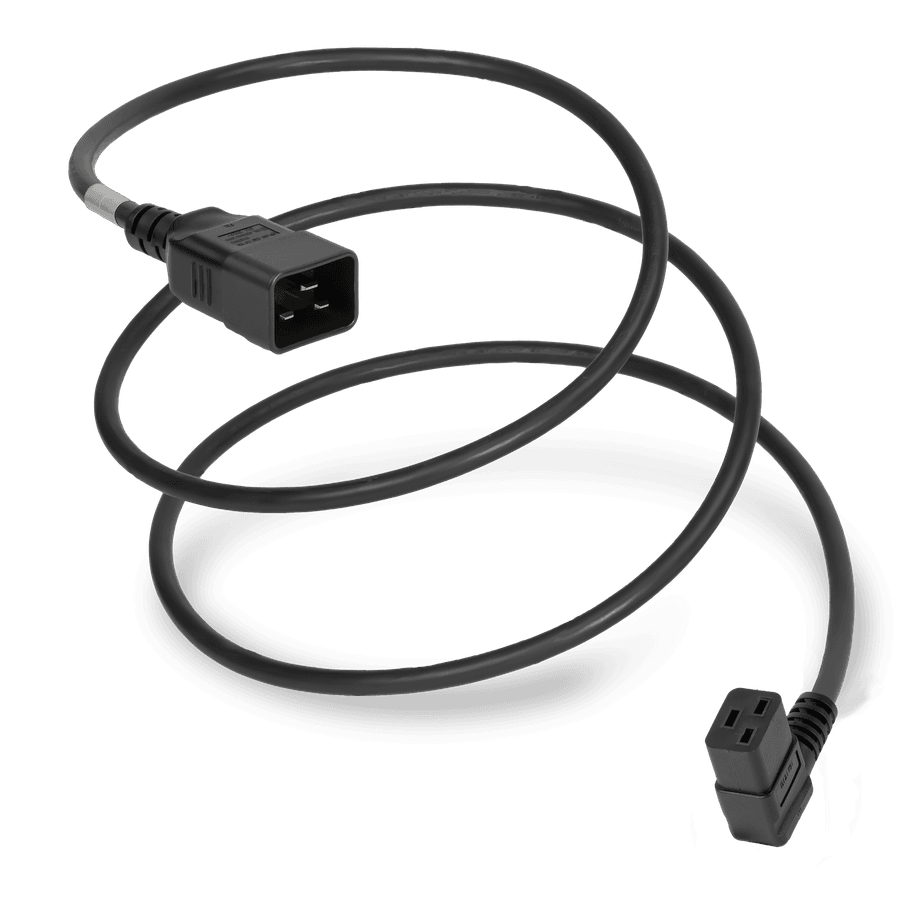

2FT Black Standard IEC320 C20 to IEC320 C19 Left Angle 20A 250V
Black 20A C20 C19 LEFT ANGLE Power Cords
2019L-J-024
Per unit · USD
Made to order
Need a different length, gauge, or connector?Request a custom quote →
Currently out of stock
Get notified the moment 2FT Black Standard IEC320 C20 to IEC320 C19 Left Angle 20A 250V is back.
One email when restocked. No marketing — unsubscribe link included.
Volume pricing
| Quantity | Unit price | Savings |
|---|---|---|
| 1–99 | $16.15 | List price |
| 100–249 | $14.53 | Save 10% |
| 250–499 | $12.92 | Save 20% |
| 500+ | $11.30 | Save 30% |
Buying more than 500, or need a better price? Call (860) 763-2100 or e-mail sales@worldcordsets.com — we quote volume pricing every day.
B2B & OEM services
✓Volume pricing & NET terms — breaks start at 10 units
✓BOM partner for OEMs — we work from your spec sheet
✓Approvals expert — UL, CSA, CE, RoHS support available
Hi-pot tested
Every cord we build is hi-pot and continuity tested.
Engineering-led
In-house engineering and compliance set the procedures.
Ships same day
In-stock orders out of East Windsor, CT before 2:30 PM ET.
30-day returns
Plus lifetime workmanship warranty.
Certifications & Compliance
About this product
IEC60320 C20 to C19 LEFT ANGLE 20A 250VPower Cords - BLACK.
IEC 60320 C20 CONNECTOR (MALE): The IEC 60320 C20 is a grounded 3 Wire Plug rated up to 250V and 20 Amps. The C20 mates with a C19 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C20 is in a jumper cable scenario, providing power from a PDU to a blade server chassis, high powered server, large network router, or similar device. IEC 60320 C19 CONNECTOR (FEMALE): The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
Specifications
| Plug (Male) | IEC 60320 C20 |
| Connector (Female) | IEC 60320 C19 Left Angle |
| Current (Amps) | 20 Amps |
| Voltage (Volts) | 250 volts |
| Cordage | 12awg-3c SJT |
| Length | 2 Feet |
| Color | Black |
| Certifications | RoHS |
| Approvals | UL, cUL |
Physical
| weight lbs | 0.53 |
- Download PDF
Spec sheet (PDF)
Specification sheet for this part number — opens the PDF, or lets you request a drawing from engineering when one is not on file yet
5 alternate configurations available in this product line:
2019L-J-096
8FT Black Standard IEC320 C20 to IEC320 C19 Left Angle 20A 250V
2019L-J-036
3FT Black Standard IEC320 C20 to IEC320 C19 Left Angle 20A 250V
2019L-J-048
4FT Black Standard IEC320 C20 to IEC320 C19 Left Angle 20A 250V
2019L-J-144
12FT Black Standard IEC320 C20 to IEC320 C19 Left Angle 20A 250V
2019L-J-180
15FT Black Standard IEC320 C20 to IEC320 C19 Left Angle 20A 250V
Typical Application
Connects a C20 source to a C19 Left Angle device inlet. Rated 20 Amps at 250 volts.
Where can this cord be used?
Approved for use in
2 countriesOur commitment: In-stock cords ship the same day when ordered by 2:30 PM ET. If it doesn't meet spec, we replace it and pay return shipping. Questions during installation? Same number as sales — a real engineer picks up.
